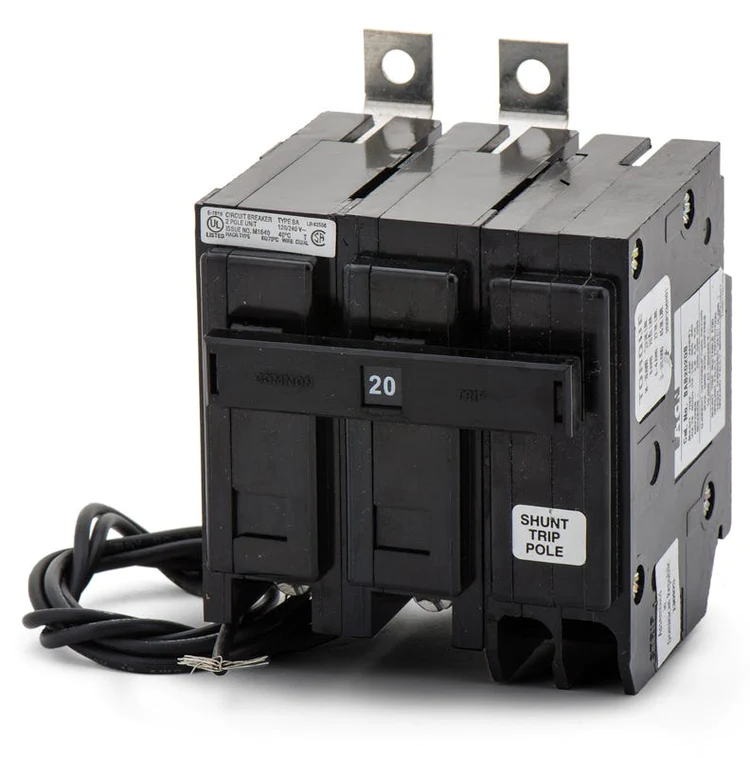

Eaton / Cutler-Hammer Shunt Trip Breaker Its Compact And Easy to Install two poles thermal-magnetic circuit breaker has a current rating of 20 amps at 40 deg c and voltage rating of 120/240Vac it has an an interrupt current rating of 10000 amps with 120/208/240 Vac shunt trip it accommodates aluminum/copper wire of size 14 – 4 AWG and is suitable for industrial applications breaker is Ul 489 listed and Csa certified.

Specifications:

• Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
• Product Length: 3.8 in
• Product Height: 4.9 in
• Product Width: 3.2 in
• Product Weight: .85 lb
• Certifications: UL Listed , CSA Certified
• Catalog Notes: HACR rated
• Mounting: Bolt-on
• Special Features: 120V, 208V, 240V shunt trip
• Interrupt Rating: 10 kAIC
• Type: Quicklag
• Circuit Breaker Type: BAB
• Quantity: Q7
• Voltage Rating: 120/240V
• Amperage Rating: 20A
• Trip Type: Non-Interchangeable
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 4.9″ x 3.2″ x 3.8″
