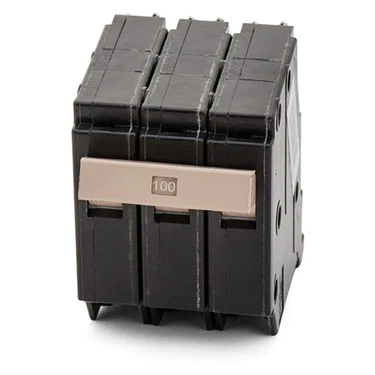

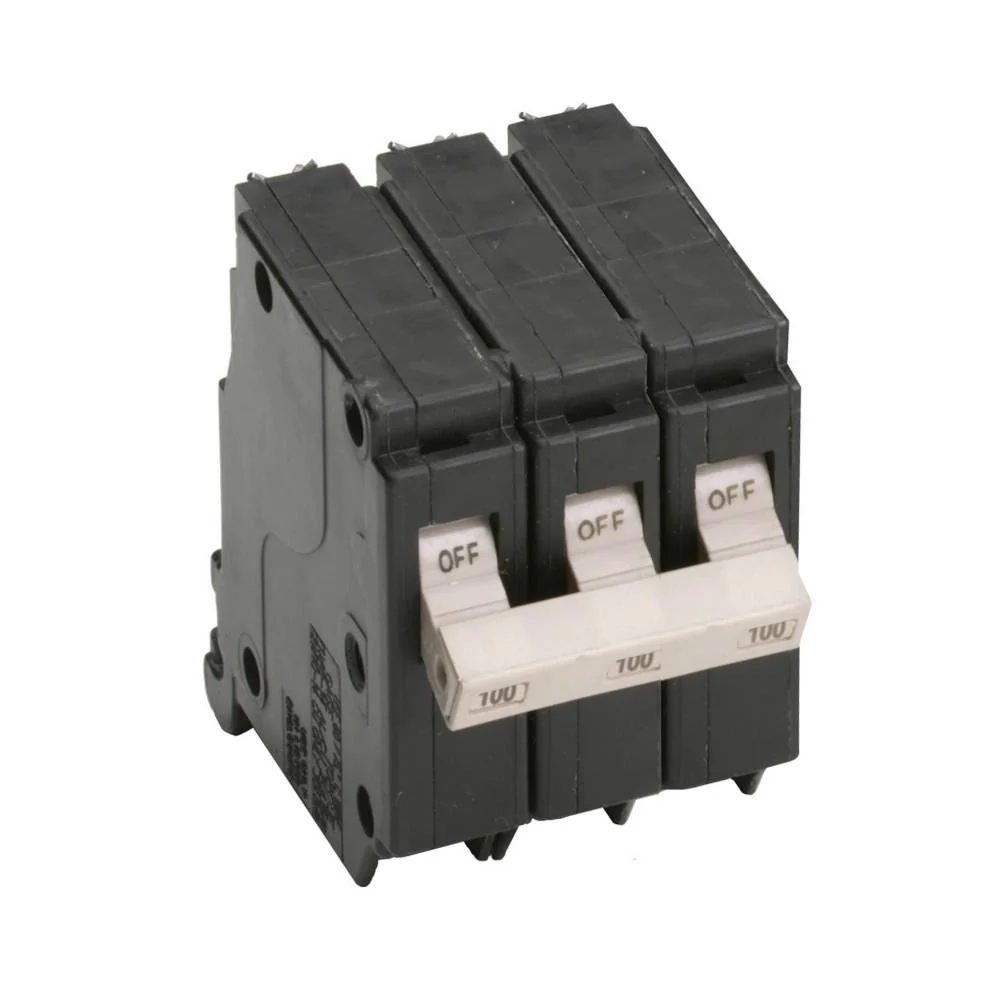

CH3100 – Eaton Cutler-Hammer Plug-In Circuit Breaker

Eaton / Cutler-Hammer Plug-On Circuit Breaker Its Compact And Easy to Install three pole circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 100 amps and voltage rating of 240 Vac it is a common trip breaker that has AIC rating of 10000 amps and accommodates copper/aluminum wire of size 10 to 1/0 AWG circuit breaker is Ul 489 listed and Csa certified.

Specifications:

• Product Name: Eaton Type CH 3/4-inch Standard Circuit Breaker
• Product Length: 3.5 IN
• Product Height: 2.25 IN
• Product Width: 3.5 IN
• Product Weight: .89 LB
• Certifications: UL 489
• Catalog Notes: Three-Pole 240V Common Trip Requires Three 3/4-Inch Spaces
• Interrupt Rating: 10 kAIC
• Type: Type CH 3/4-inch Standard Circuit Breaker
• Wire Size: #10-1/0 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 240V
• Amperage Rating: 100A
• Trip Type: Common
• Number Of Poles: Three-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 2.25″ x 3.5″ x 3.5″
• 3 phase
