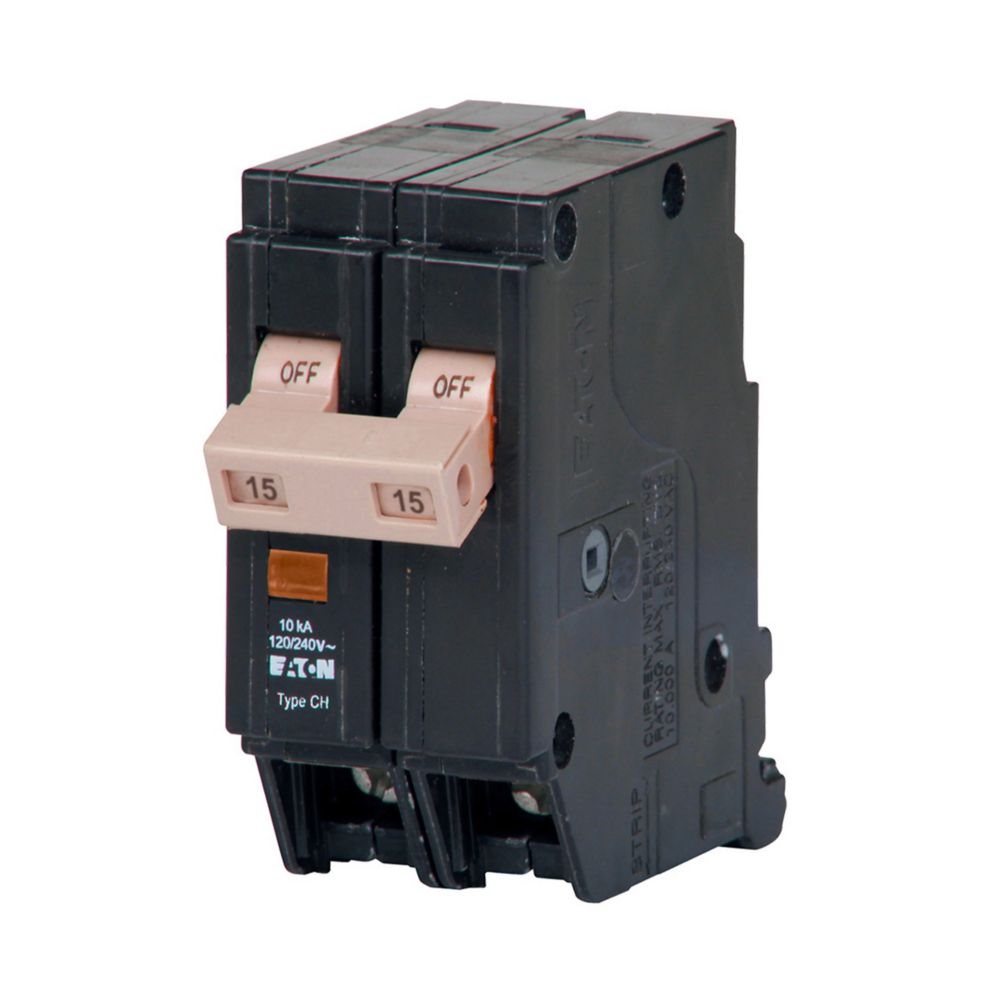

CHF215 – Eaton Cutler-Hammer Plug-In Circuit Breaker

Cutler Hammer CHF series double pole 15 ampere plug-in molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with non-interchangeable trip (LI) long-time and instantaneous trip functions with mechanical trip flag.

Specifications:

• Product Name: Type CHF 3/4-inch Standard Circuit Breaker
• Product Length: 3 IN
• Product Height: 3.5 IN
• Product Width: 1.5 IN
• Product Weight: .57 LB
• Certifications: UL 489
• Catalog Notes: HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
• Interrupt Rating: 10 kAIC
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Used With: Type CH Loadcenters
• Main Circuit Breaker: CH
• Voltage Rating: 120/240V
• Amperage Rating: 15A
• Trip Type: Common
• Number Of Poles: Two-pole
• Authentic Eaton/Cutler-Hammer Product
• Dimensions (H x W x L): 3.5″ x 1.5″ x 3″
