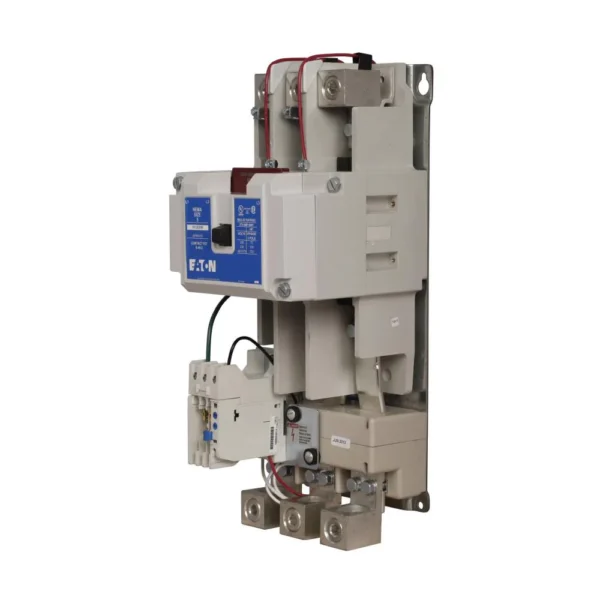

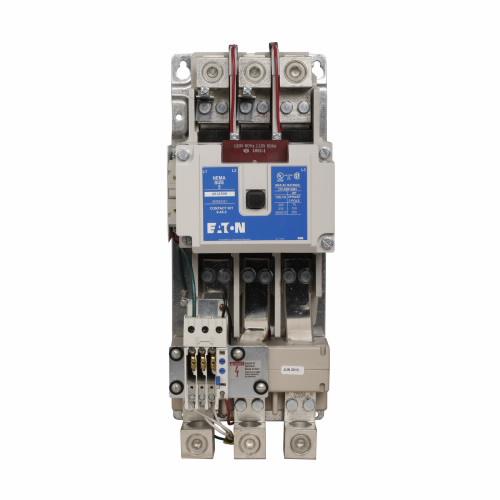

Eaton Freedom NEMA motor control starter NEMA Freedom Series Non-Reversing Reset Overload Relay Starter 75 hp at 208V 100 hp at 240V 200 hp at 480600V maximum horsepower 120V/60 Hz or 110V/50 Hz coil voltage 270A Three-pole Size 5
$3,099.99
| Type | Full Voltage- Non-Reversing |
| Power Rating/Voltage | 75 HP at 208 Volt- 100 HP at 240 Volt- 150 HP at 380 Volt- 200 HP at 480/600 Volt 3-Phase |
| Current Rating | 270 Amp |
| Phase | 3 |
| Coil Voltage | 110 Volt AC at 50 Hertz- 120 Volt AC at 60 Hertz |
| Auxiliary Contact | 1NO |
| Size | NEMA 5 |
| Enclosure Type | Open |
| Overloads | Bi-Metallic Ambient Compensated Overload Relay |
| Construction Standard | NEMA |
| Model | Freedom- AN16 |
| Additional Information | Number of Poles 3- Mounting Type Horizontal- Approval UL- CSA |
| Features/Benefits | Horizontal or Vertical Mounting on Upright Panel for Application Freedom- Screw Type Power Terminals have Captive- Backed-Out Self-Lifting Pressure Plates with Screws—Reduced Wiring Time- Accessible Terminals for Easy Wiring. Optional Fingerproof Shields Available to Prevent Electrical Shock- Top Located Coil Terminals Convenient and Readily Accessible. 45 MM Contactor Magnet Coils have Three Terminals- Permitting Either Top or Diagonal Wiring—Easy to Replace European or U.S. Style Starters or Contactors without Changing Wiring Layout- Easy Coil Change and Inspectable/Replaceable Contacts |
