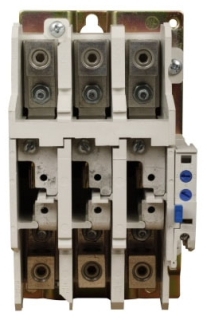

The Eaton C306KN3 is a 3 Pole overload relay with a current rating of 100-149 Amps and a voltage rating of 600VAC. It features with C306 frame type. The C306KN3 has a panel mounting type and it is used for industrial facilities and factories applications.
$274.99
| Type | Adjustable Trip Class- Thermal- Bi-Metallic |
| Motor FLA | 105 Ampere |
| Number of Poles | 3 |
| Trip Class | Class 10- Class 20 |
| NEMA Size | 3 |
| IEC Size | L to M |
| Reset Type | Automatic/Manual |
| Ambient Temperature | Compensated |
| Auxiliary Contact | 1No-1Nc |
| Contact Rating | 600 VAC 5 Ampere (NC)- 600 VAC 2.5 Ampere (NO) |
| Terminal Type | Line Lug- Load Lug |
| Mounting | Panel |
| Enclosure | Open |
| Approval | UL- CSA- CE |
| Model | Freedom- C306 |
| Additional Information | Used With CE/CN Non-Reversing- Reversing Contactors |
| Features/Benefits | Selectable Manual or Automatic Reset Operation- Class 10 or 20 Heater Packs- Load Lugs Built into Relay Base- Bimetallic- Ambient Compensated Operated- Trip Free Mechanism- Electrically Isolated NO-NC Contacts (Pull Reset button to Test)- Overload Trip Indication- Shrouded or Fingerproof Terminals to Reduce Possibility of Electrical Shock |
