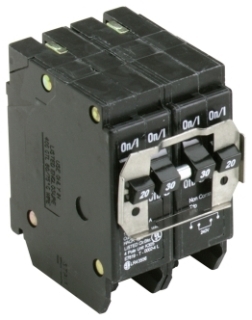

Eaton / Cutler-Hammer Plug-On Circuit Breaker Its Compact And Easy to Install two pole circuit breaker features thermal magnetic molded case for extra protection circuit breaker has a current rating of 20/30 Amps (outside/center pole) it is a quadplex independent trip breaker that has voltage rating of 120/240 Vac and AIC rating of 10 kilo-Amps it accommodates 14 - 4 AWG copper/aluminum wires circuit breaker is Ul 489 listed and Csa certified.
$68.99
| Type | Independent Trip- Quadplex |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC |
| Current Rating | 20 Amp (Outer Pole)- 30 Amp (Center Pole) |
| Interrupting Rating | 10 Kiloamp |
| Wire Size | 14 to 4 AWG (Copper/Aluminum) |
| Mounting | Plug-On |
| Used On | BR Series Load Center |
| Approval | UL 489 |
| Model | BQ |
| Additional Information | Includes Rejection Tab- Application Heating- Air Conditioning- Refrigeration |
