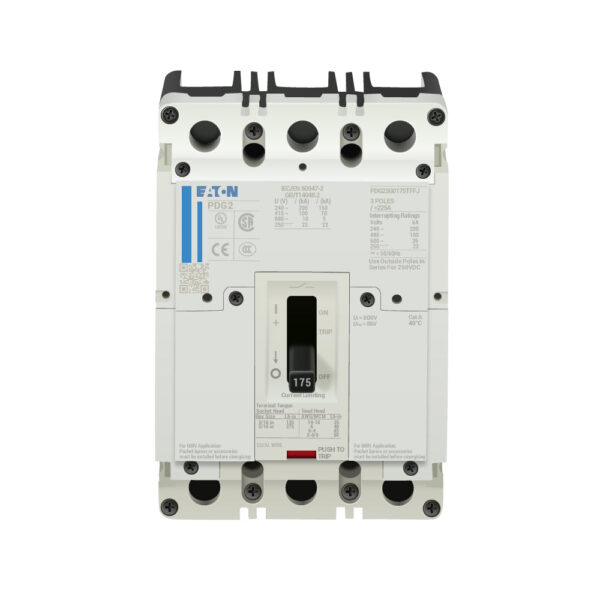

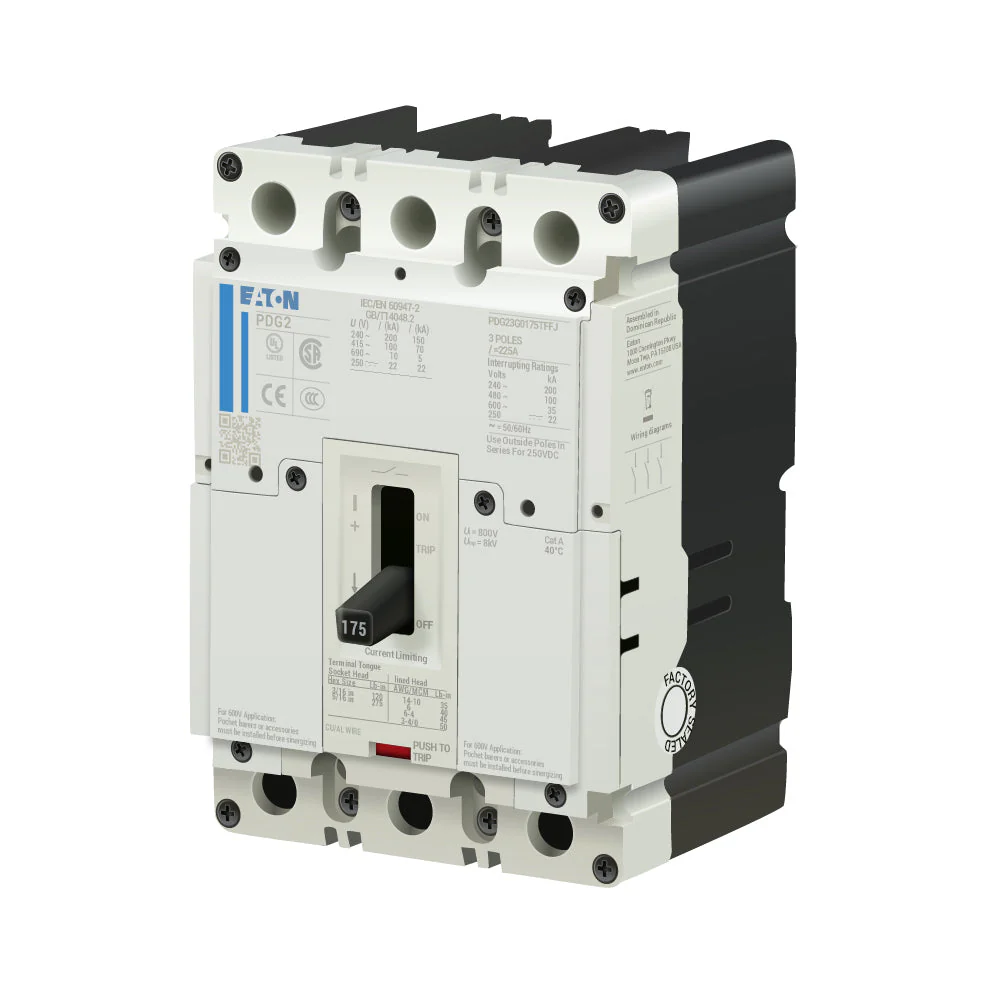

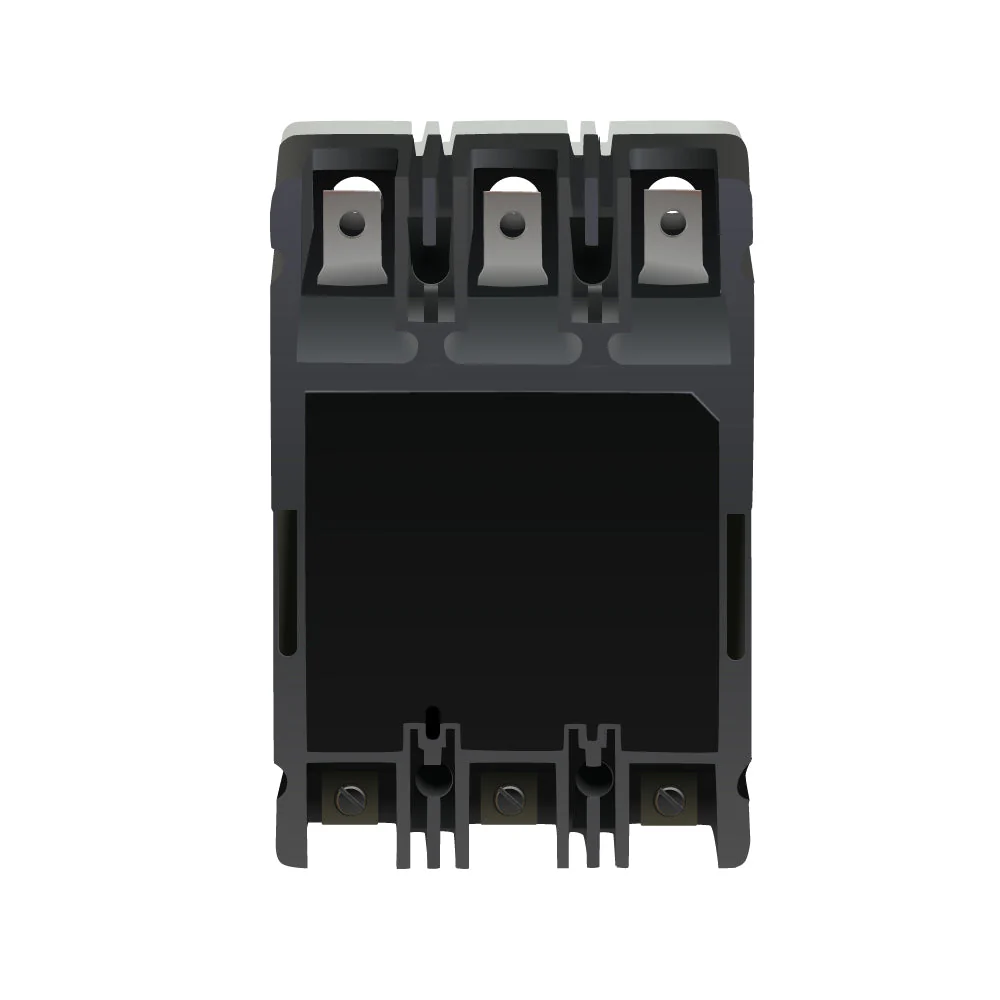

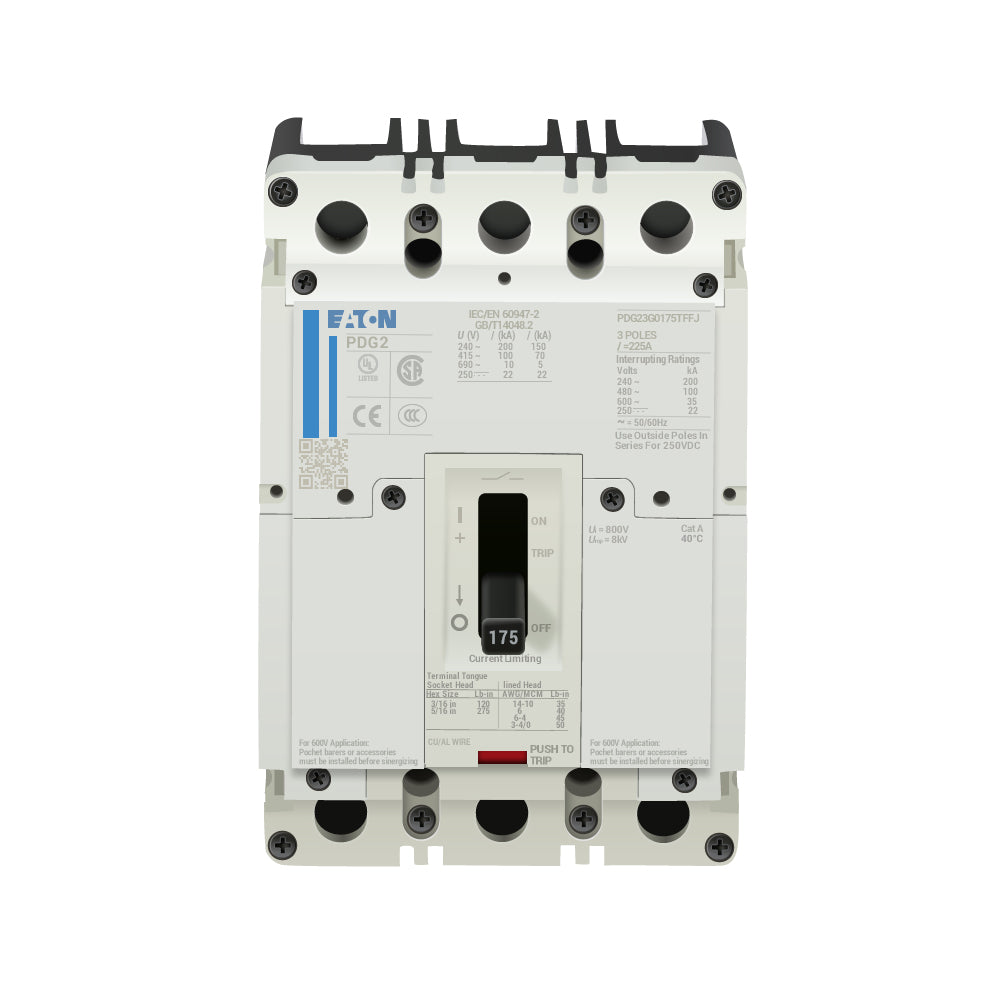

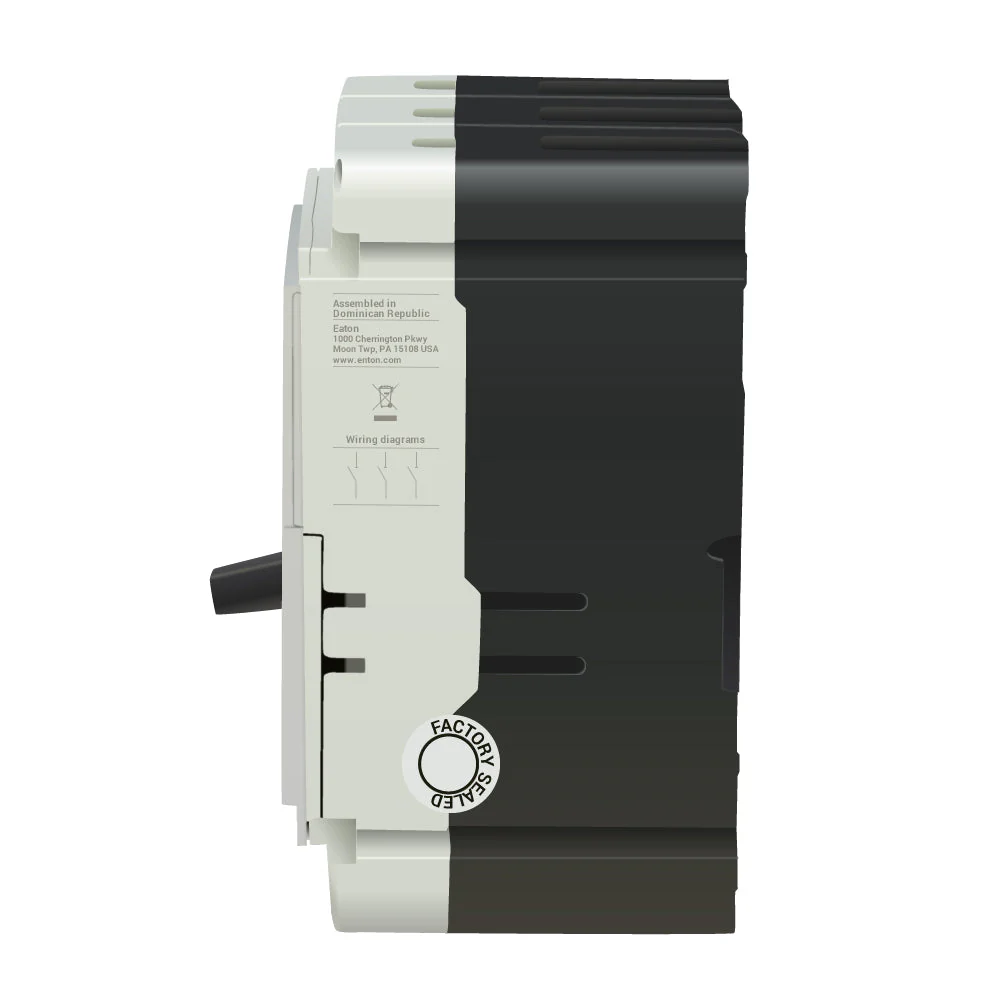

The Eaton PDG23G0175TFFJ is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 175 Amps and a voltage rating of 600VAC 250VDC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0175TFFJ has a panel mounting type and features with PDG frame type.
$924.99 – $1,015.61
| Brand | Eaton |
| Series | PDG |
| Amperage | 175 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Panel |
| Approval | IEC, UL, CSA, CCC |
| Interrupting Rating | 35kAIC at 480VAC |
| Frame Type | PDG |
| Protection | Thermal Magnetic |
| Terminal Connection | Line and load |
| Standards | RoHS |
| Circuit Breaker Type | PD2 Global |
| Mpn | PDG23G0175TFFJ |
