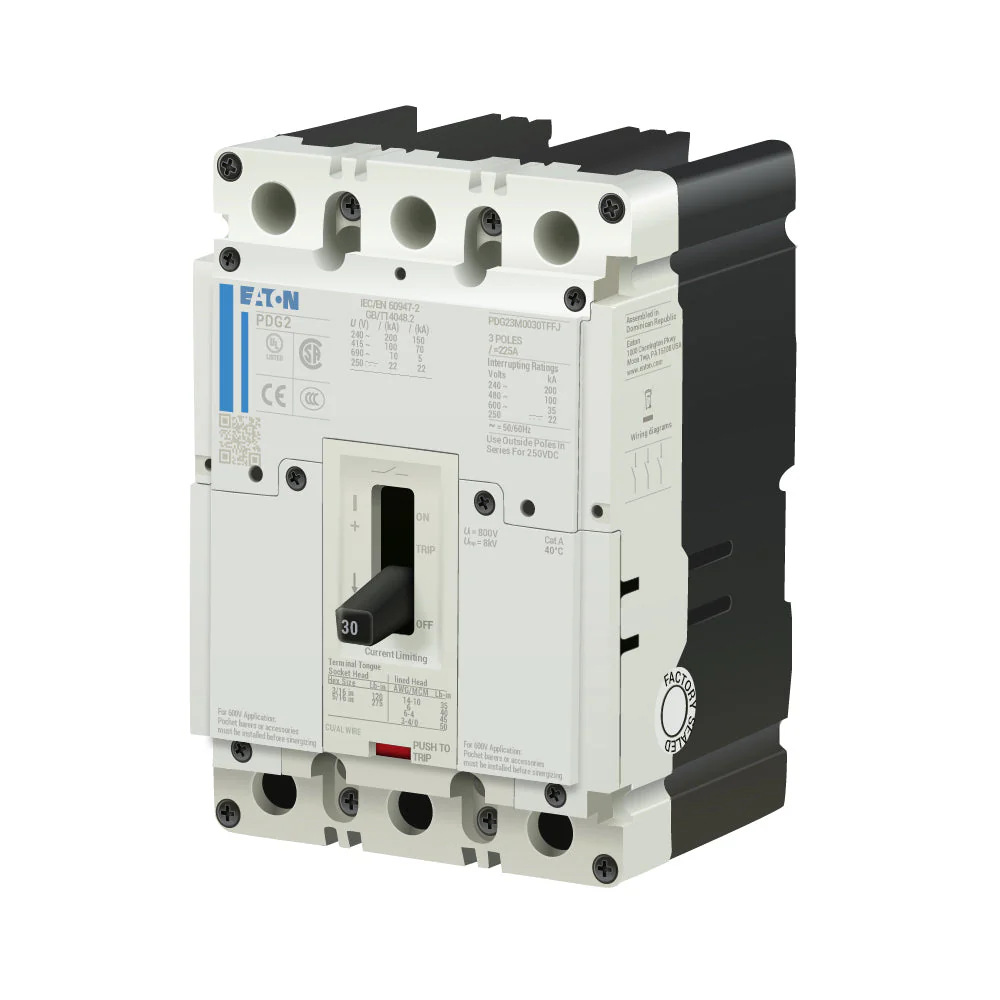

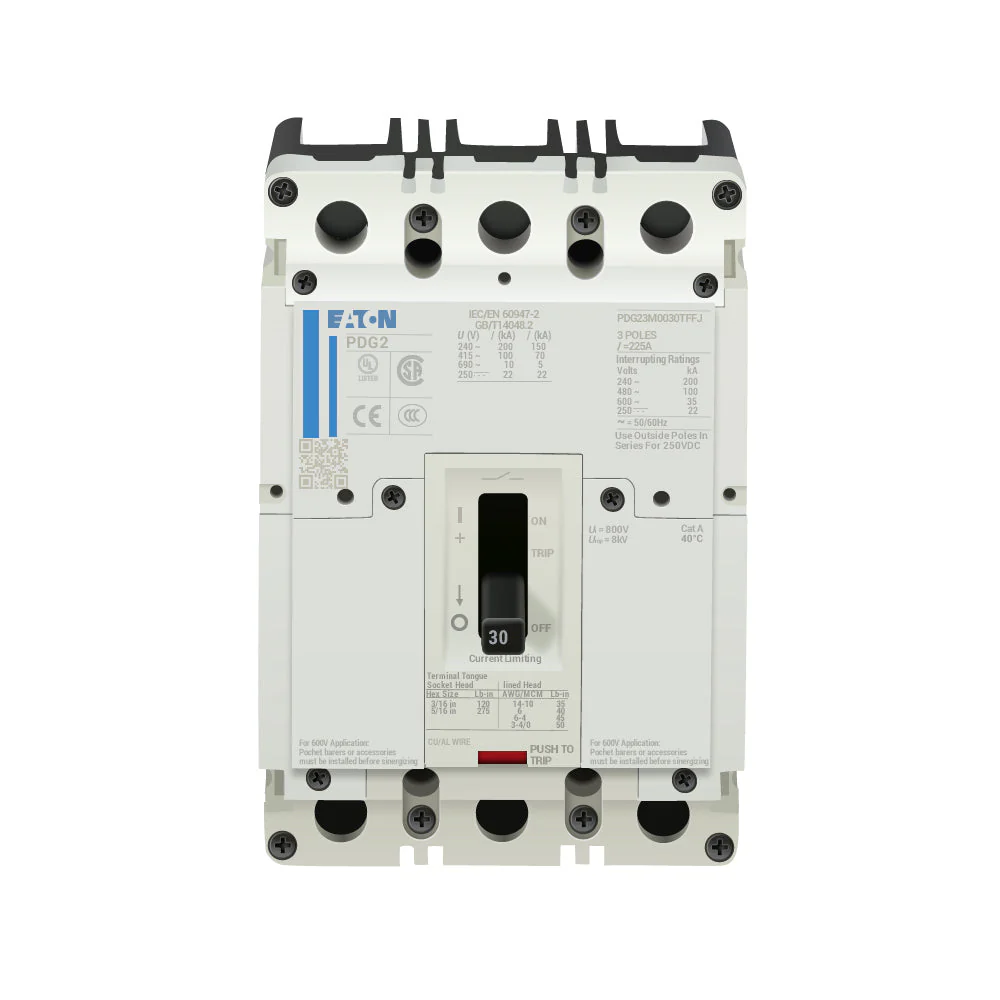

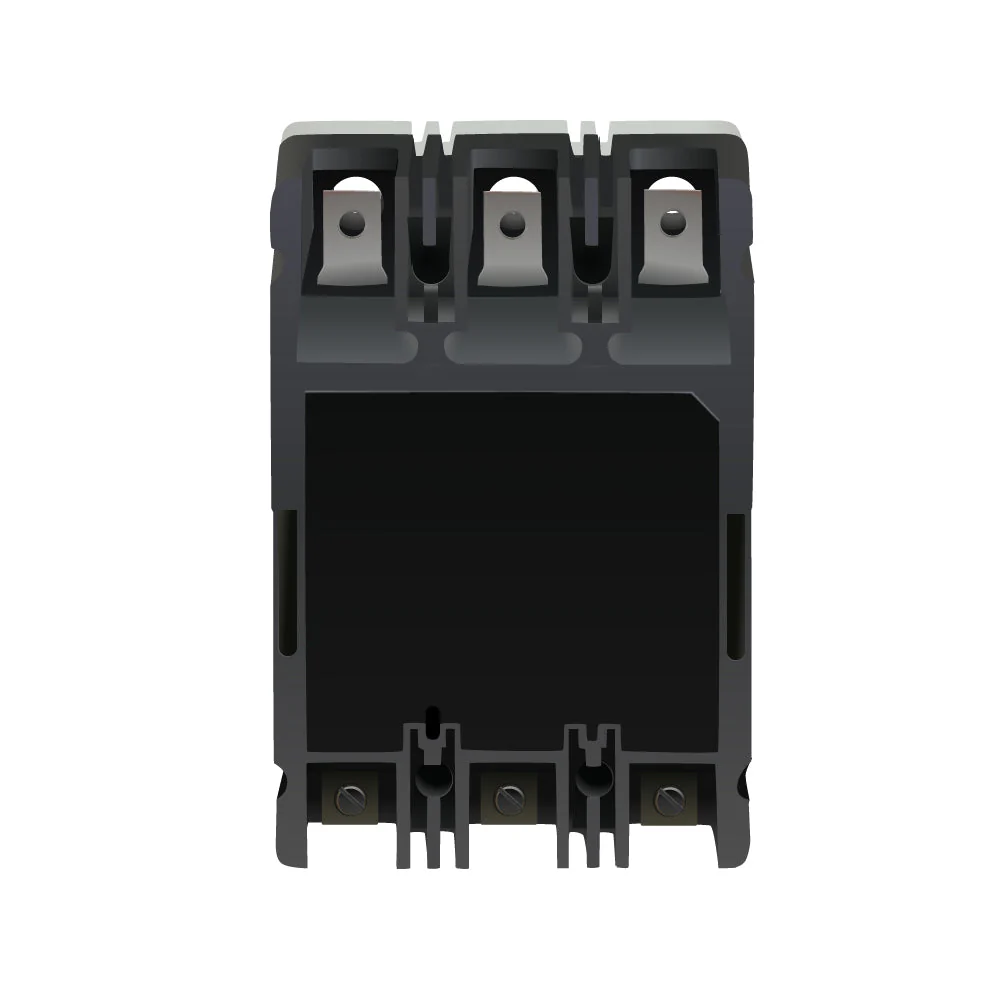

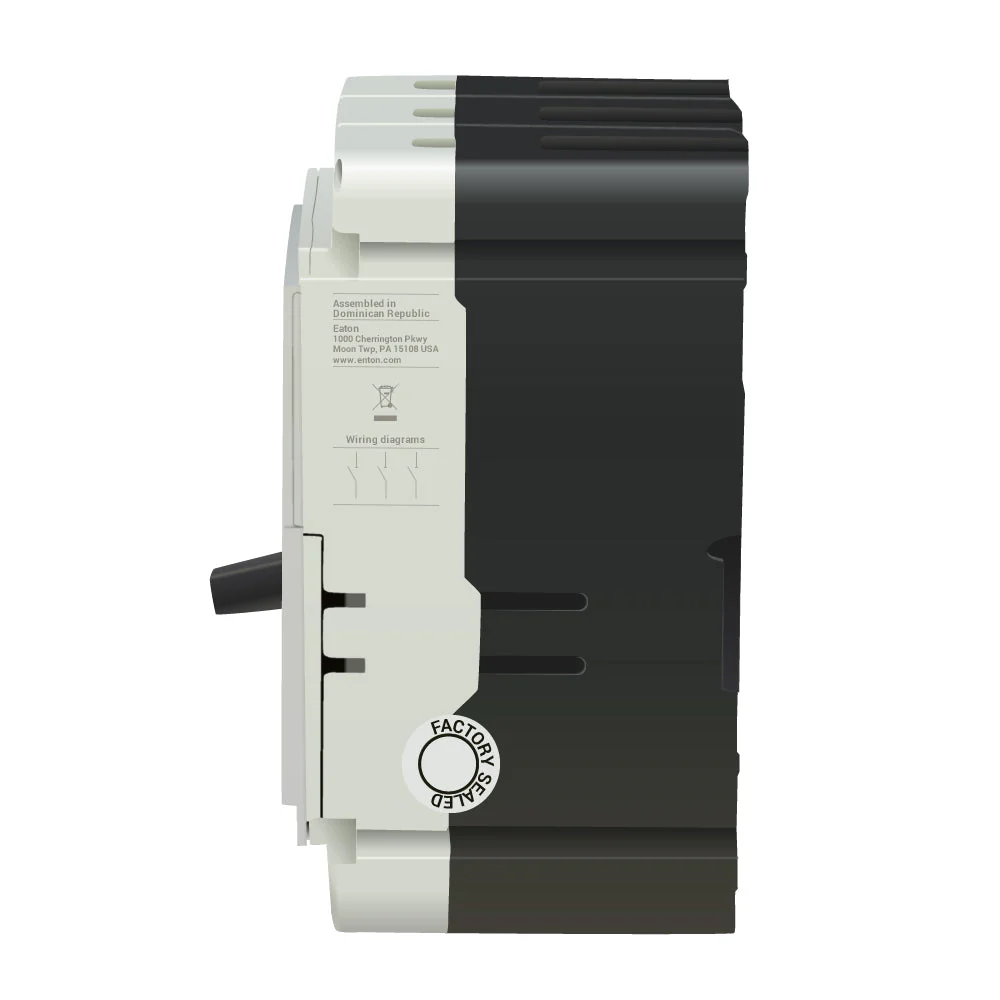

The Eaton PDG23M0030TFFJ is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The PDG23M0030TFFJ has a feed-thru connection type and includes LI - long time and instantaneous functions.
$637.99 – $705.95
| Brand | Eaton |
| Series | PDG |
| Amperage | 30 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Approval | IEC, CSA, CCC, UL |
| Interrupting Rating | 65kAIC at 480VAC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI – Long Time and Instantaneous |
| Terminal Connection | Standard Line and Load |
| Standards | RoHS |
| Circuit Breaker Type | PD2 Global |
| Mpn | PDG23M0030TFFJ |
