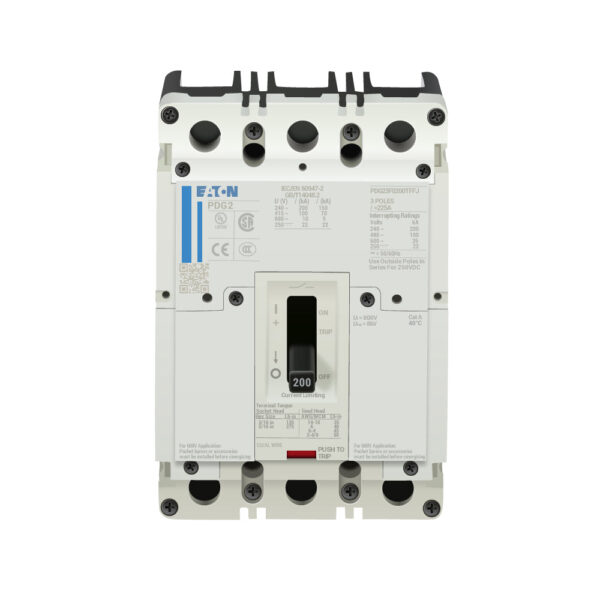

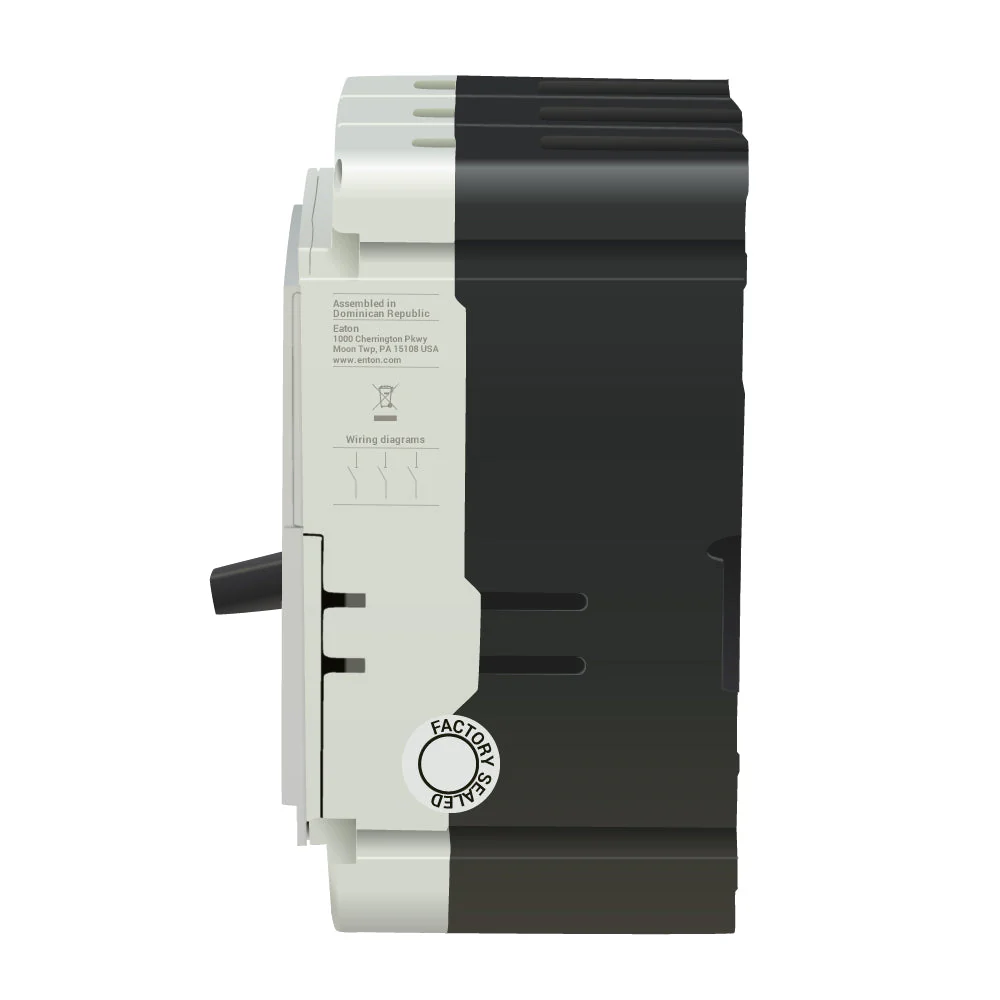

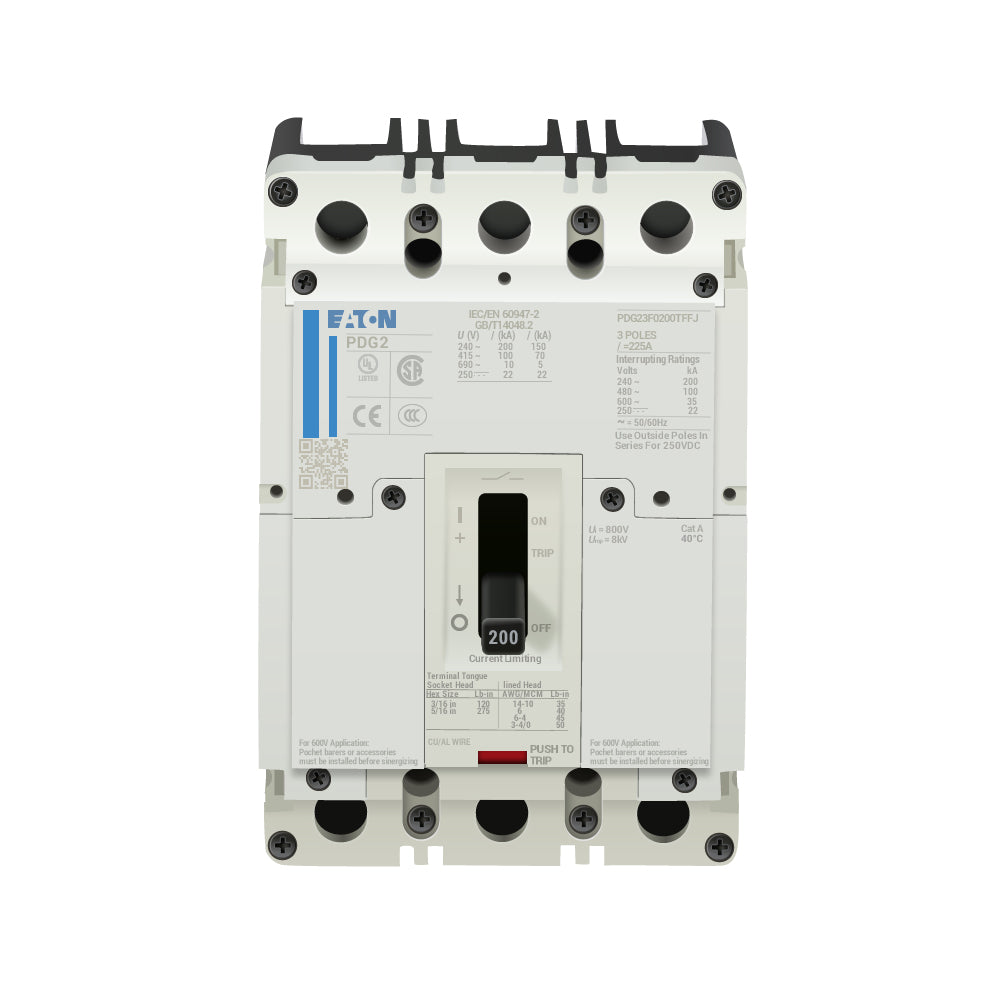

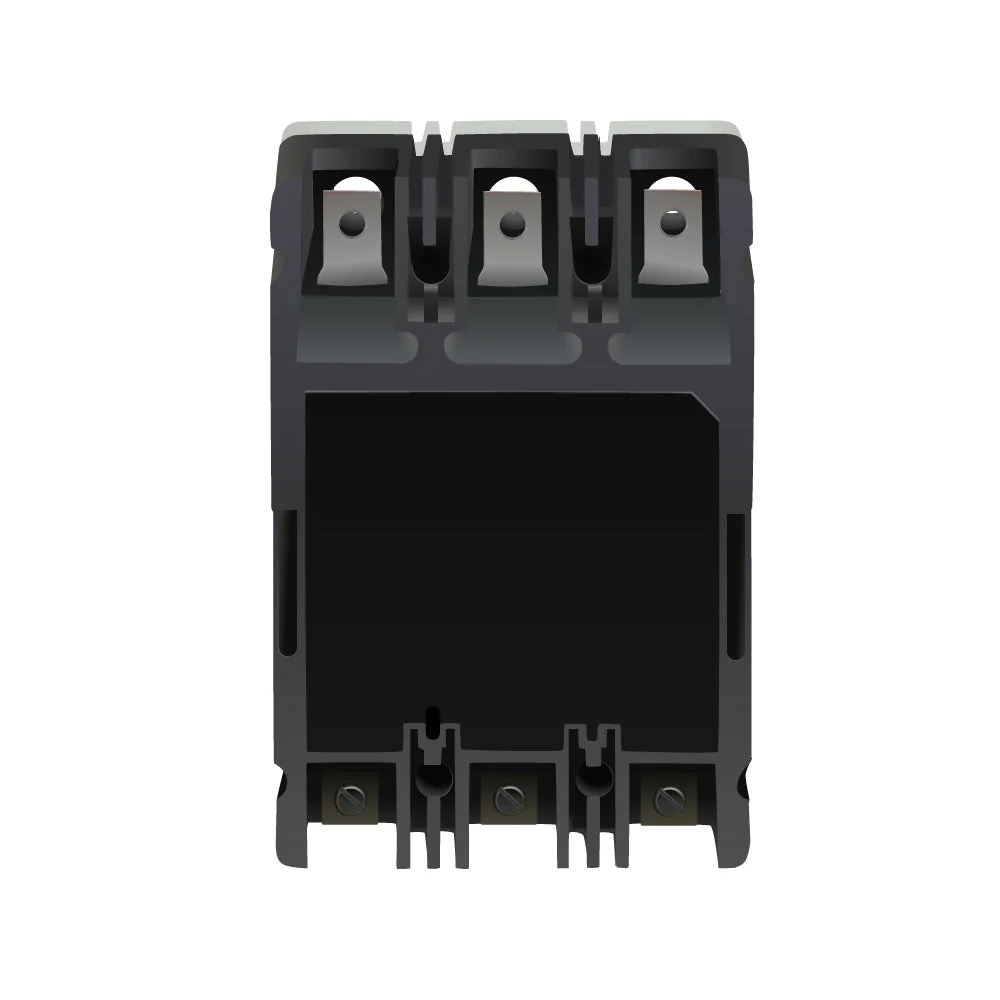

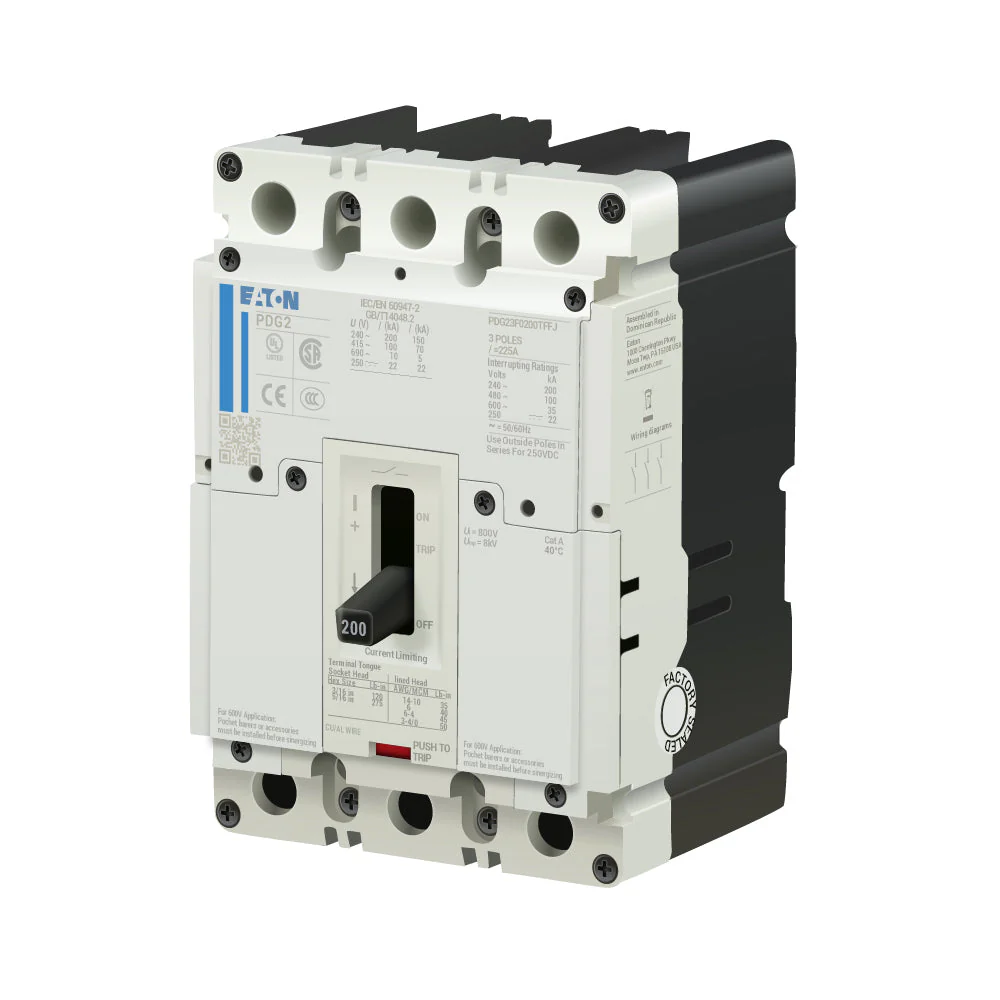

The Eaton PDG23M0200TFFJ is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The PDG23M0200TFFJ has a panel mounting type and includes long time and instantaneous trip functions.
$1,119.99 – $1,223.24
| Brand | Eaton |
| Series | PDG |
| Amperage | 200 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Panel |
| Approval | CSA, CCC, IEC, UL |
| Interrupting Rating | 65kAIC at 480VAC |
| Frame Type | Complete Breaker |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Standard Line and Load Lug |
| Standards | RoHS |
| Temperature Rating | -4 to 150 °F |
| Circuit Breaker Type | PD2 Global |
| Max Wire Size | 1/0 AWG |
| Min Wire Size | 14 AWG |
| Mpn | PDG23M0200TFFJ |
