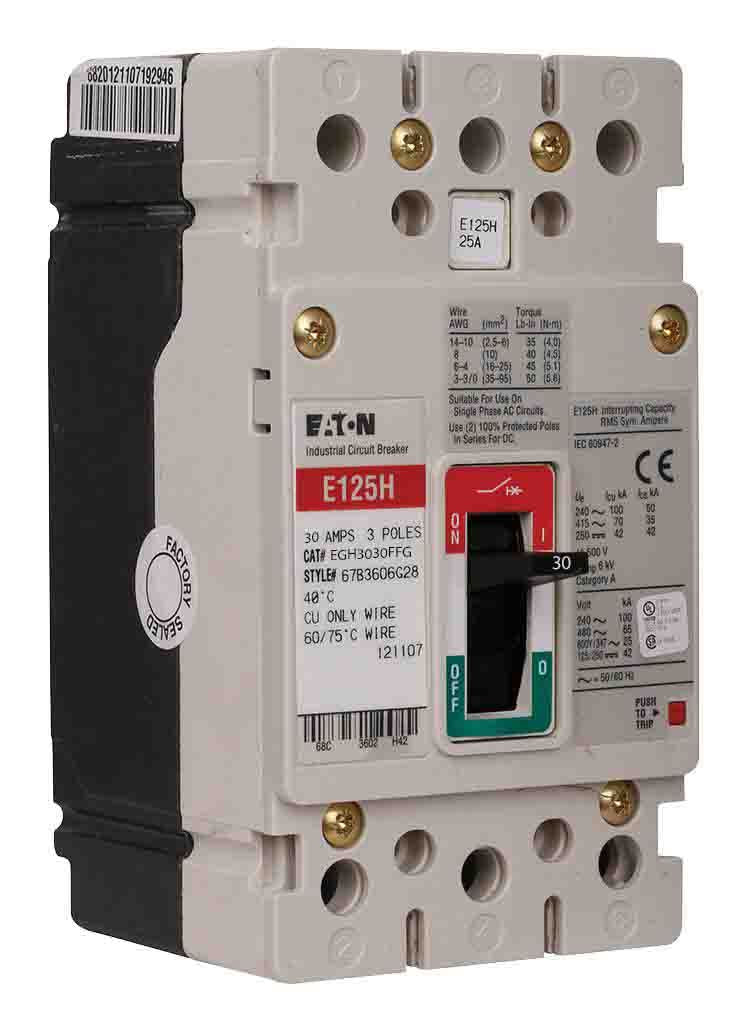

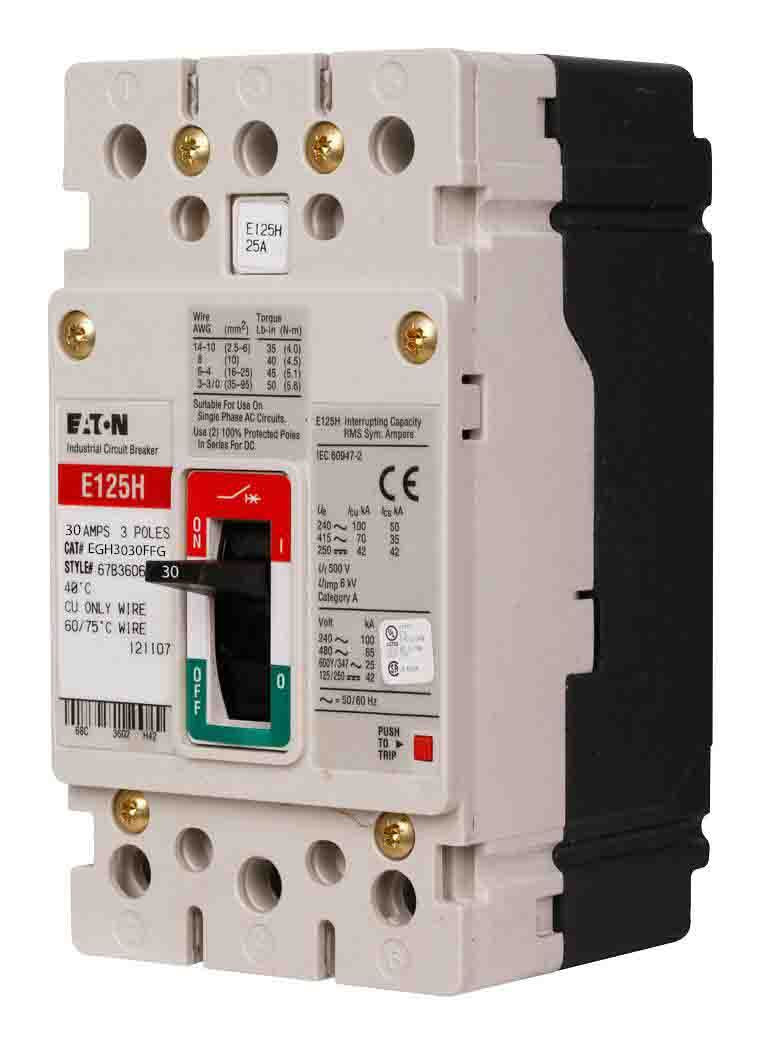

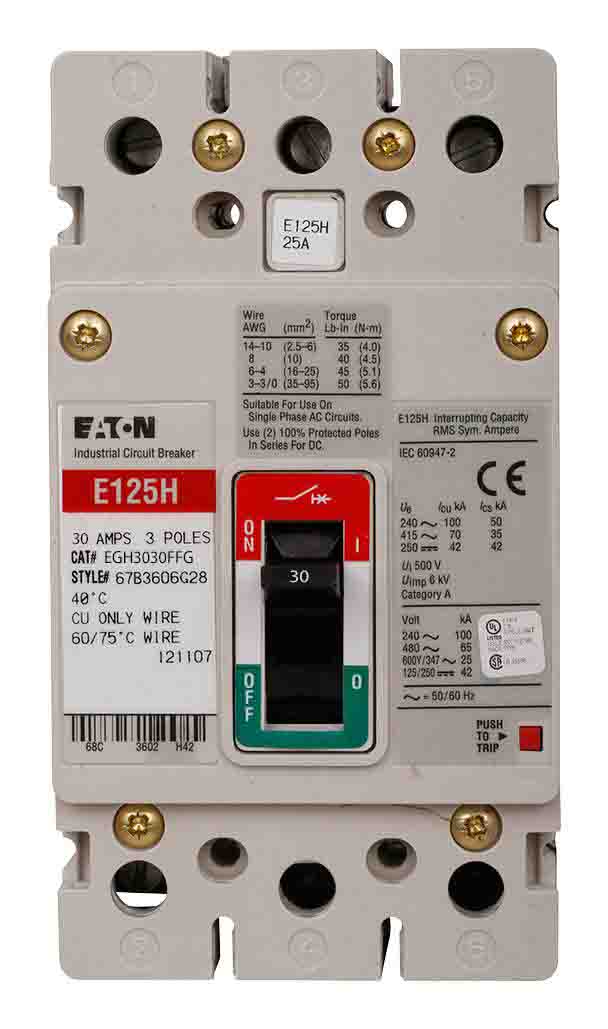

Cutler Hammer EGH G series three pole 30 ampere feed-thru molded case circuit breaker with maximum voltage rating of 600V tripping method thermal magnetic and standard interrupting rating of 65 kiloampere at 480V complete with non-interchangeable trip unit and line & load side lug terminals.
$464.99
| Type | Molded Case- Fixed Thermal Fixed Magnetic |
| Frame Type | EG |
| Voltage Rating | 415/480 V at 50/60 Hz |
| Maximum AC Voltage Rating | 480 |
| Current Rating | 30 Ampere at 40 Deg C |
| Number of Poles | 3 |
| Interrupting Rating | 70 Kiloampere at 415- 65 Kiloampere at 480 VAC- 10 Kiloampere at 250 VDC |
| Terminal Type | Standard Line and Load Terminal |
| Size | 3 Inch W x 2.99 Inch D x 5.5 Inch H |
| Approval | UL- CSA- CE |
| Model | G |
| Additional Information | Includes Frame- Trip Unit- Standard Terminals and Mounting Hardware- Applicable Standard NEMA AB1- AS 2184/3947-2- BS 4752- IEC 60947-2- NFC- SABS 156- SEV 947.2- VDE 0660 |
| Features/Benefits | Field-Fit Accessories- Common Accessories Through 630 Amperes- Electronic Trip Units from 20 to 2500 Amperes- UL-listed and IEC-Rated- 30 mA Ground Fault/Earth Leakage Modules- Built-in Ground Fault Protection Down to 20 Amperes |
