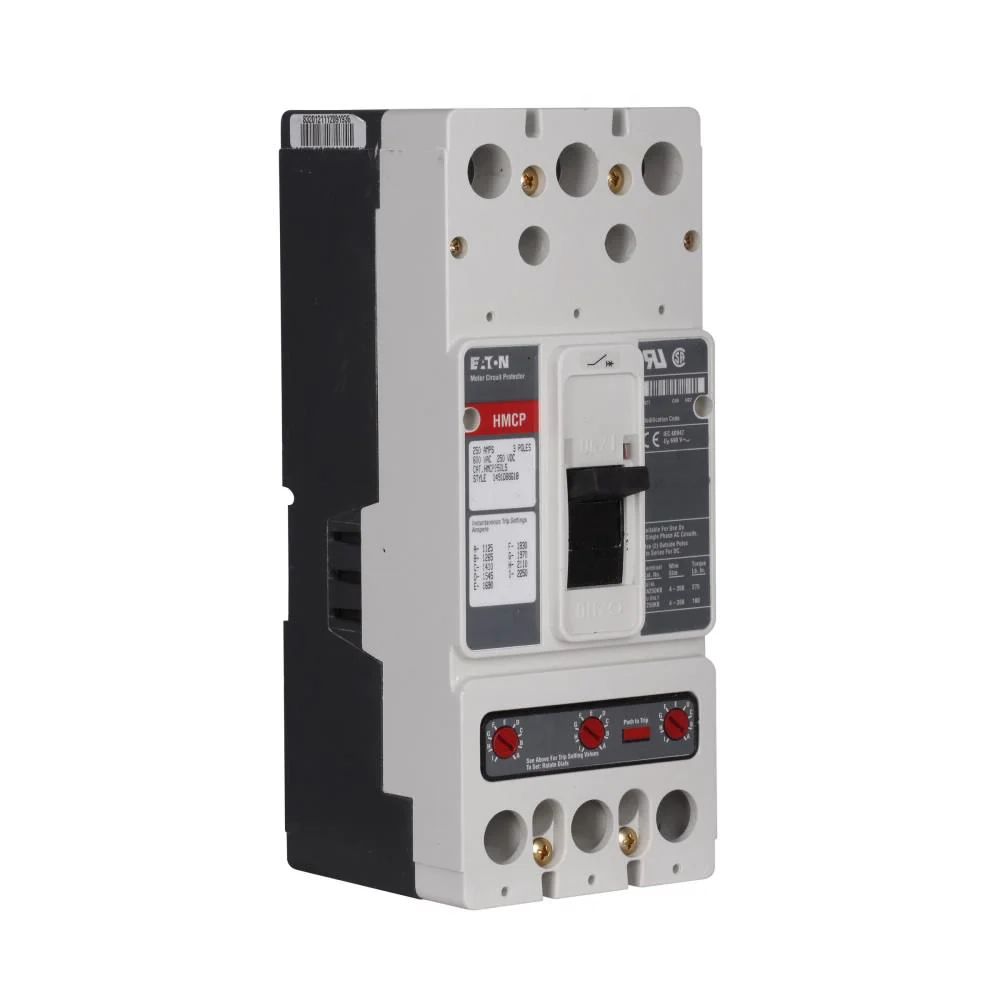

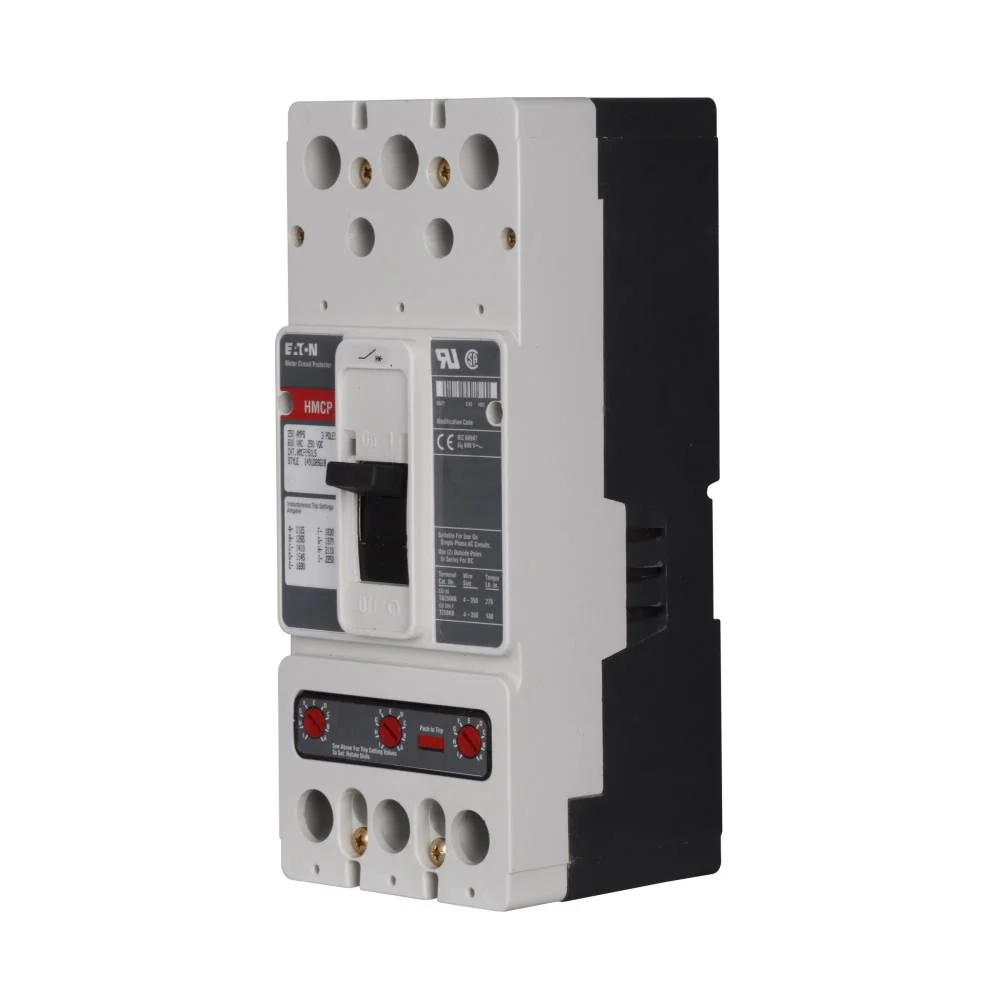

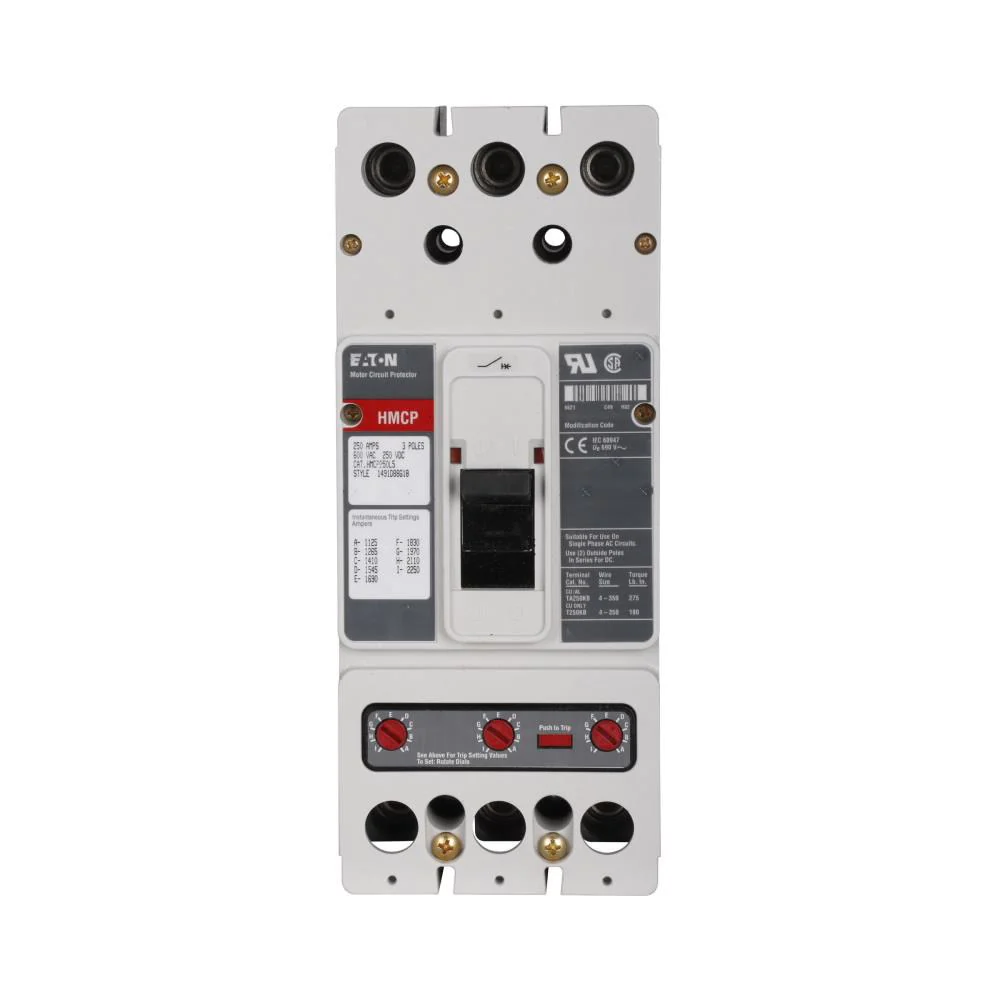

The Eaton HMCP250W5C is a 3 Pole magnetic molded case circuit breaker with a current rating of 250 Amps and a voltage rating of 600V. It has an interrupting rating of 35kA@480V. The HMCP250W5C has a feed-thru connection type and includes I - instantaneous functions.
$1,178.99
| Type | Molded Case- Magnetic |
| Frame Type | J |
| Voltage Rating | 600 Volt AC- 250 Volt DC |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 250 Volt |
| Current Rating | 250 Amp |
| Number of Poles | 3 |
| Trip Setting | 1250 to 2500 Amp |
| Starter Size | NEMA 5 |
| Motor FLA | 96.2 to 204 Amp |
| Terminal Type | Non-Aluminum Line and Load Terminal |
| Size | 4.06 Inch Width x 4.13 Inch Depth x 10 Inch Height |
| Approval | UL 489- CSA C22.2- CE |
| Model | C- HMCP |
| Additional Information | RoHS/ATEX Compliant- Applicable Standard IEC 157-1 |
