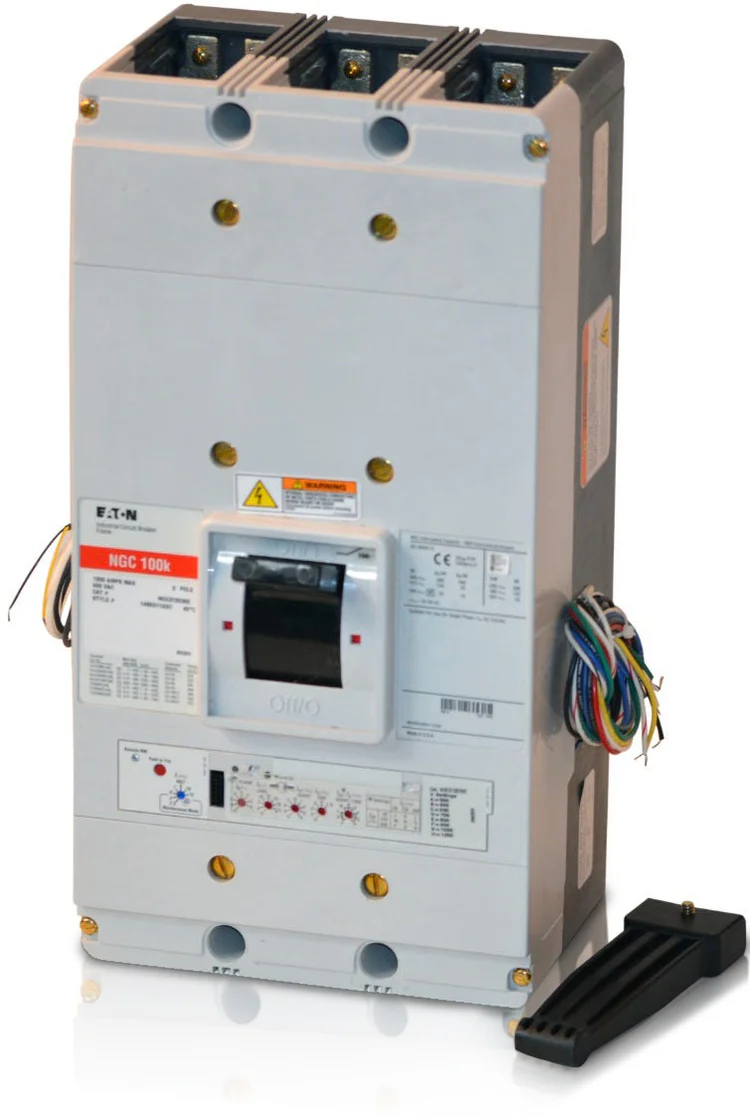

The Eaton NGC312033E is a 3 Pole solid state molded case circuit breaker with a current rating of 1200 Amps and a voltage rating of 600V. It has an interrupting rating of 200kAIC at 240VAC, 100kAIC at 480VAC. The NGC312033E has a bolt-on connection type and includes long time and short-time functions.
$9,499.99
| Brand | Eaton |
| Series | G |
| Amperage | 1200 |
| Voltage | 600 |
| Poles | 3 |
| Phase | 3 |
| Approval | UL, CSA |
| Interrupting Rating | 200 kAIC at 240 Vac, 100 kAIC at 480 Vac |
| Frame Type | NGC |
| Connection Type | Bolt-On |
| Protection | Solid State |
| Functions | LS - Long-Time and Short-Time |
| Length (in) | 6 |
| Width (in) | 9 |
| Height (in) | 9 |
| Mpn | NGC312033E |
