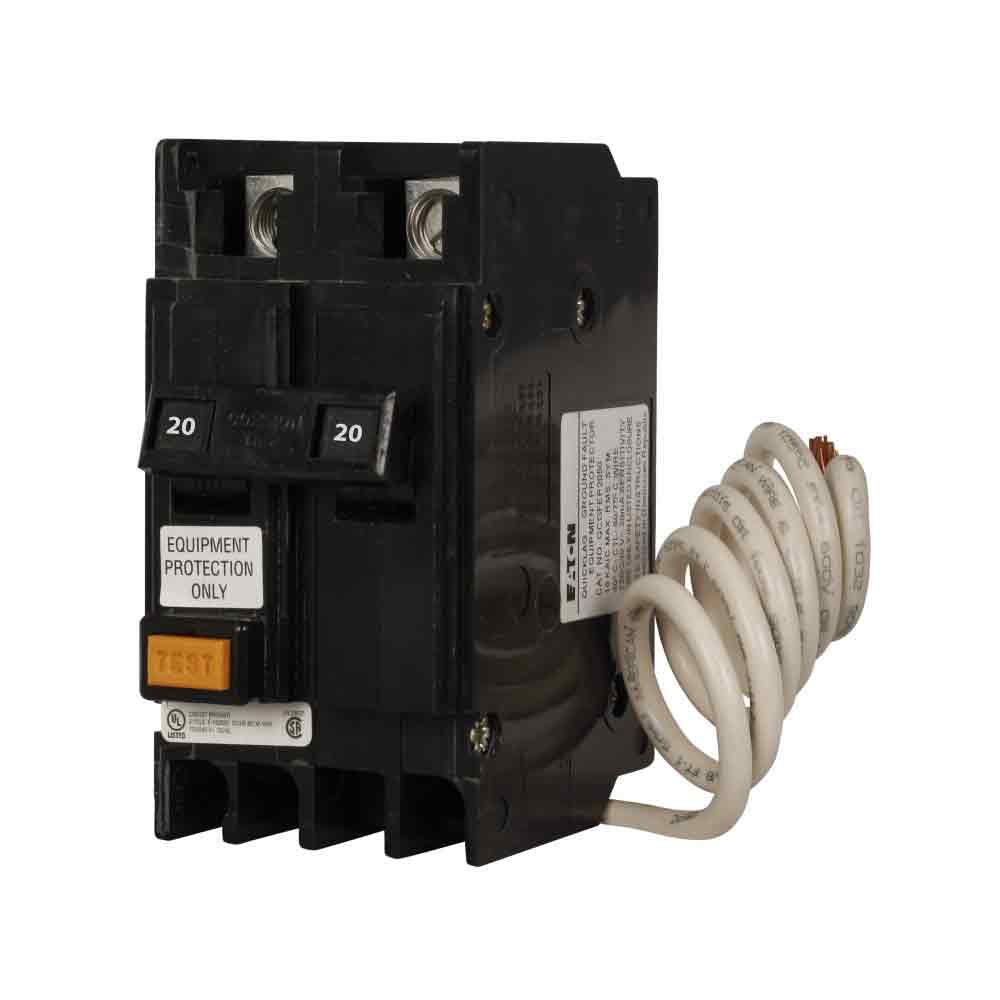

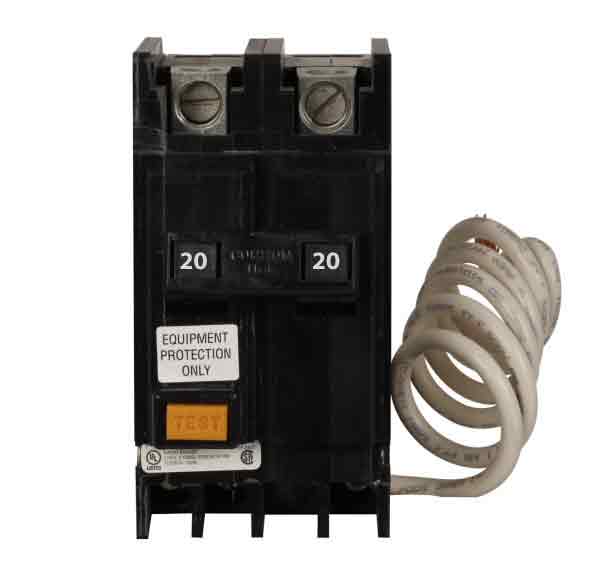

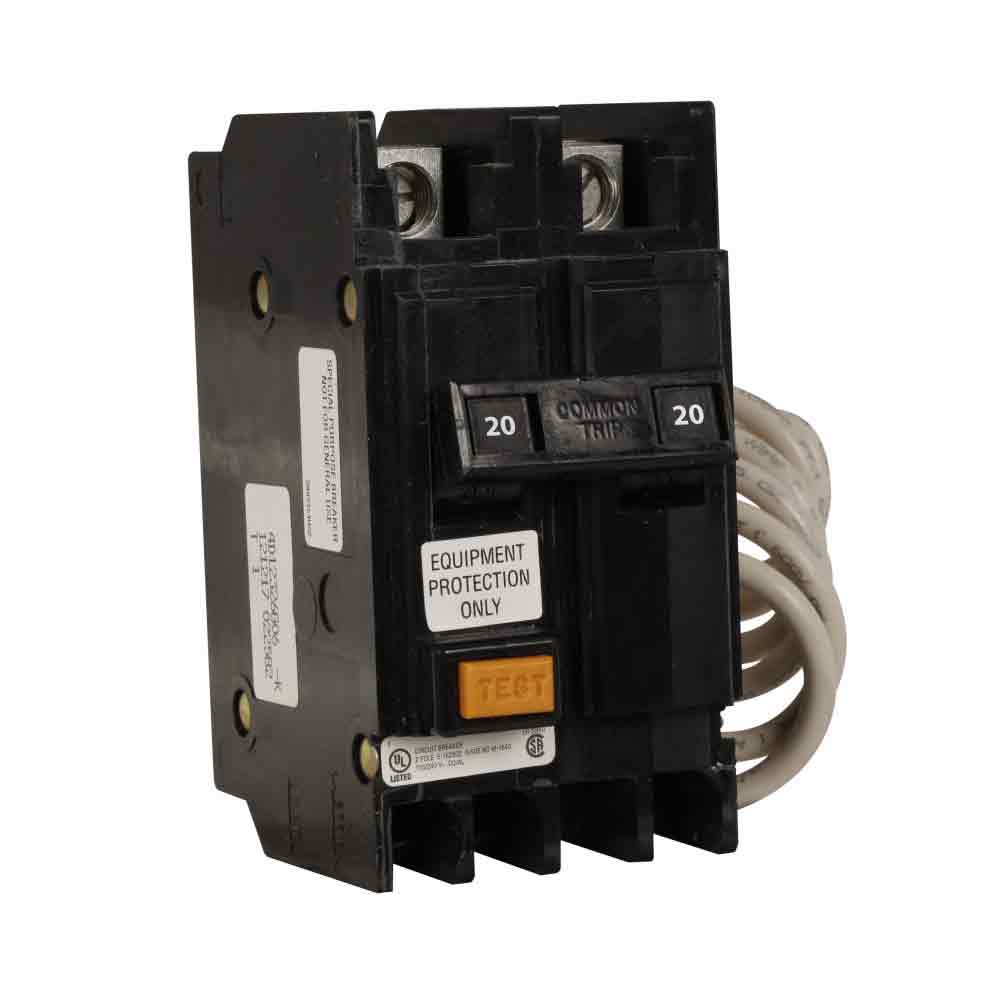

The Eaton QCGFEP2020 is a 2 Pole molded case ground fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@120V. The QCGFEP2020 has a plug-on mounting type and includes long time and instantaneous trip functions.
$224.99
| Type | Equipment Protector- Thermal Magnetic |
| Number of Poles | 2 |
| Voltage Rating | 120/240 VAC |
| Current Rating | 20 Ampere at 40 Deg C |
| Interrupting Rating | 10000 Ampere |
| Trip Sensitivity | 30 Milliampere |
| Terminal Type | RING LINE TERMINAL- BOX LUG LOAD TERMINAL |
| Wire Size | 14 TO 10 AWG ALUMINUM/COPPER (LINE)- 14 TO 4 AWG ALUMINUM/COPPER (LOAD) |
| Mounting | Cable In- Cable Out |
| Approval | UL 489- CSA |
| Brand Name | QUICKLAG[R] |
| Model | QCGFEP |
