Product Description

Name: EGH3080FFB - Cutler Hammer Bolt-On 600V 80A 3 pole circuit breaker 65kA@480V - Mega Breakers And Controls
SKU: EGH3080FFB
Price: 602.99 USD
Availability: InStock

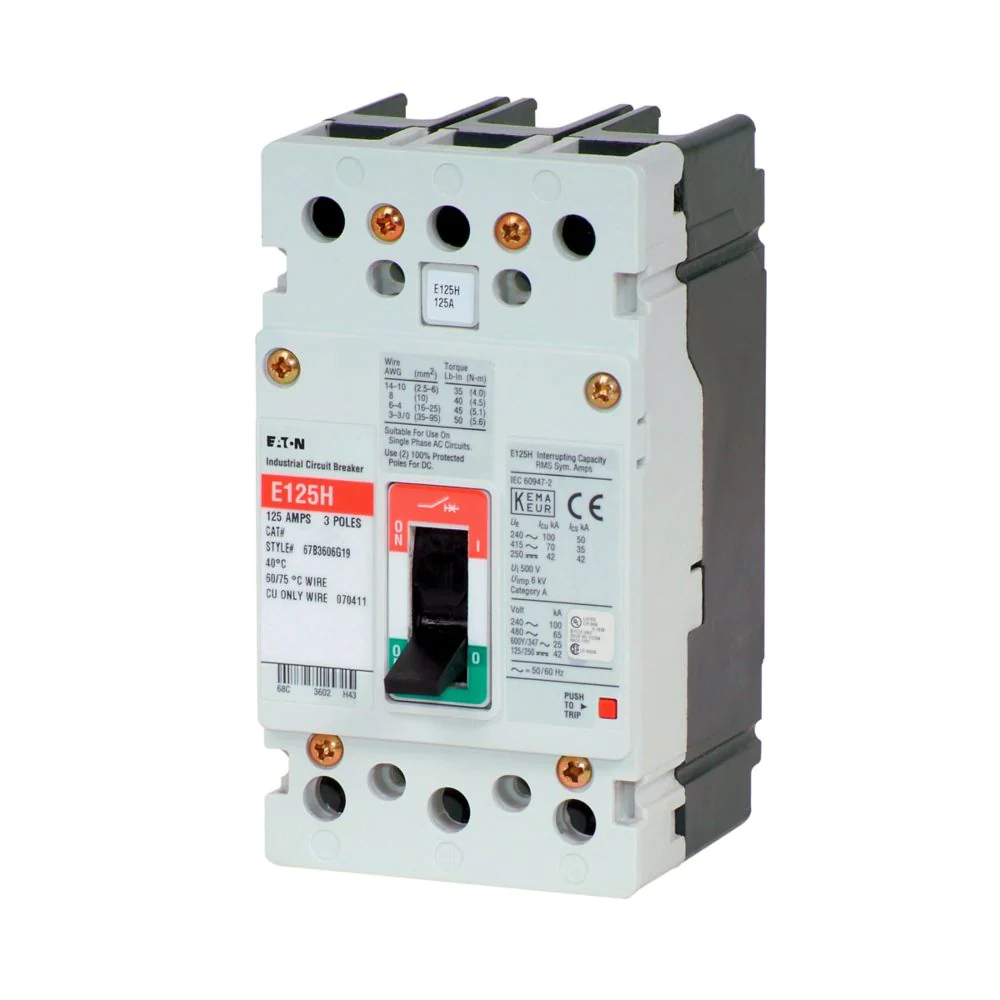

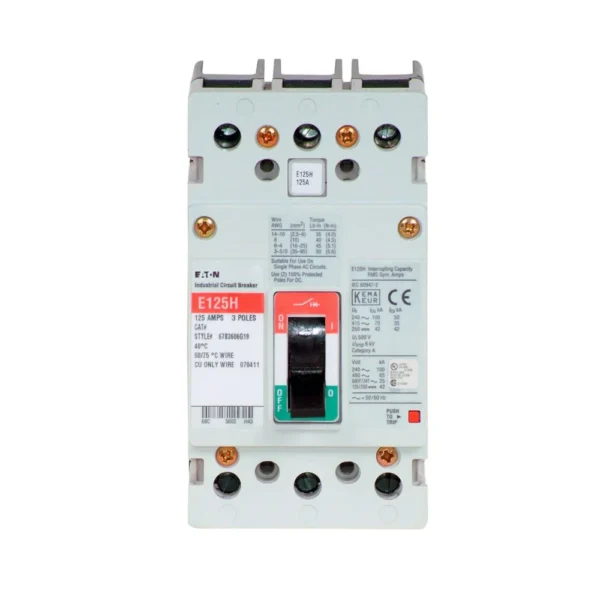

The Eaton EGH3080FFB is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 600Y/347VAC. It has an interrupting rating of 65kAIC at 480VAC 35kAIC at 600Y/347VAC 100kAIC at 240VAC. The EGH3080FFB has a bolt-on connection type and includes LI - long time and instantaneous functions.

SKU: EGH3080FFB Categories: Circuit breakers, Cutler hammer, Eaton

EGH3080FFB - Cutler Hammer Bolt-On 600V 80A 3 pole circuit breaker 65kA@480V

$602.99

Condition

Clear

Free shipping on orders over $200

SPECIFICATIONS

Brand	Eaton
Series	G
Amperage	80
Voltage	600Y/347VAC
Poles	3
Phase	3
Approval	CE, CSA, IEC, UL
Interrupting Rating	65kAIC at 480VAC, 35kAIC at 600Y/347VAC, 100kAIC at 240VAC
Connection Type	Bolt-On
Protection	Thermal Magnetic
Functions	LI – Long Time and Instantaneous
Terminal Connection	Load side lug
Temperature Rating	40°C
Circuit Breaker Type	EG
Mpn	EGH3080FFB
