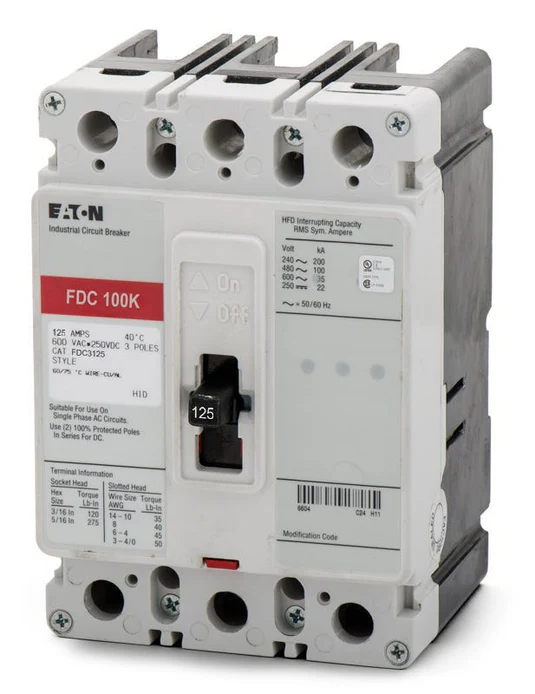

The Eaton FDC3125 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 125 Amps and a voltage rating of 600VAC. It has an interrupting rating of 100kAIC at 480VAC 200kAIC at 240VAC. The FDC3125 has a panel mounting type and includes long time and instantaneous trip functions.
$1,499.99
| Brand | Eaton |
| Series | C |
| Amperage | 125 |
| Voltage | 600 |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Frame |
| Approval | UL |
| Interrupting Rating | 200 kAIC@240 VAC, 100 kAIC@480 VAC |
| Frame Type | FDC |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous |
| Terminal Connection | Load Side |
| Length (in) | 3.38 |
| Width (in) | 4.13 |
| Height (in) | 4.13 |
| Mpn | FDC3125 |
