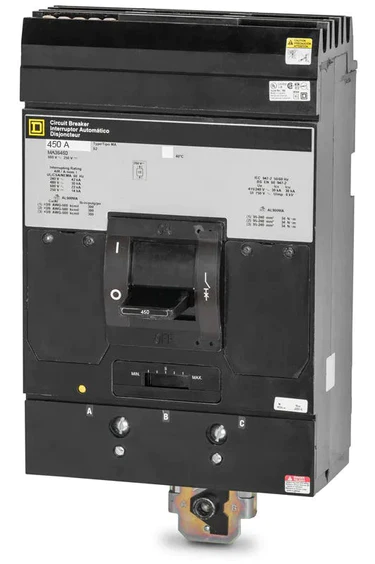

The Square D MA36450 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 450 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 30kAIC at 480V. The MA36450 has a bolt-on connection type and includes long time, short time and instantaneous trip functions.
$1,250.00
| Brand | Square D |
| Series | MA |
| Amperage | 450 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Approval | UL |
| Interrupting Rating | 30kAIC at 480V |
| Frame Type | MA |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time, Short Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Wire Gauge | #3/0 AWG-500KCmil |
| For Use With | Panelboards and Switchboards |
| Temperature Rating | 40°C |
| Mpn | MA36450 |
