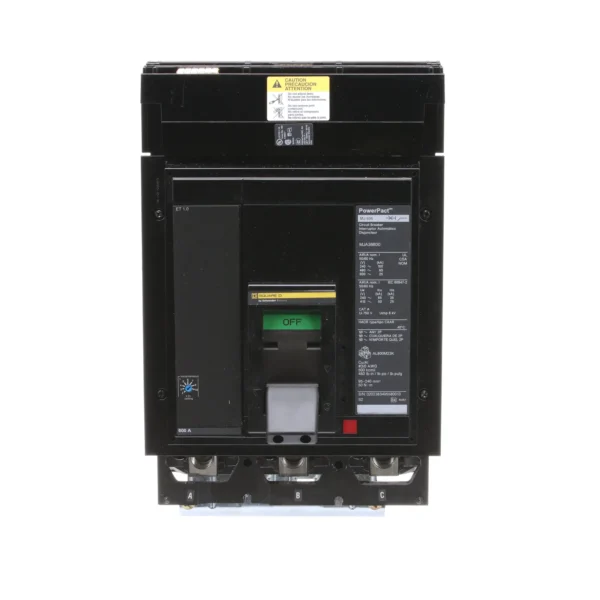

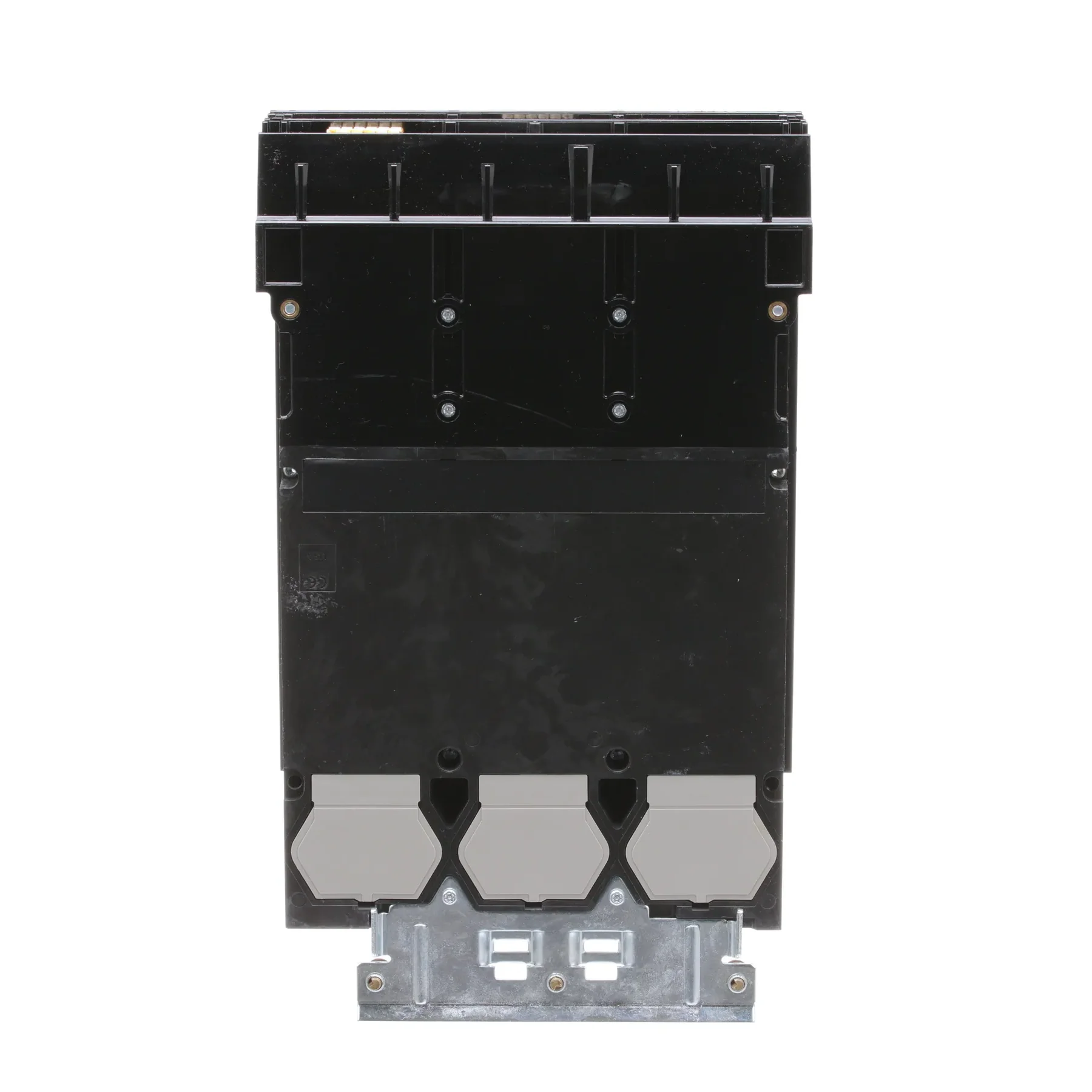

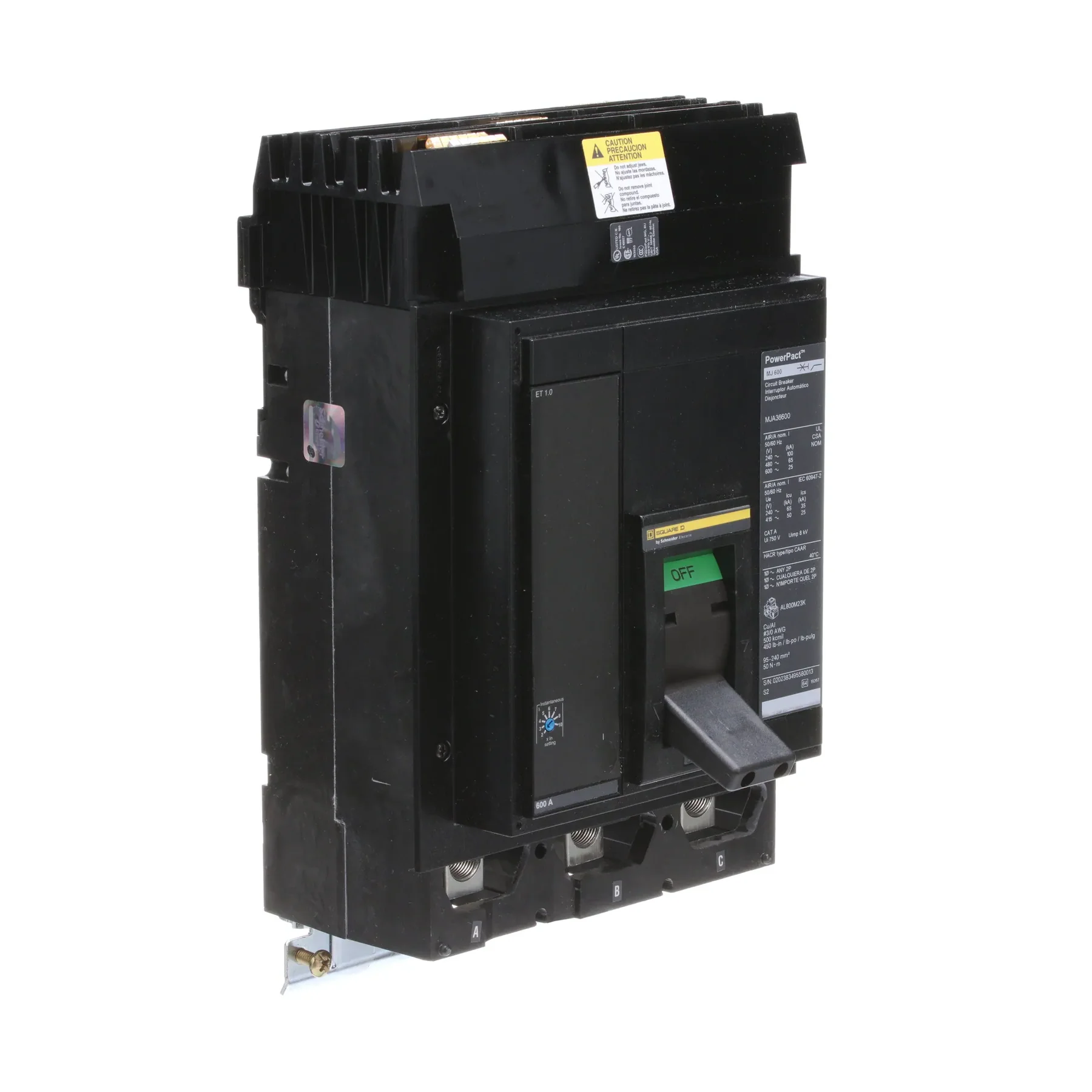

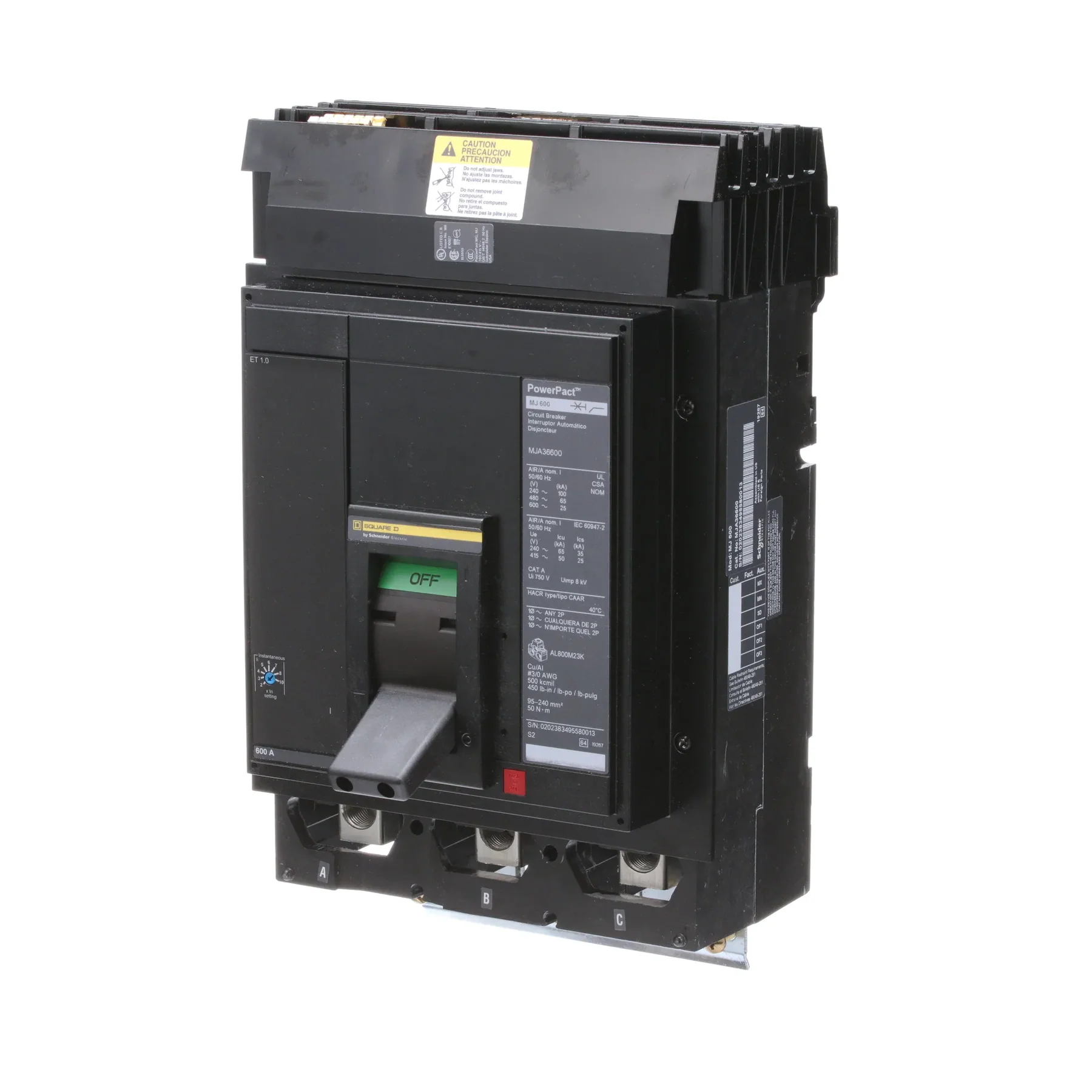

The Square D MJA36600 is a 3 Pole solid state molded case circuit breaker with a current rating of 600 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480V. The MJA36600 has an I-Line style bracket mounting type and includes long time and instantaneous trip functions.
$4,999.99
| Brand | Square D |
| Series | MJA |
| Amperage | 600 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Plug-On |
| Approval | UL, CSA, IEC |
| Interrupting Rating | 65kA@480V |
| Connection Type | I-Line Style Plug-In |
| Protection | Solid State |
| Functions | LI - Long-Time and Instantaneous |
| Mpn | MJA36600 |
