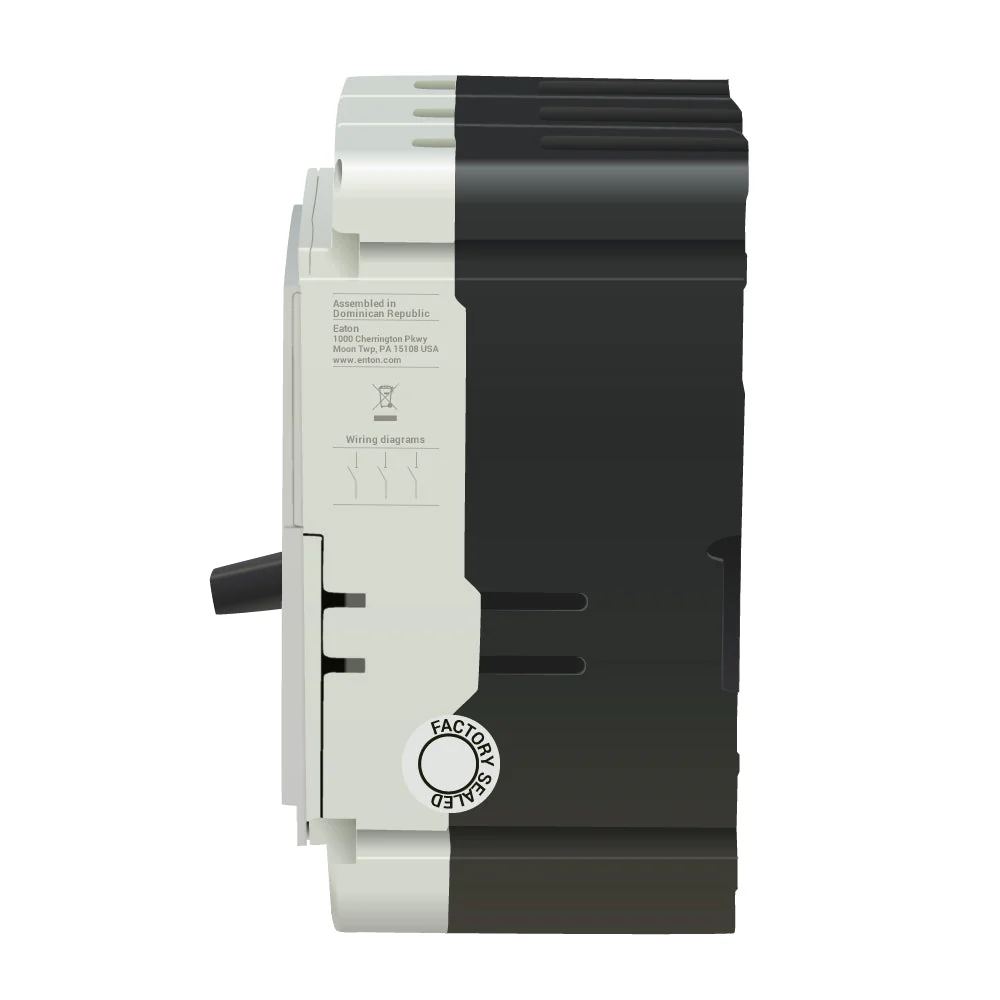

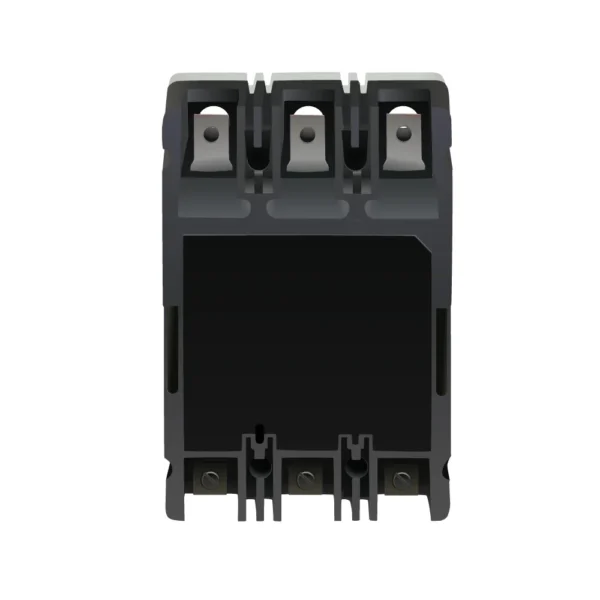

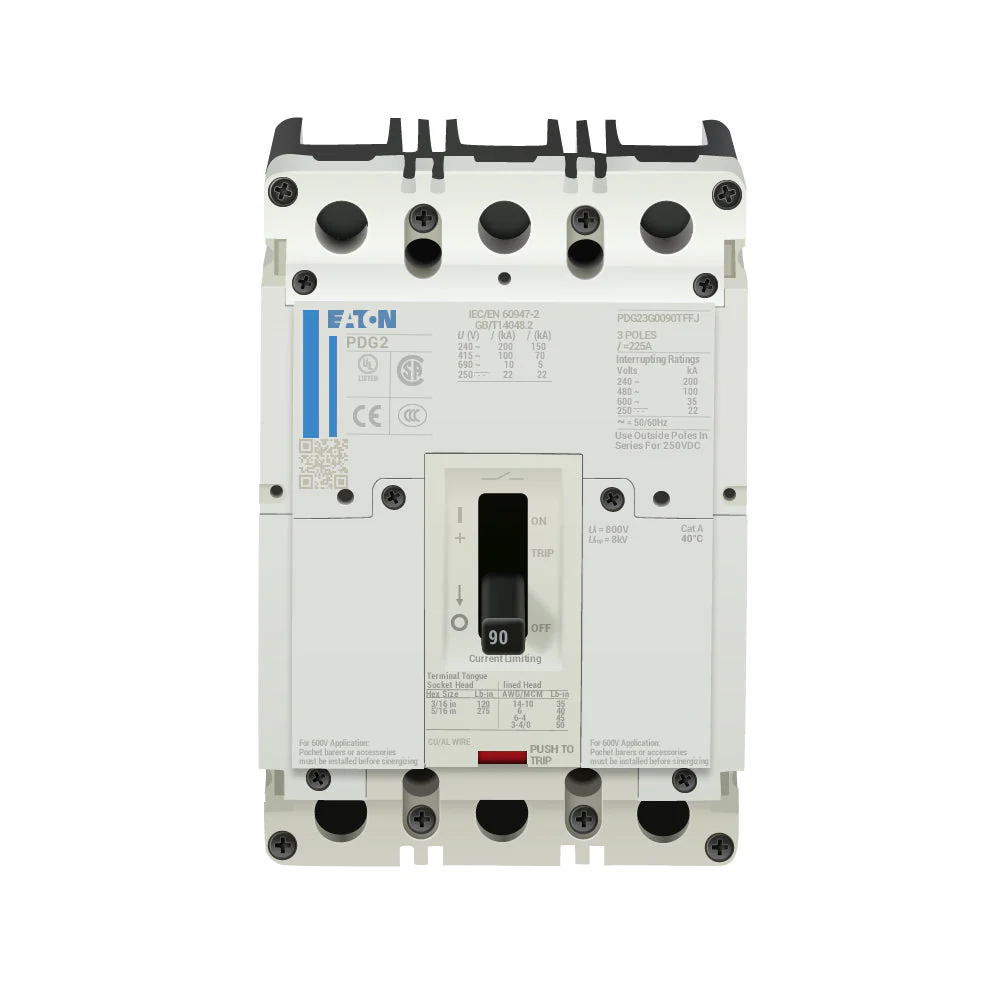

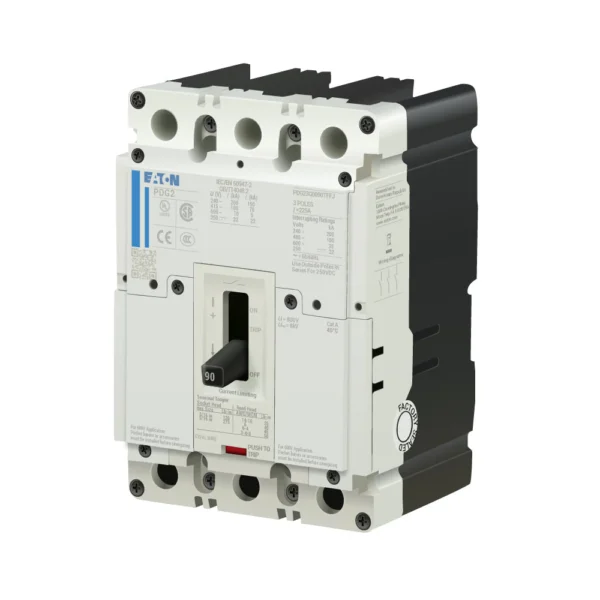

The Eaton PDG23G0090TFFJ is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0090TFFJ has a feed-thru connection type and includes long time and instantaneous trip functions.
$499.99
| Series | Power Defense |
| Amperage | 90 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Panel |
| Approval | CSA, CCC, IEC, UL |
| Interrupting Rating | 35kAIC at 480VAC |
| Frame Type | Complete Breaker |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Standard Line and Load Side Lug |
| Standards | RoHS |
| Circuit Breaker Type | PD2 Global |
