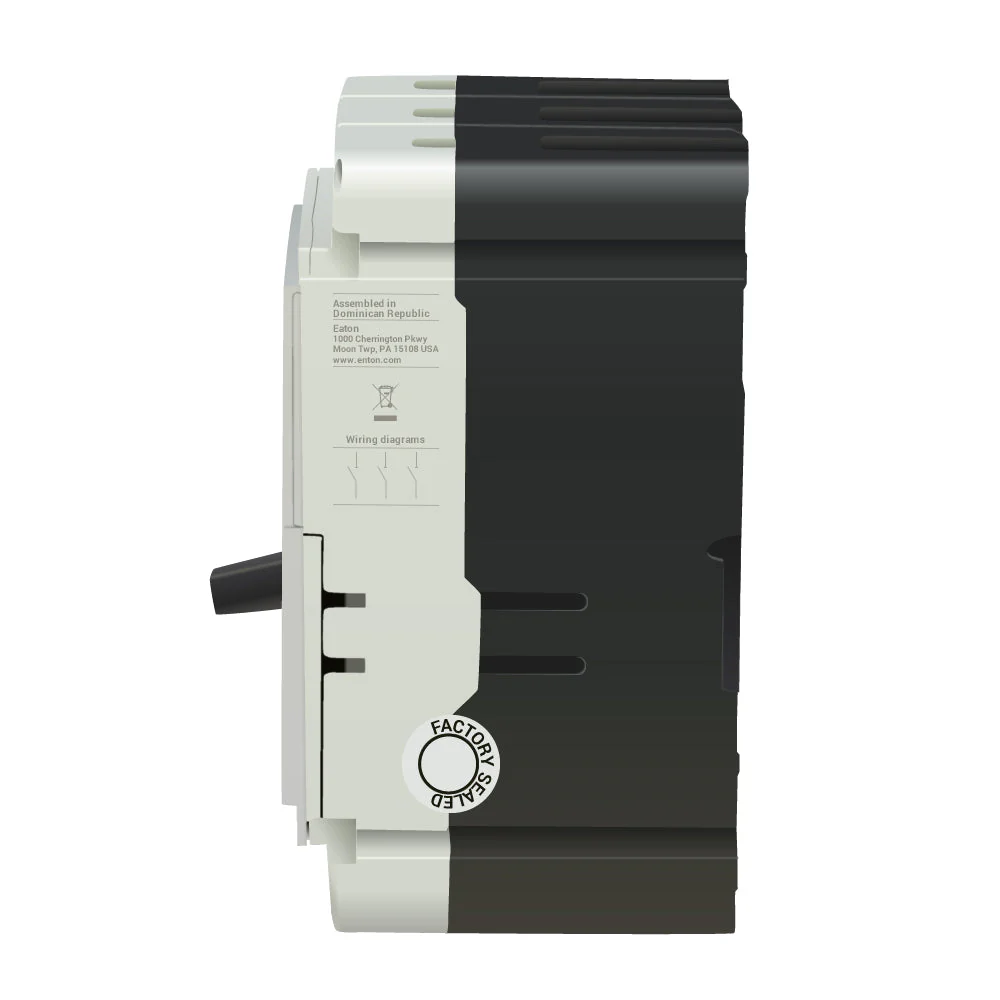

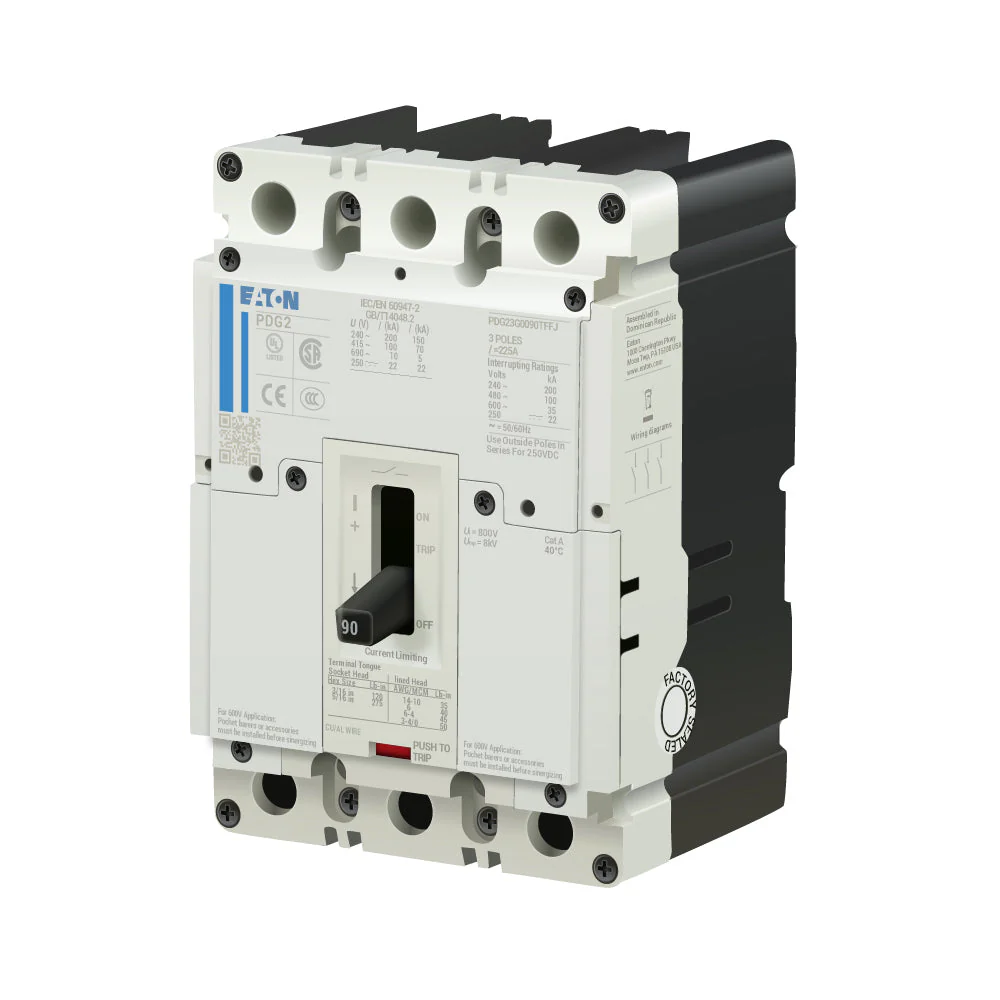

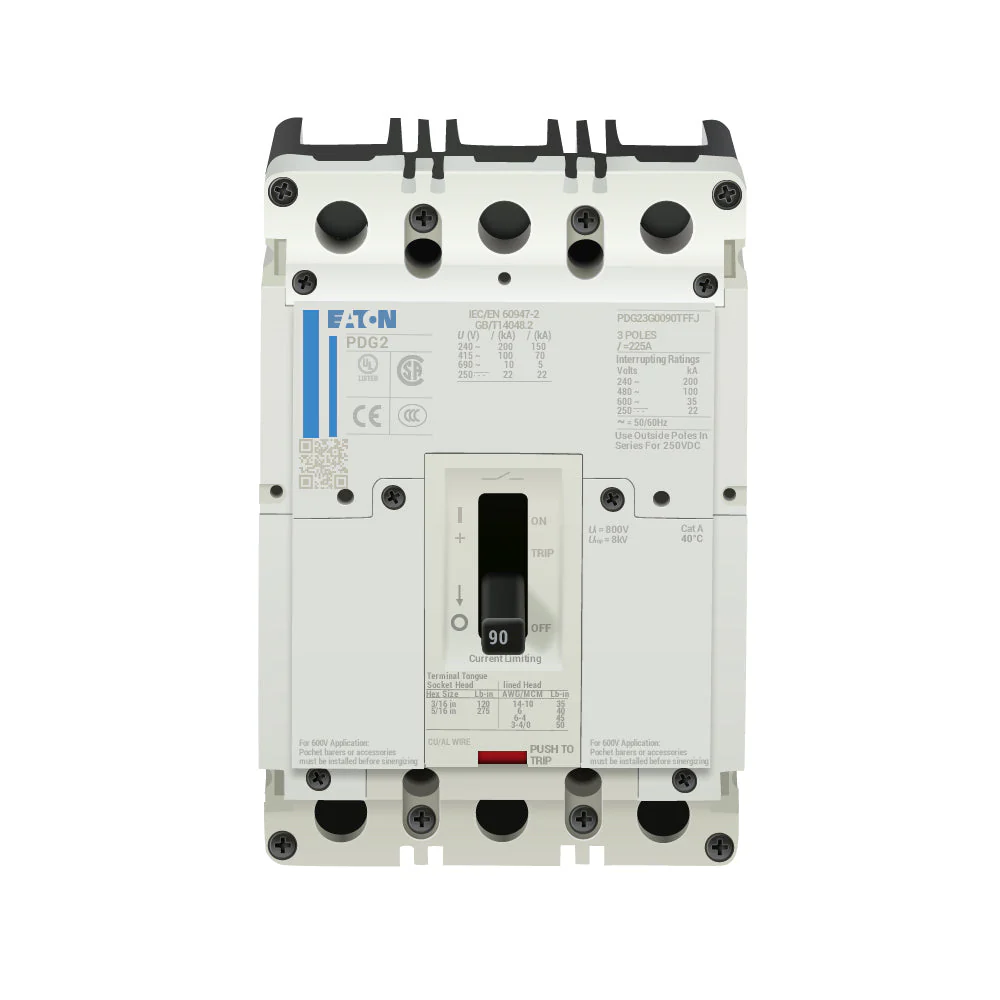

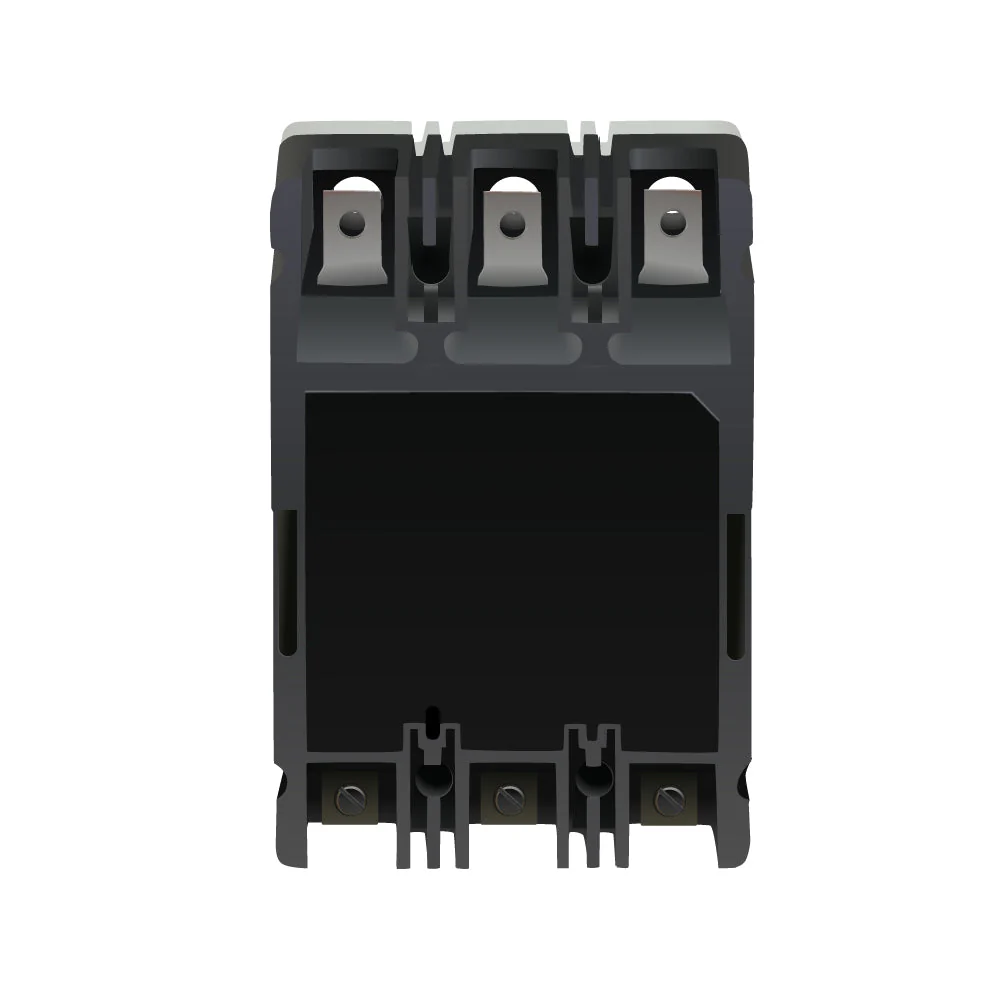

The Eaton PDG23G0090TFFL is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 600VAC. It has an interrupting rating of 35kAIC at 480VAC. The PDG23G0090TFFL has a bolt-on connection type and includes LI - long time and instantaneous trip functions.
$469.99
| Brand | Eaton |
| Series | PDG |
| Amperage | 90 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Approval | CSA, CCC, IEC, UL |
| Interrupting Rating | 35kAIC at 480VAC |
| Frame Type | PDG |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| For Use With | Motor Control Centers |
| Standards | RoHS |
| Temperature Rating | -4 to 158 °F |
| Circuit Breaker Type | PD2 Global |
| Max Wire Size | 1/0 AWG |
| Min Wire Size | 14 AWG |
| Mpn | PDG23G0090TFFL |
