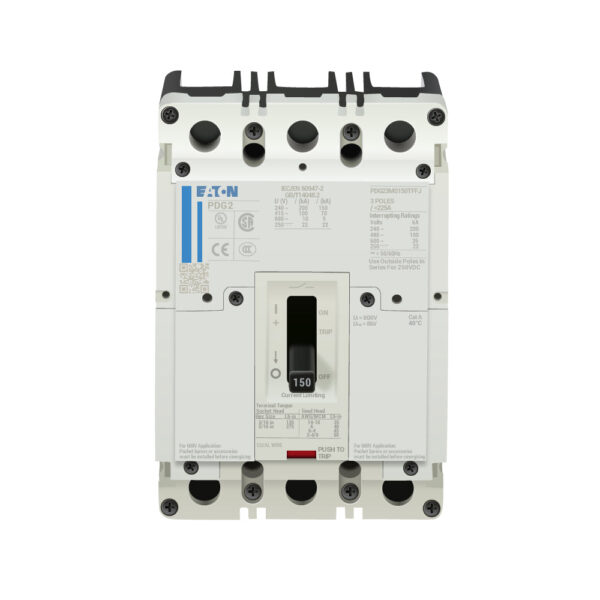

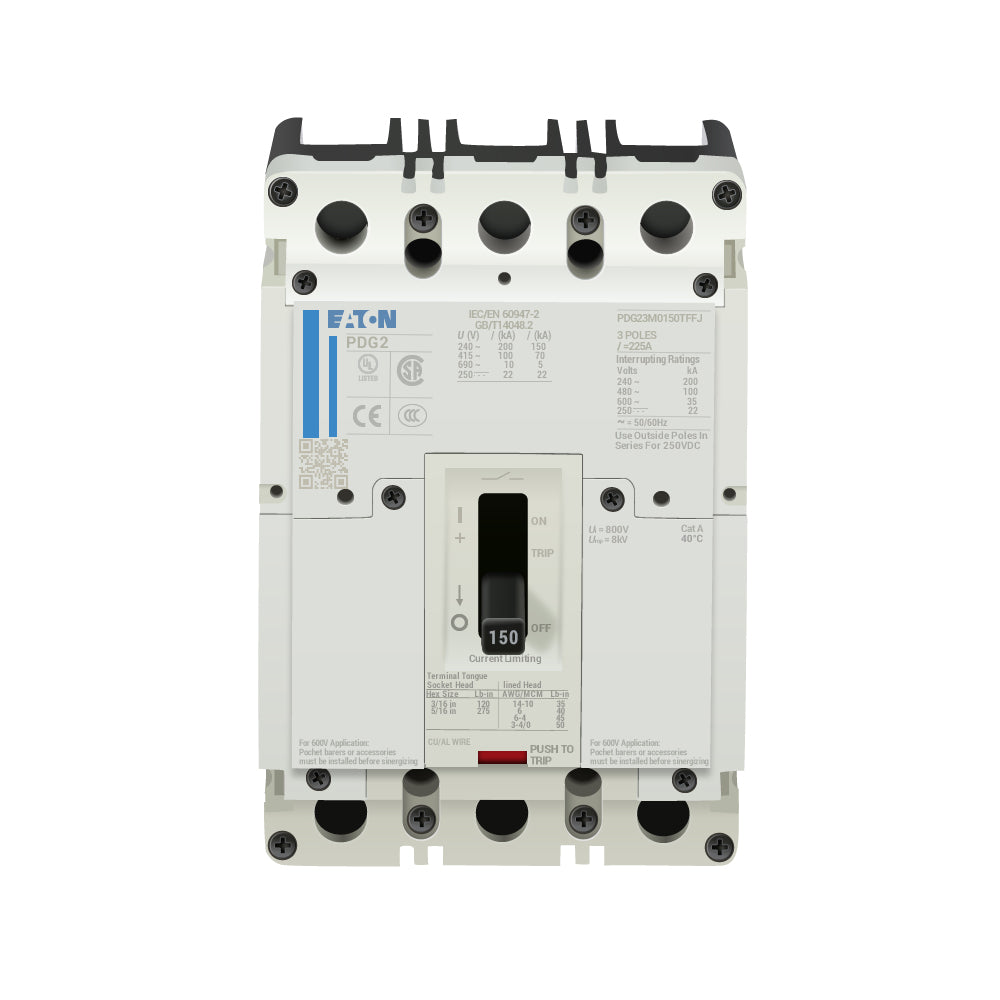

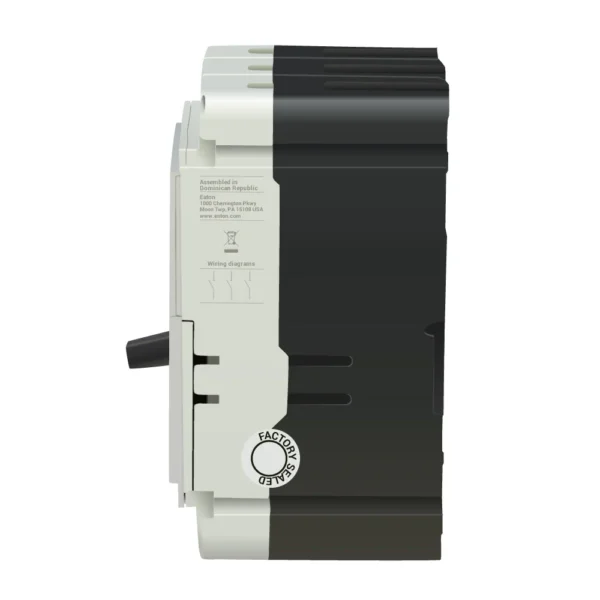

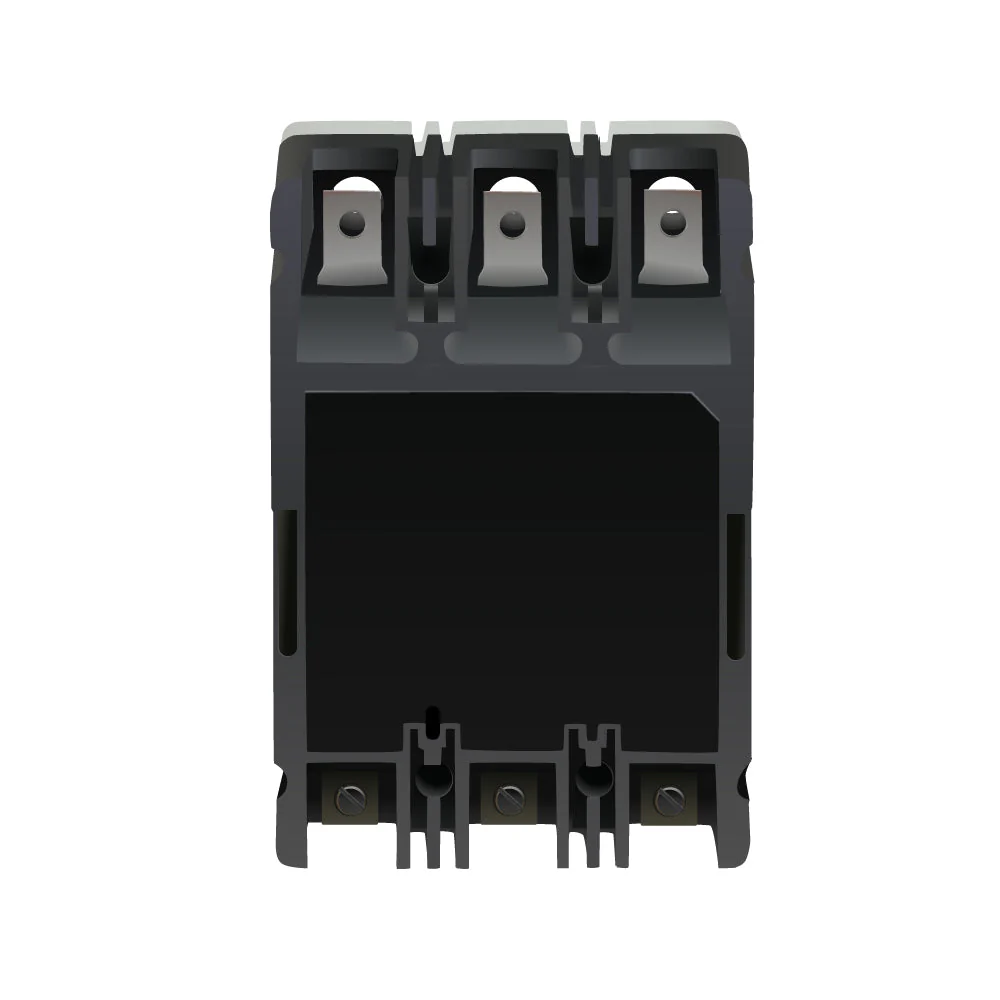

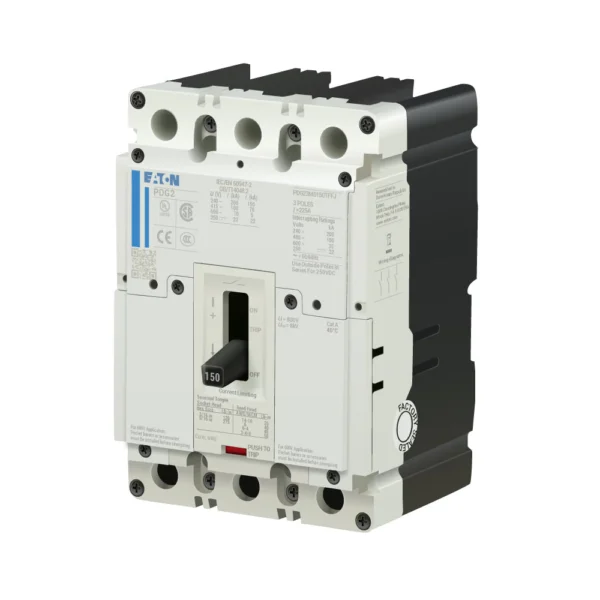

The Eaton PDG23M0150TFFJ is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 150 Amps and a voltage rating of 600VAC 250VDC. It has an interrupting rating of 65kAIC at 480VAC. The PDG23M0150TFFJ has a din rail mounting type and includes LI - long time and instantaneous functions.
$1,009.99
| Brand | Eaton |
| Series | PD |
| Amperage | 150 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Din Rail |
| Approval | IEC, CSA, CCC, UL |
| Interrupting Rating | 65kAIC at 480VAC |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI – Long Time and Instantaneous |
| Terminal Connection | Line and Load Lug |
| Standards | RoHS |
| Temperature Rating | -4 to 158°F |
| Circuit Breaker Type | PD2 |
| Max Wire Size | 1/0 AWG |
| Min Wire Size | 14 AWG |
| Mpn | PDG23M0150TFFJ |
