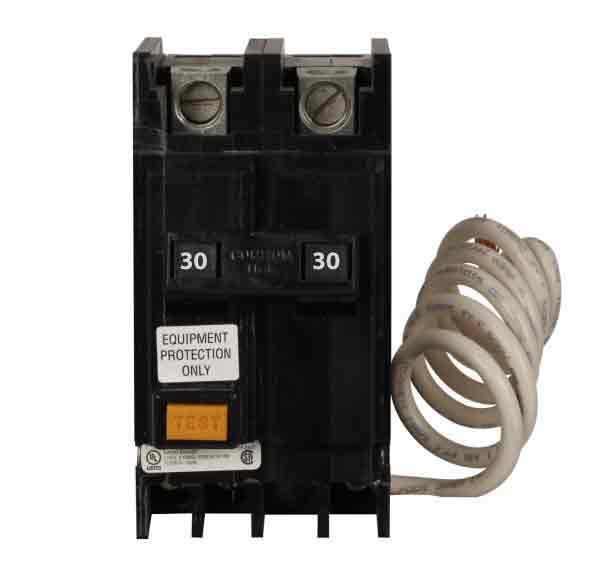

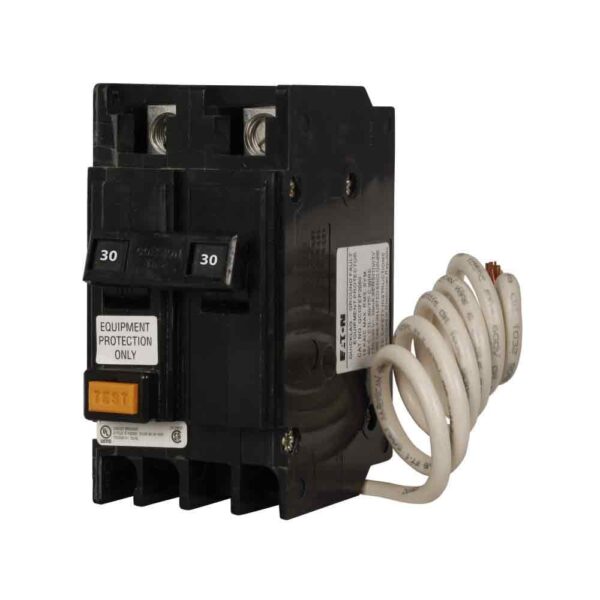

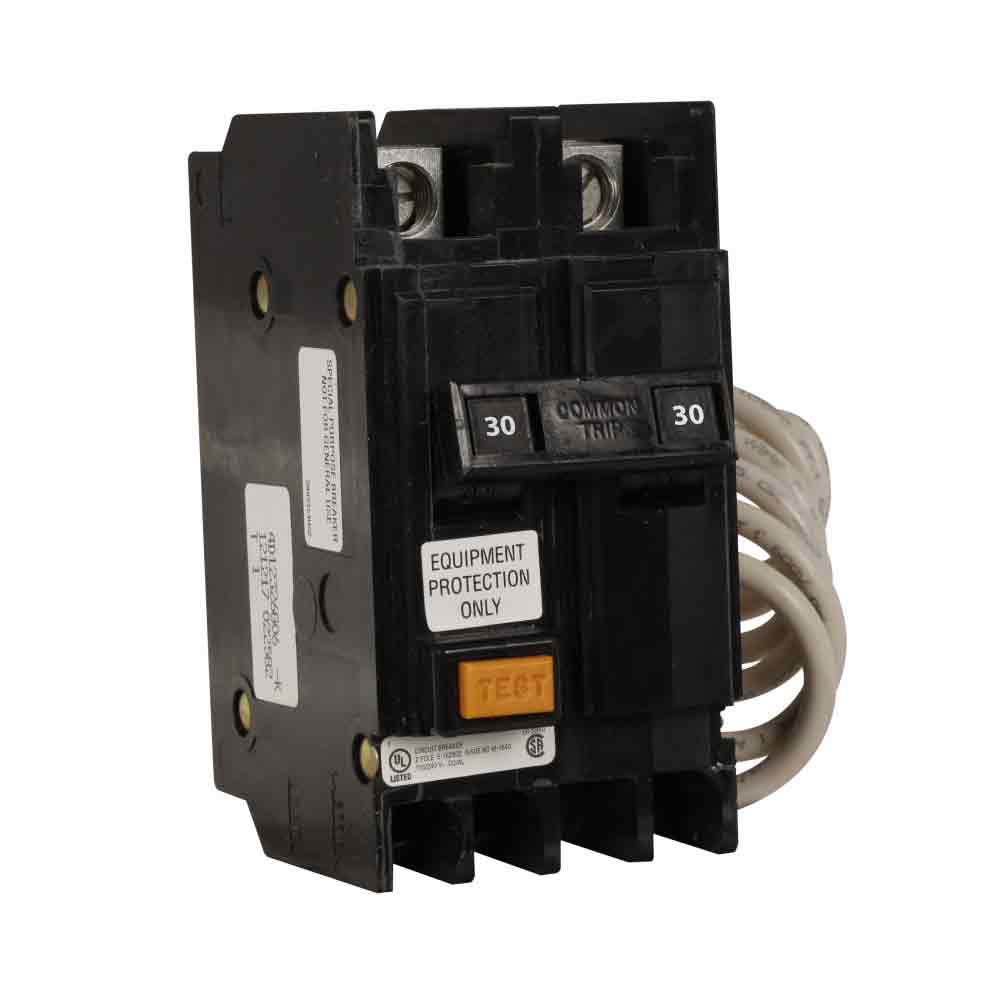

The Eaton QCGFEP2030 is a 2 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@120V. The QCGFEP2030 has a plug-on mounting type and includes long time and instantaneous trip functions.
$224.99
| Brand | Eaton |
| Series | QC |
| Amperage | 30 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-On |
| Approval | UL, CSA |
| Interrupting Rating | 10kAIC@120V |
| Frame Type | QC |
| Connection Type | Cable-In/Cable-Out |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | 14 to 4 AWG |
| Standards | HACR |
| Temperature Rating | 40°C |
| Circuit Breaker Type | GFCI |
| Mpn | QCGFEP2030 |
