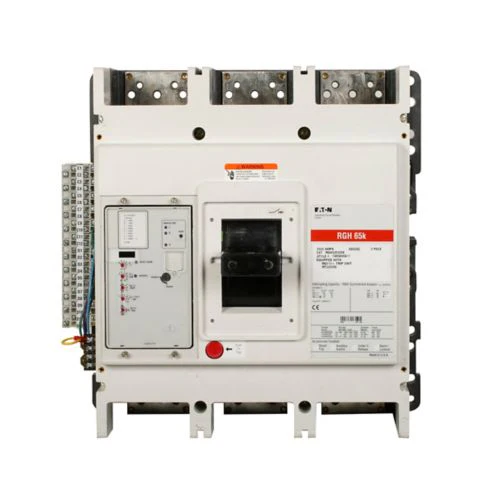

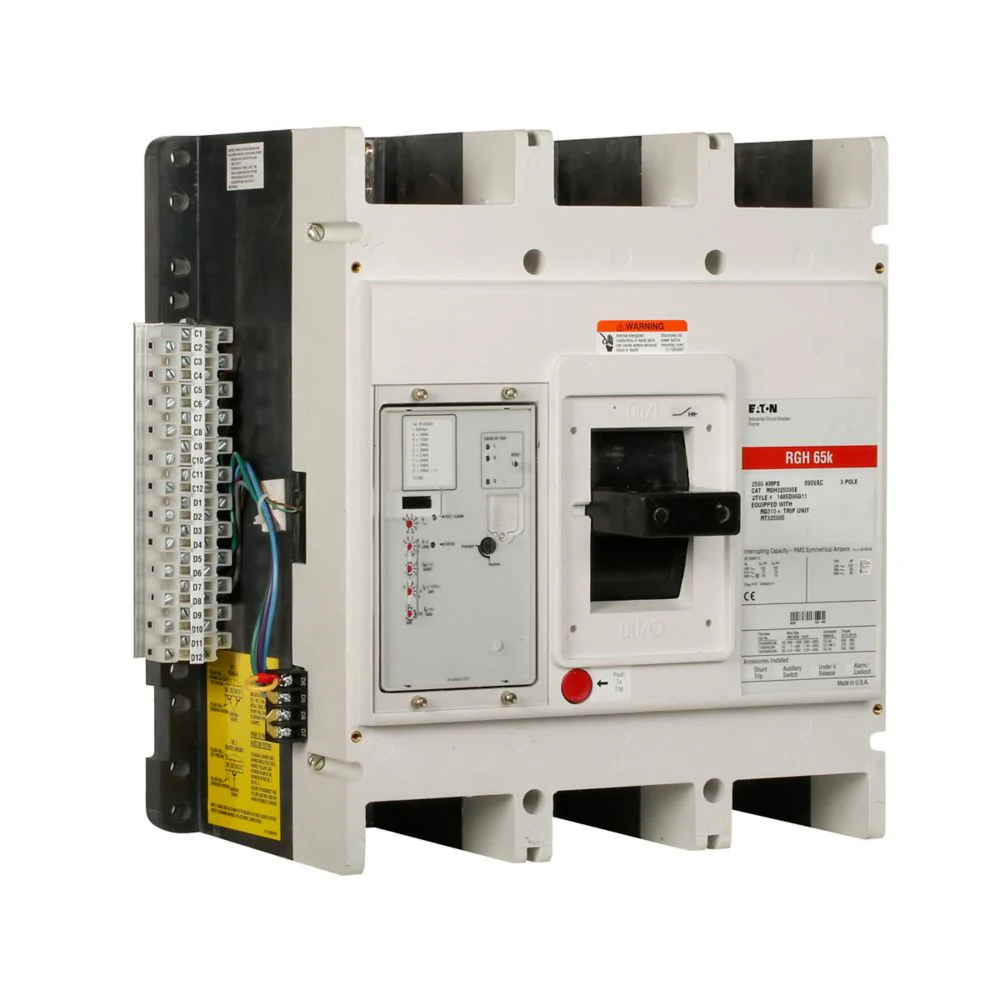

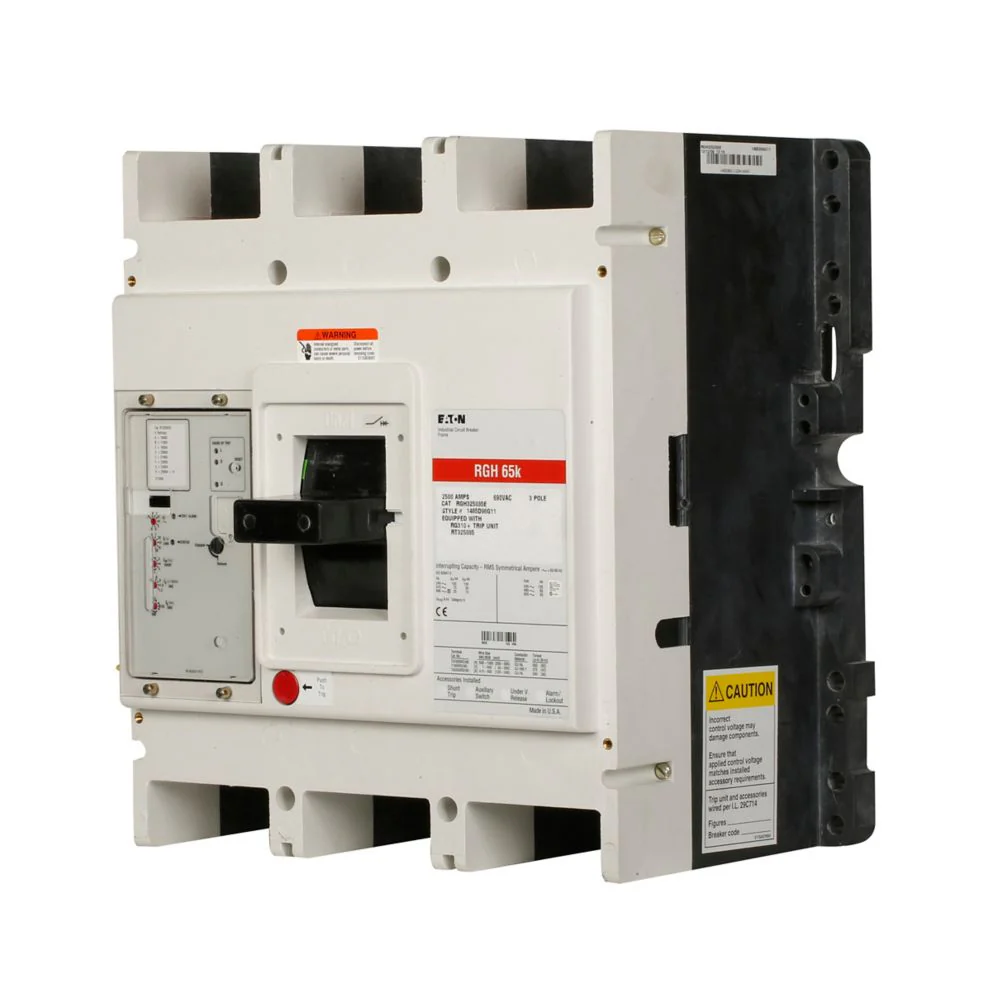

The Eaton RGH316035E is a 3 Pole solid state molded case circuit breaker with a current rating of 1600 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC 125kAIC at 240VAC. The RGH316035E has a bolt-on connection type and includes LSG - long time short time ground fault functions.
$12,999.99
| Brand | Eaton |
| Series | G |
| Amperage | 1600 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Approval | UL |
| Interrupting Rating | 65kAIC at 480VAC, 125kAIC at 240VAC |
| Frame Type | RG |
| Connection Type | Bolt-On |
| Protection | Solid State |
| Functions | LSG – Long Time, Short Time, Ground Fault |
| Terminal Connection | Line and load |
| Circuit Breaker Type | RG |
| Mpn | RGH316035E |
