Product Description

Eaton S811+ soft starter, 180 A, T-frame, Premium, 600 V rated, Level/Edge Sense, Three-pole, 24 V power, 47-63 Hz, 1-2 conductors, #3 AWG to 500 kcmil wire, 120 Vdc, 240 Vac, Modbus RTU, NEMA 0, LCD display, -30°C to -50°C

SKU: S811+T18P3S Categories: , , ,

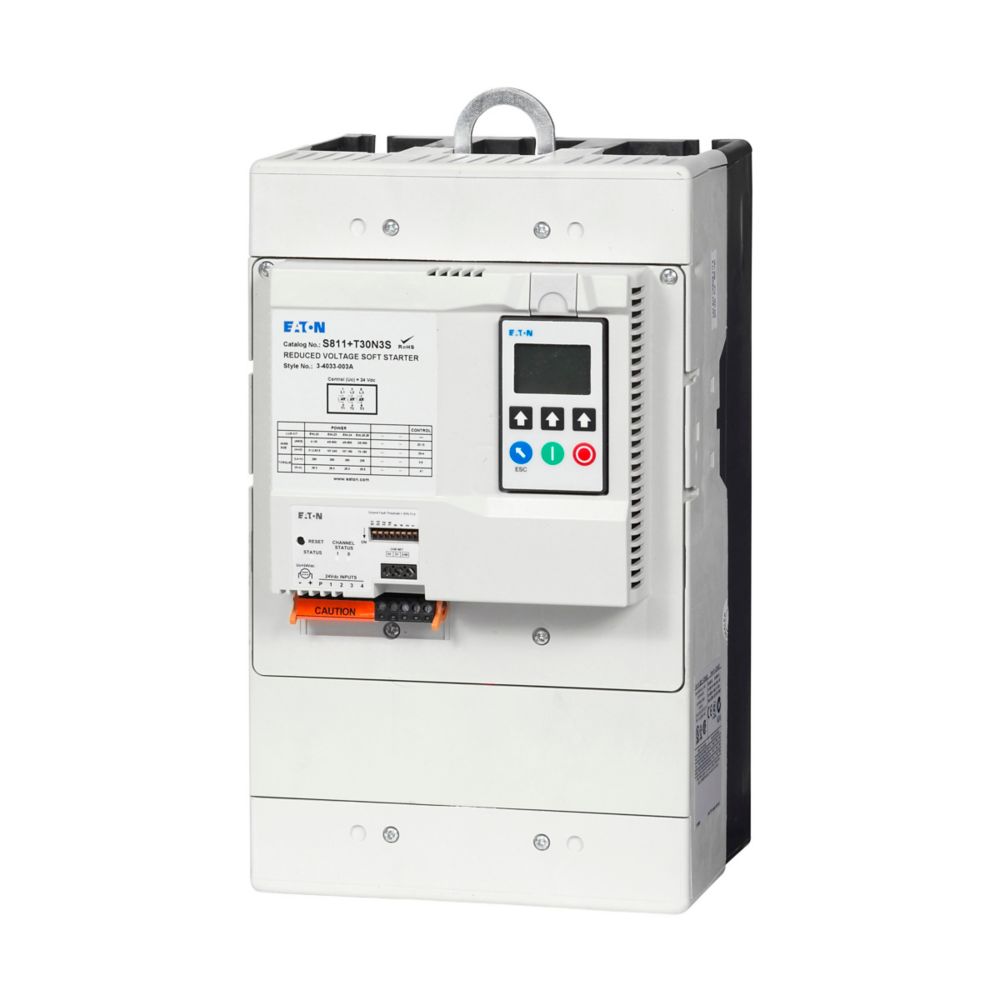

S811+T18P3S EATON SOFT STARTER

$5,456.99

Free shipping on orders over $200

SPECIFICATIONS

PRODUCT SPECIFICATIONS

OPTIONS
Inline or inside-the-delta wiring configuration
600V rated
Premium
Pump control and extended ramp
Level/edge sense
AC CURRENT - MAX
240 Vac
DC CURRENT - MAX
120 Vdc
CONFIGURATION
Inline (default) or inside the delta
WIRE SIZE
#3 AWG-500 kcmil
OPERATING TEMPERATURE - MIN
-30 °C
POWER SUPPLY
24 V
SIZE
NEMA 0
AMPERAGE RATING
180A
NUMBER OF POLES
Three-pole
DISPLAY MATERIAL
LCD
FRAME SIZE
T
TYPE
Soft starter
OPERATING VOLTAGE
200-600 V
USED WITH
Three-phase motors
OPERATING TEMPERATURE - MAX
50 °C
NEMA RATING
NEMA 0
FREQUENCY RATING
47-63 Hz
MODULE INTERFACE
Digital interface module
COMMUNICATION
Modbus RTU
