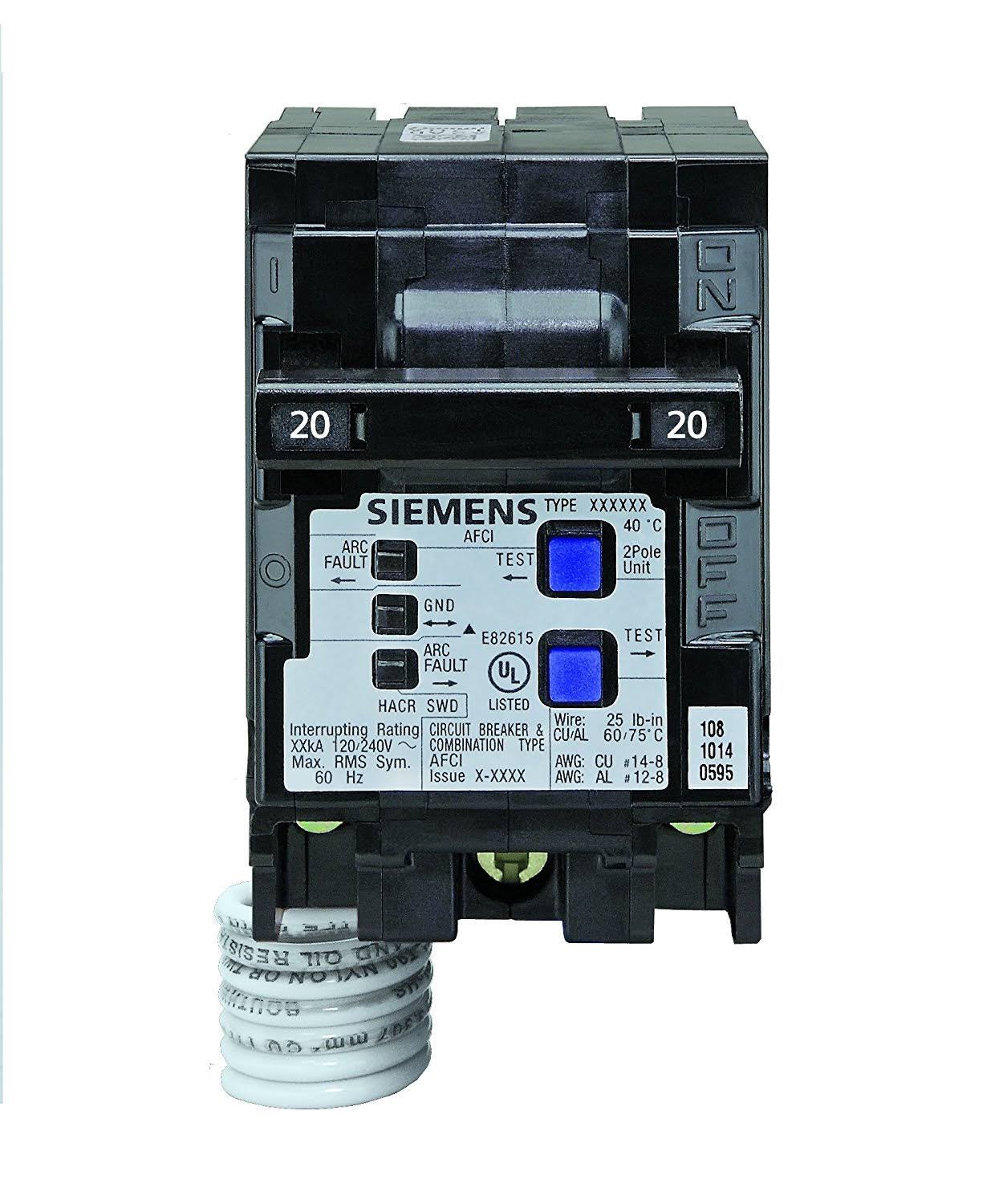

The Siemens Q220AFC is a 2 Pole molded case combination arc fault circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@240V. The Q220AFC has a plug-in connection type and includes long time and instantaneous trip functions.
$94.99
| Poles | 2 |
| Voltage Rating | 120 VAC |
| Current Rating | 20 Ampere |
| Interrupting Rating | 10 Kiloampere |
| Construction Feature | Combination |
| Mounting | Plug-In |
| Used On | Loadcenter |
| Size | 2 Inch W |
| Approval | UL 489- CSA C22.2 |
| Brand Name | SPEEDFAXâ„¢ |
| Additional Information | Frame Type QAF |
| Features/Benefits | The Combination Type AFCI Detects all Three Possible Types of Arc Fault: Line-to-Ground- Line-to-Neutral and Series- The Device is Intended to Mitigate the Effects of Arcing Faults by Functioning to De-Energize the Circuit When an Arc-Fault is Detected- Standard 1 Inch per Pole Format with Plug-In Design |
