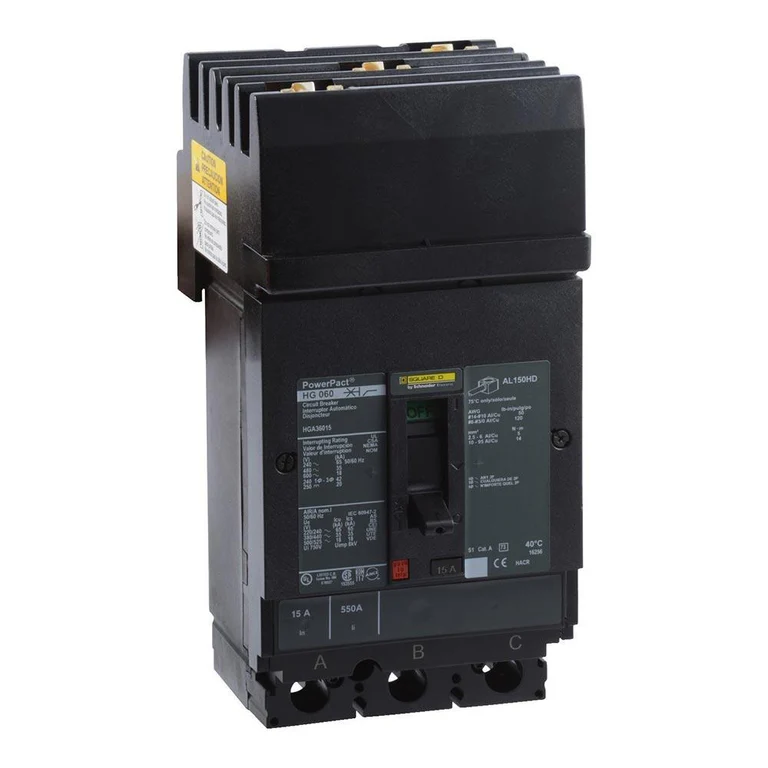

The Square D HGA36045 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 45 Amps and a voltage rating of 600VAC, 500VDC. It has an interrupting rating of 20kA at 250/500VDC, 65kA at 240VAC, 35kA at 480VAC, 18kA at 600VAC. The HGA36045 has a I-Line style plug-in connection type and includes long time and instantaneous functions.
$674.99
| Brand | Square D |
| Series | HGA |
| Amperage | 45 |
| Voltage | 250 V DC-600 V AC-500 V DC |
| Poles | 3 |
| Phase | 1 |
| Mounting Type | I-Line |
| Approval | CE, CSA, IEC, UL |
| Interrupting Rating | 20 kA 500 V DC, 65 kA 240 V AC, 35 kA 480 V AC, 18 kA 600 V AC, 20 kA 250 V DC |
| Frame Type | H |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous |
| Terminal Connection | I-Line Connection (ON End) - Lugs (OFF End) |
| Length (in) | 4.8 |
| Width (in) | 4.48 |
| Height (in) | 9.73 |
| Wire Gauge | AWG 14, AWG 3/0 Aluminium/Copper |
| For Use With | I-Line Panelboards and Switchboards |
| Temperature Rating | 104 °F (40 °C) |
| Mpn | HGA36045 |
