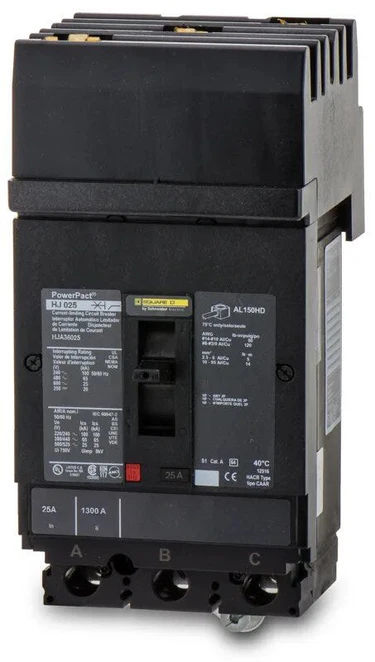

The Square D HJA36025 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 25 Amps and a voltage rating of 600VAC, 250VDC. It has an interrupting rating of 100kA@240VAC, 65kA@480VAC, 25kA@600VAC. The HJA36025 has a I-Line style plug-in connection type and includes long time and instantaneous trip functions.
$549.99
| Brand | Square D |
| Series | HJA |
| Amperage | 25 |
| Voltage | 600VAC, 250VDC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 100kA@240VAC, 65kA@480VAC, 25kA@600VAC |
| Frame Type | H |
| Connection Type | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Wire Gauge | AWG 14 to AWG 3/0 Aluminum/Copper |
| Standards | CE, UL, CSA, NEMA, NOM, IEC, RoHS |
| Temperature Rating | -13 to 158°F (-25 to 70°C) |
| Actuator Type | Toggle |
| Color | Black |
| Mpn | HJA36025 |
