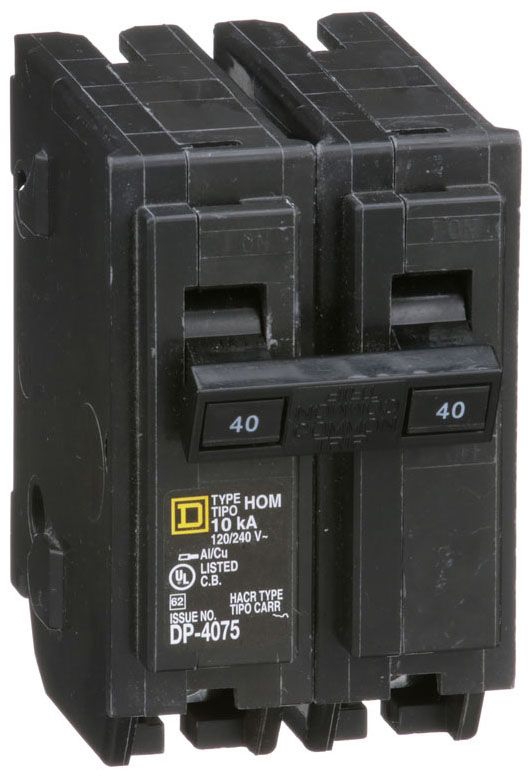

STANDARD TYPE 2 INCH WIDTH X 2.98 INCH DEPTH X 3.13 INCH HEIGHT SIZE LOAD CENTER USED ON 8 TO 2 AWG (ALUMINUM/COPPER) WIRE SIZE UL APPROVAL 120/240 VOLT AC VOLTAGE RATING PLUG-IN MOUNTING 10 KILOAMP INTERRUPTING RATING 40 AMP CURRENT RATING 2 POLE(S) BOX LUG TERMINAL TYPE HOMELINE[TM] BRAND ROHS COMPLIANT OPERATING TEMPERATURE RATING 104 DEG F NUMBER OF SPACES 2 APPLICATION HEATING AIR CONDITIONING REFRIGERATION
Price range: $8.50 through $15.99
| Type | Standard |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC |
| Current Rating | 40 Amp |
| Interrupting Rating | 10 Kiloamp |
| Terminal Type | Box Lug |
| Wire Size | 8 to 2 AWG (Aluminum/Copper) |
| Mounting | Plug-In |
| Used On | Load Center |
| Size | 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height |
| Approval | UL |
| Brand Name | Homelineâ„¢ |
| Additional Information | RoHS Compliant- Operating Temperature Rating 104 Deg F- Number of Spaces 2- Application Heating- Air Conditioning- Refrigeration |
| Features/Benefits | The main purpose of the Homeline Circuit Breaker product range is to ensure protection of low voltage electrical installations- REACh free of SVHC- Toxic heavy metal free- Mercury free- RoHS Compliant- Lifetime Warranty |
