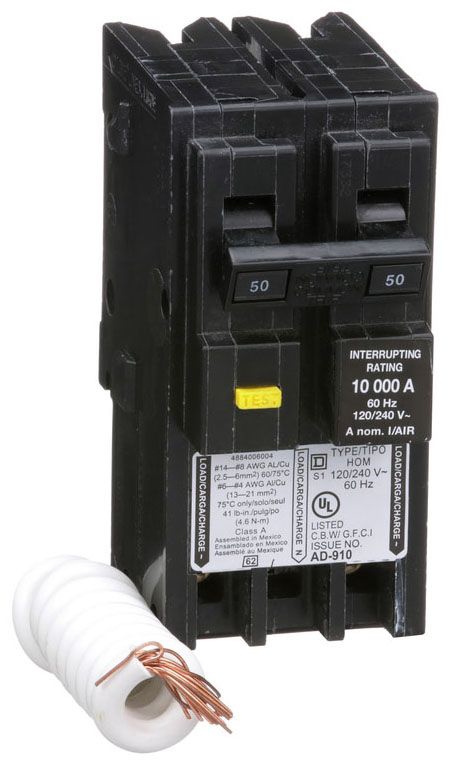

COMMON TRIP TYPE 2 INCH WIDTH X 2.98 INCH DEPTH X 3.13 INCH HEIGHT SIZE LOAD CENTER USED ON 12 TO 4 AWG (ALUMINUM) 14 TO 6 AWG (COPPER) WIRE SIZE UL APPROVAL 120/240 VOLT AC VOLTAGE RATING PLUG-IN MOUNTING 10 KILOAMP INTERRUPTING RATING 50 AMP CURRENT RATING 2 POLE(S) SCREW CLAMP TERMINAL TYPE 6 MILLIAMP TRIP SENSITIVITY HOMELINE BRAND ROHS COMPLIANT AMBIENT TEMPERATURE RATING 104 DEG F APPLICATION HEATING AIR CONDITIONING REFRIGERATION
$145.99
| Type | Common Trip |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC |
| Current Rating | 50 Amp |
| Interrupting Rating | 10 Kiloamp |
| Trip Sensitivity | 6 Milliamp |
| Terminal Type | Screw Clamp |
| Wire Size | 12 to 4 AWG (Aluminum)- 14 to 6 AWG (Copper) |
| Mounting | Plug-In |
| Used On | Load Center |
| Size | 2 Inch Width x 2.98 Inch Depth x 3.13 Inch Height |
| Approval | UL |
| Brand Name | Homelineâ„¢ |
| Additional Information | RoHS Compliant- Ambient Temperature Rating 104 Deg F- Application Heating- Air Conditioning- Refrigeration |
| Features/Benefits | HOM-GFI Circuit Breakers Provide Overload and Short Circuit Protection- Combined with Class a Ground Fault Protection- Class a Denotes a Ground Fault Circuit Interrupter that will Trip When a Fault Current to Ground is 6 Milliamperes or More- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- Green Premium Product- Lifetime Limited Warranty |
