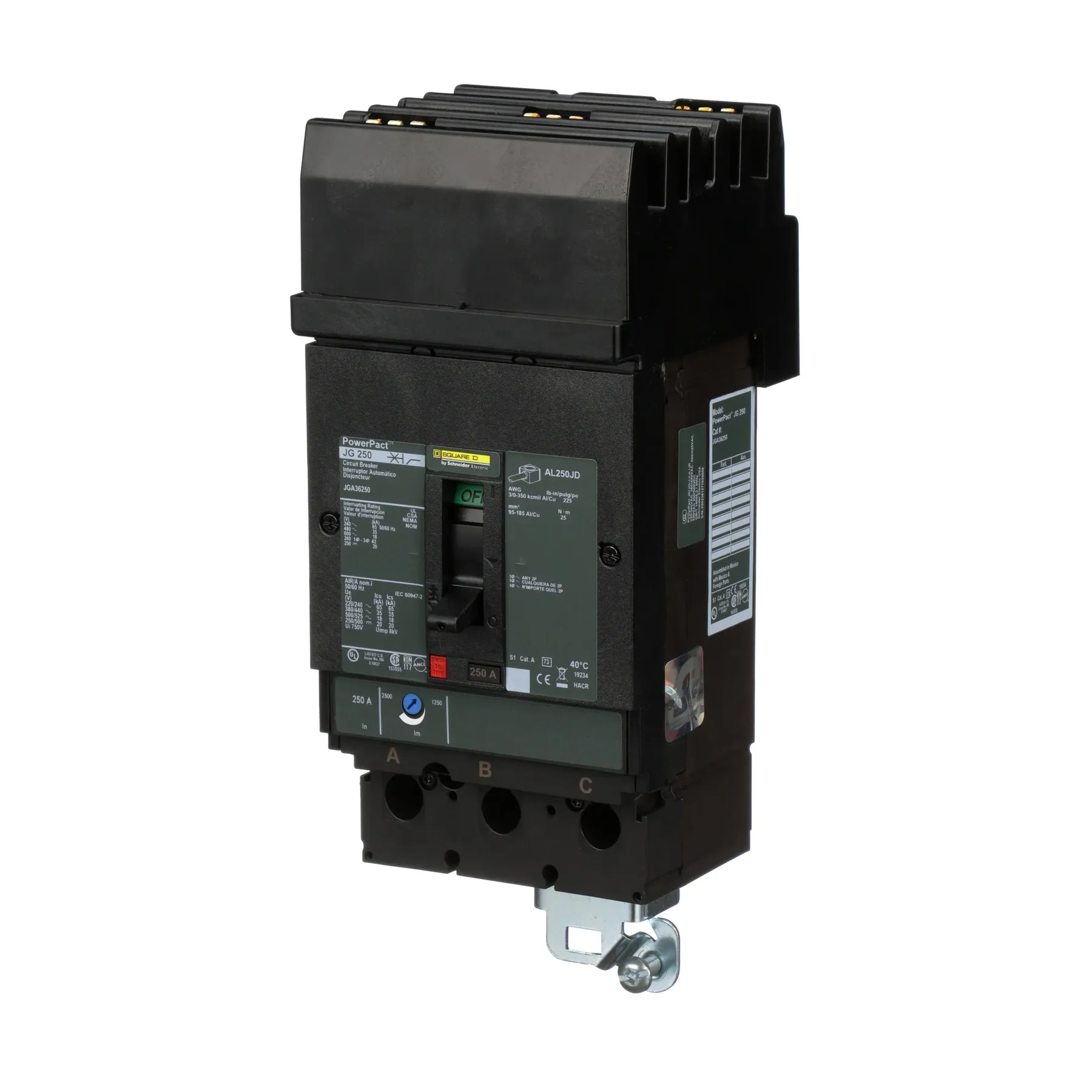

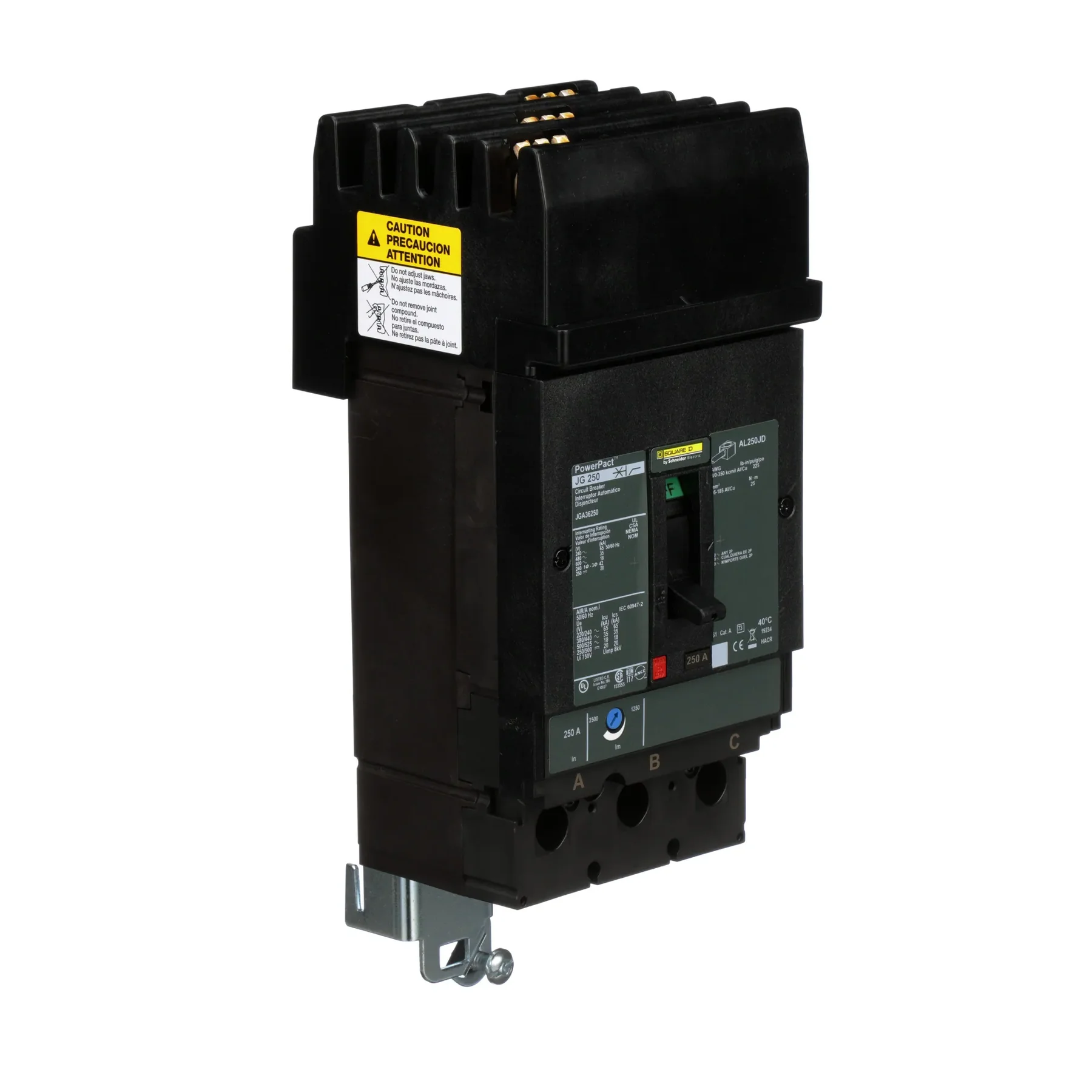

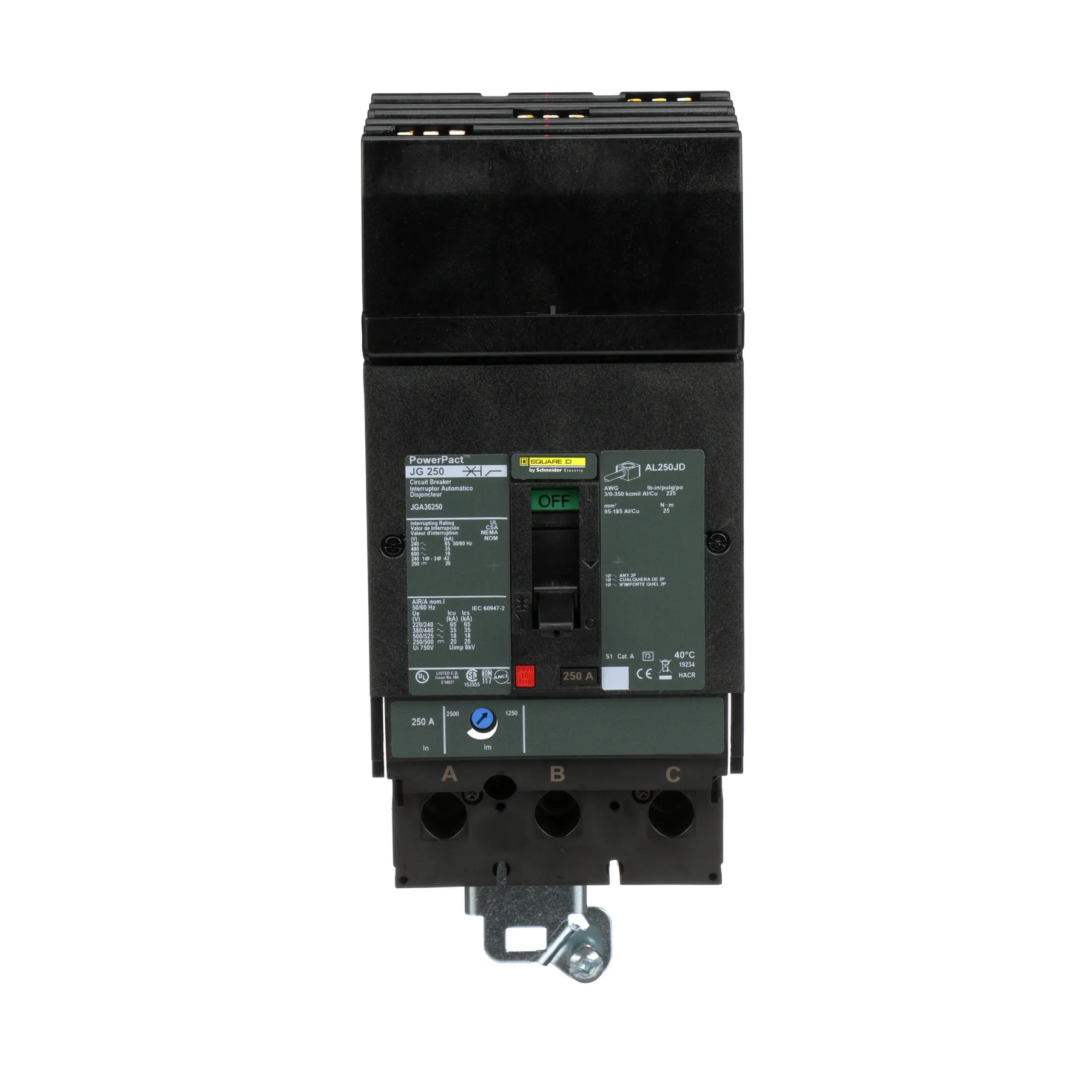

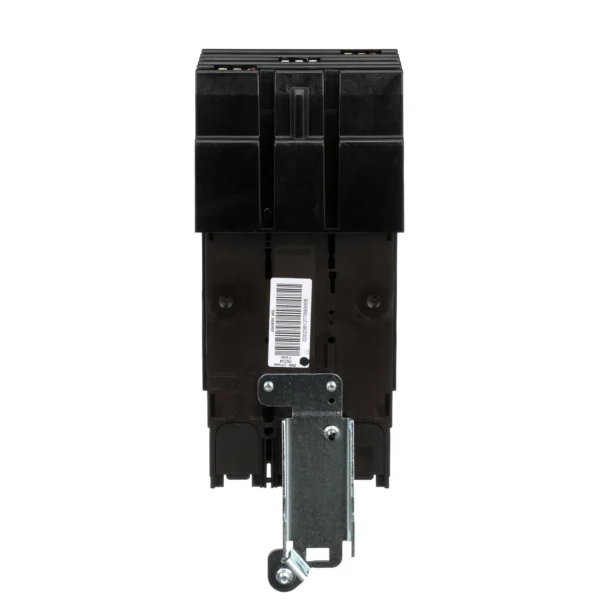

JGA36250 is a J frame 3 pole 250 Ampere powerpact standard molded case circuit breaker with maximum voltage rating of 240/415 Vac At 50/60 Hz comes with adjustable magnetic trips 1250 To 2500 ampere general application power distribution used on class 612 i-line[R] panelboard/switchboard.
$1,899.99
| Type | Thermal Magnetic- Current Limiting |
| Voltage Rating | 600 Volt AC 50/60 Hertz- 250 Volt DC |
| Current Rating | 250 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 18 Kiloamp at 600 Volt AC- 20 Kiloamp at 250 Volt DC |
| Trip Setting | 1250 to 2500 Amp |
| Application | Distribution |
| Used On | Class 611/612 I-Line Panelboard and Switchboard |
| Approval | UL- CSA- CE |
| Brand Name | PowerPactâ„¢ |
| Model | JG |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 7.52 Inch Height- Frame Type J- Terminal Type I-Line Connection Line Lug Load- Control Type Toggle- Terminal Wire Size 3/0 AWG to 350 KCMIL (Copper/Aluminum)- Continuous Current Rating 80 Percent- Phase Connection Type ABC- Operation Ambient Air Temperature Rating 28 to 158 Deg F- Applicable Standard IEC |
| Features/Benefits | The Powerpact J-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits- J-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units- All Powerpact J-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault- All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker- HACR Rated- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Green Premium Product |
