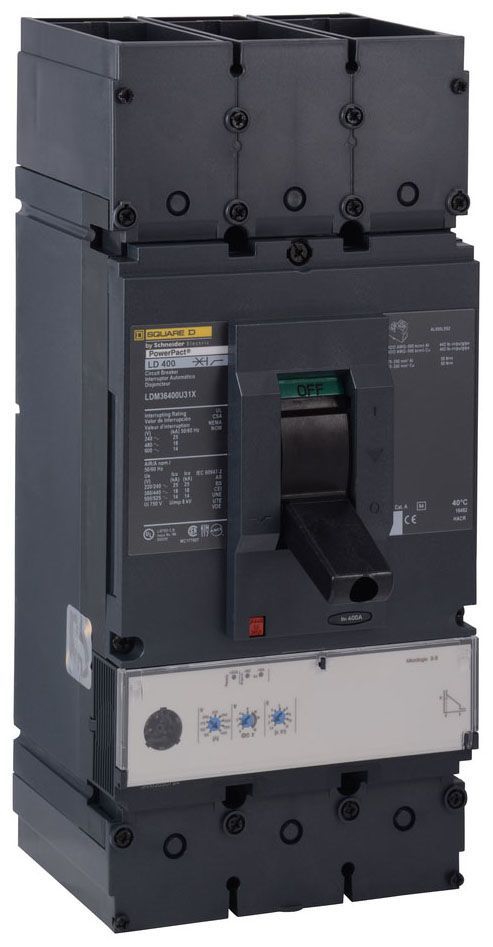

The Square D LJM36400U31X is a 3 Pole solid state molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kA@480V. The LJM36400U31X has a unit mounting type and includes LI - long time and instantaneous functions.
$3,849.99 – $8,478.00
| Brand | Square D |
| Series | LJM |
| Amperage | 400 |
| Voltage | 600VAC |
| Poles | 3 |
| Phase | 3 |
| Mounting Type | Unit |
| Interrupting Rating | 65kA@480V |
| Frame Type | L |
| Connection Type | Bolt-On |
| Protection | Solid State |
| Functions | LI – Long Time and Instantaneous |
| Terminal Connection | line side lug |
| Wire Gauge | AWG 2/0 to 500KCmil Aluminum/Copper |
| Standards | UL, CSA, NEMA, NOM, IEC, RoHS |
| Actuator Type | Toggle |
| Color | Black |
| Mpn | LJM36400U31X |
