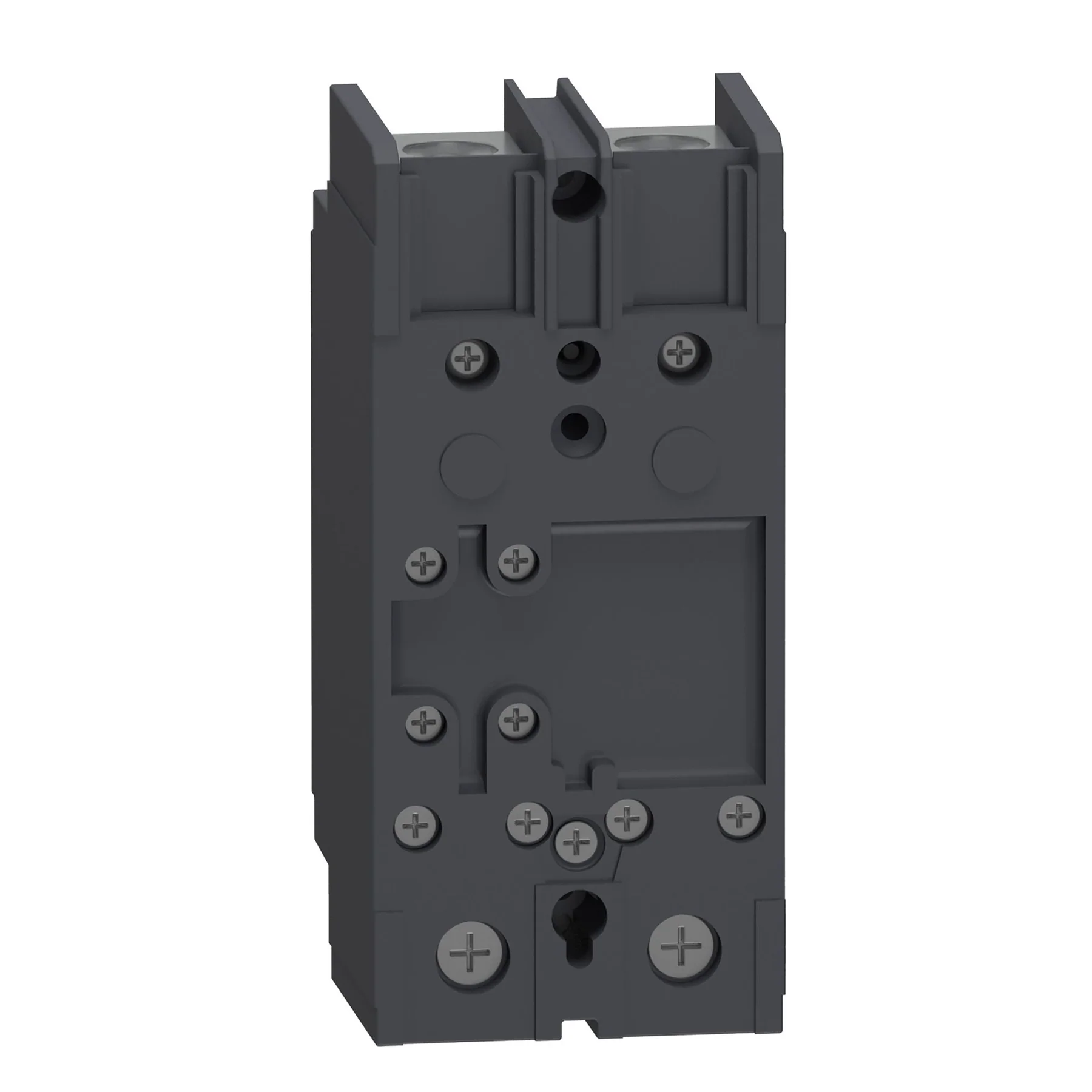

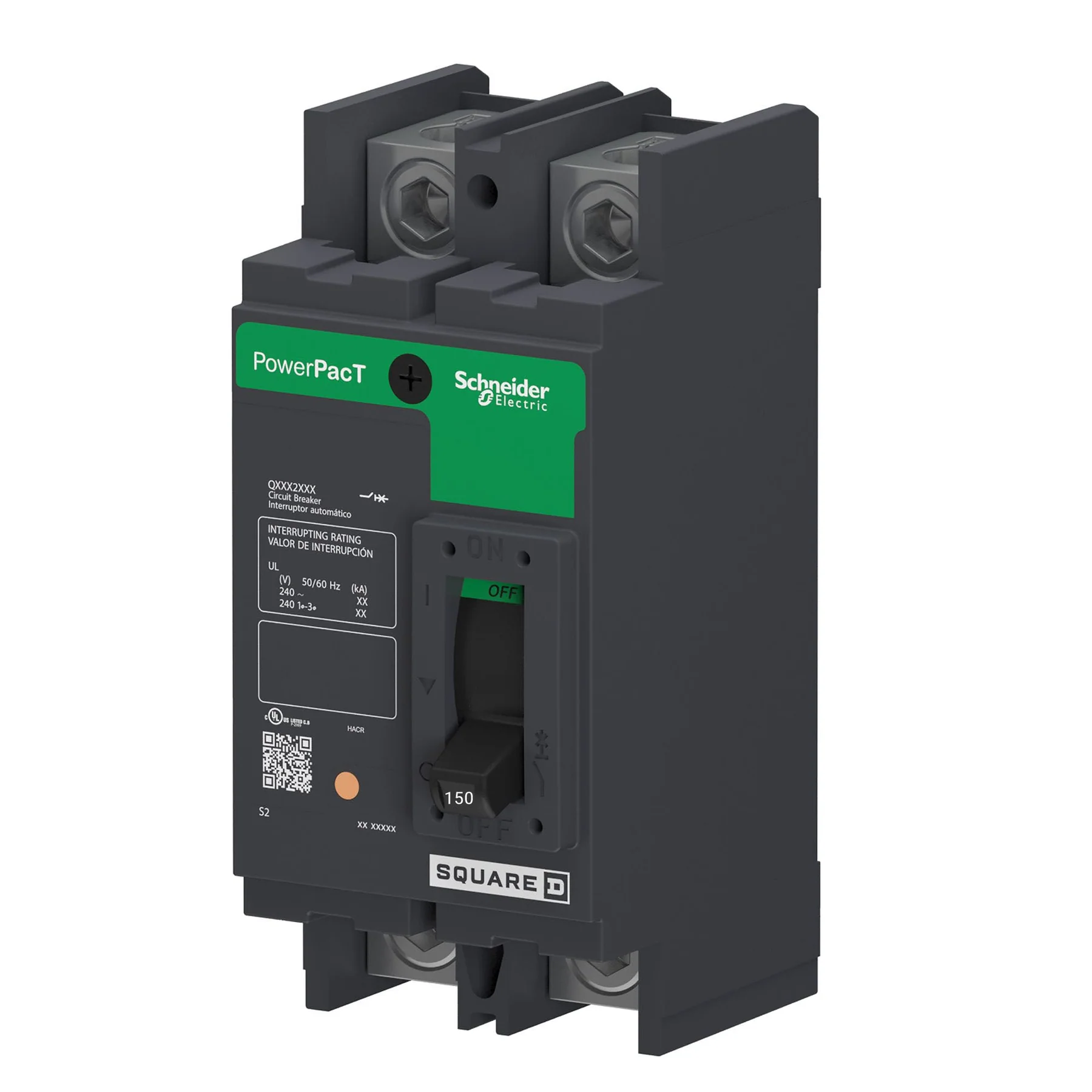

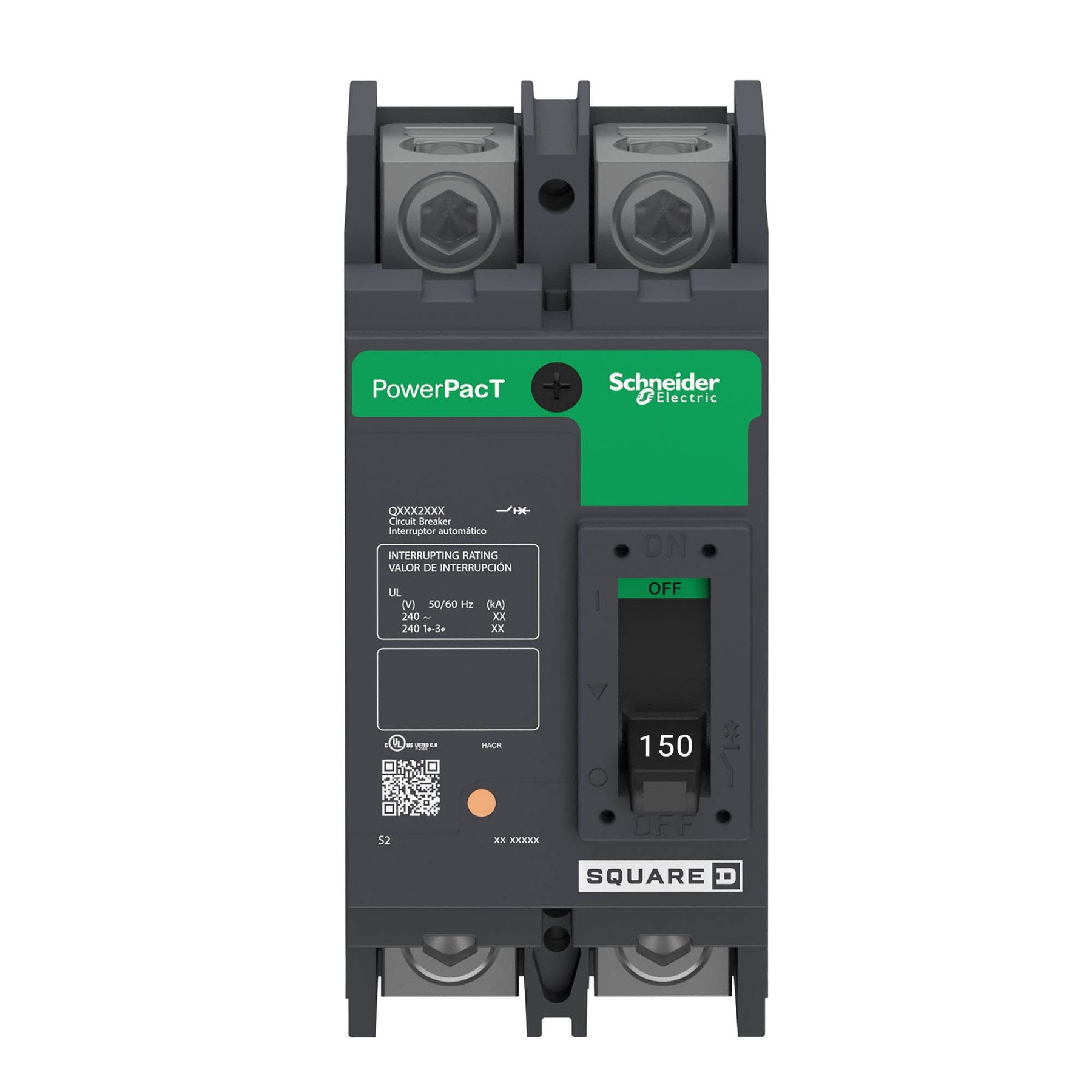

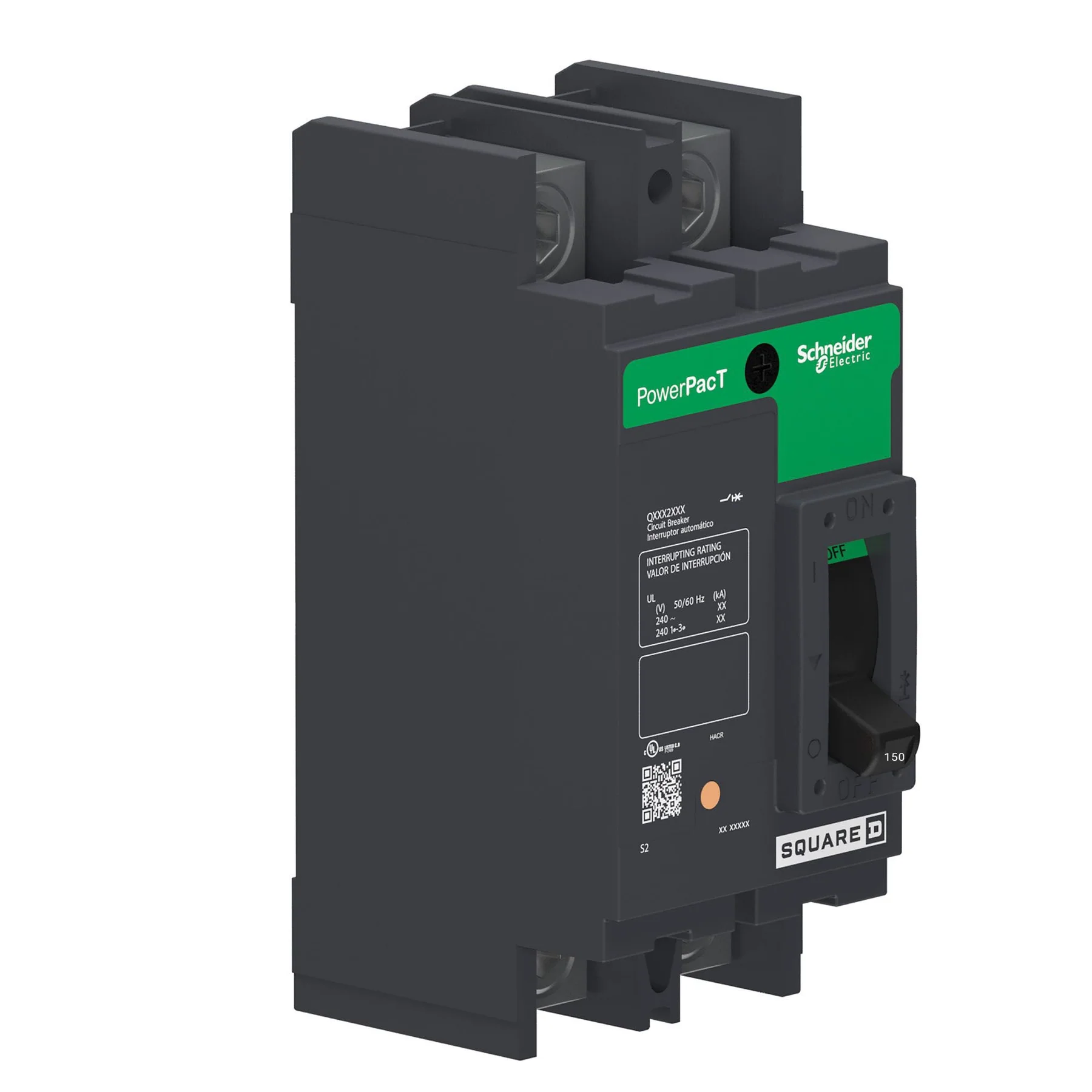

The Square D QBL22150 is a Molded Case Circuit Breaker. This type QBL circuit breaker is a member of The Powerpact family. The QBL22150 is a 2 pole 240 Volt 150 amp rated circuit breaker with an AIC rating of 10kA@240V. The QBL22150 is manufactured by Schneider Electric. The QBL22150 uses a Free Standing connection. Includes Thermal Magnetic protection.
$335.00
| Type | Molded Case- Thermal Magnetic |
| Frame Type | Q |
| Voltage Rating | 240 VAC |
| Maximum AC Voltage Rating | 240 V |
| Current Rating | 150 Ampere |
| Number of Poles | 2 |
| Interrupting Rating | 10 Kiloampere at 240 VAC (UL/CSA/NOM)- 10/5 Kiloampere at 240 VAC (IEC) |
| Terminal Type | Line Lug- Load Lug |
| Size | 3 Inch W x 3.93 Inch D x 6.47 Inch H |
| Approval | UL- CSA- CE |
| Brand Name | PowerPact™ |
| Model | QB |
| Additional Information | Wire Size 4 AWG to 300 KCMIL (Aluminum/Copper)- Mounting Type Unit Mount- Application Provides Overload and Short Circuit Protection- Used On Panelboards and Switchboards |
| Features/Benefits | Returnable- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Halogen-Free- Green Premium Product |
