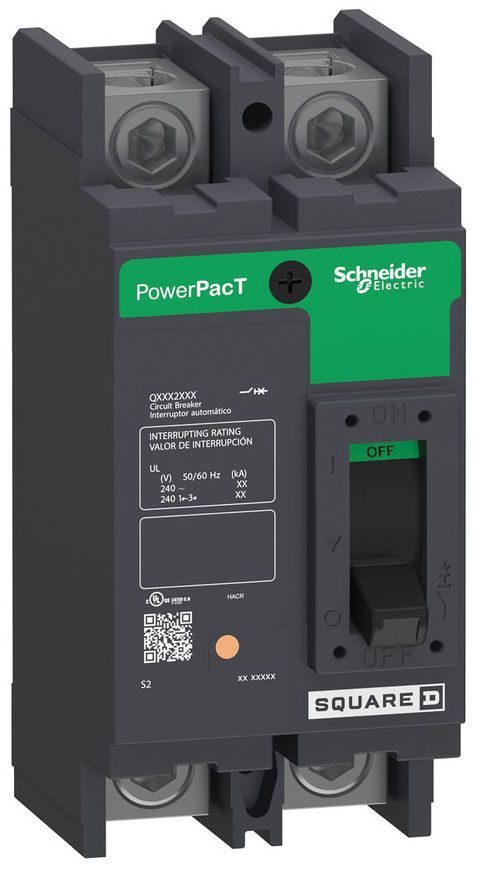

The Square D QDL22150 is a Molded Case Circuit Breaker. This type QDL circuit breaker is a member of The Powerpact family. The QDL22150 is a 2 pole, 240 Volt, 150 amp rated circuit breaker, with an AIC rating of 25kA@240V. The QDL22150 is manufactured by Schneider Electric, Square D. The QDL22150 uses a Free Standing connection. Includes Thermal Magnetic protection.
$334.99
| Type | Thermal Magnetic- Molded Case |
| Number of Poles | 2 |
| Voltage Rating | 240 VAC at 50/60 Hz (UL/CSA/NOM)- 240 VAC (IEC) |
| Current Rating | 150 Ampere |
| Interrupting Rating | 25 Kiloampere at 240 VAC (UL/CSA/NOM)- 10 Kiloampere at 240 VAC (IEC) |
| Terminal Type | Line Lug- Load Lug |
| Wire Size | 4 AWG to 300 KCMIL (Aluminum/Copper) |
| Used On | Panelboard/Switchboard |
| Size | 3 Inch W x 3.93 Inch D x 6.47 Inch H |
| Approval | UL- CSA |
| Brand Name | PowerPact™ |
| Additional Information | Frame Type Q- Trip Setting 1200 to 2400 Ampere |
| Features/Benefits | Powerpact® Q-Frame Circuit Breakers are Used for Overcurrent Protection and Switching on AC Systems- They are Designed for 240 VAC Applications- RoHS/REACH Compliant- Mercury-Free- Green Premium Product- Halogen-Free- PVC-Free |
