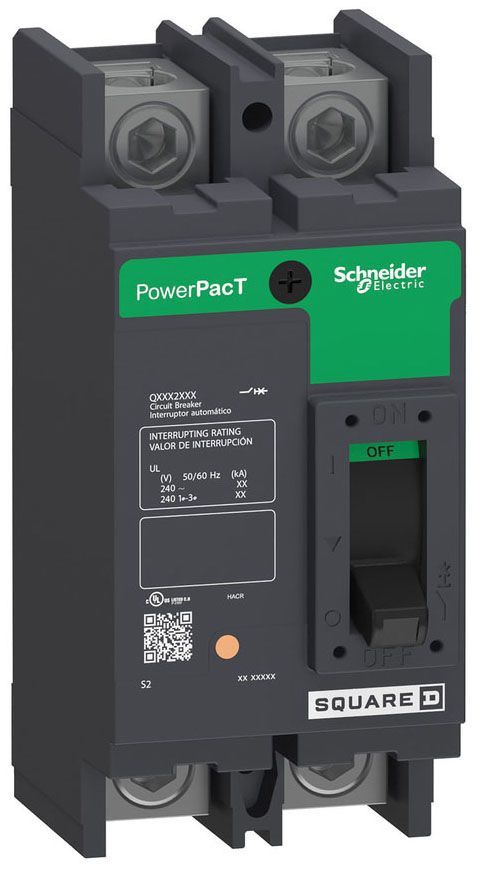

The Square D QDL22200 is a Molded Case Circuit Breaker. This type QDL circuit breaker is a member of The Powerpact family. The QDL22200 is a 2 pole, 240 Volt, 200 amp rated circuit breaker, with an AIC rating of 25kA@240V. The QDL22200 is manufactured by Schneider Electric, Square D. The QDL22200 uses a Free Standing connection. Includes Thermal Magnetic protection.
$334.99
| Type | Molded Case- Thermal Magnetic |
| Frame Type | Q |
| Voltage Rating | 240 Volt AC |
| Current Rating | 200 Amp |
| Number of Poles | 2 |
| Interrupting Rating | 25 Kiloamp at 240 Volt AC |
| Terminal Type | Line Lug- Load Lug |
| Size | 3 Inch Width x 3.93 Inch Depth x 6.47 Inch Height |
| Approval | UL- CSA |
| Maximum AC Voltage Rating (V) | 240 |
| Brand Name | PowerPactâ„¢ |
| Model | QDL |
| Additional Information | RoHS Compliant- Wire Size 4 AWG to 300 KCMIL (Aluminum/Copper)- Applicable Standard IEC- Trip Setting 1200 to 2400 Amp |
| Features/Benefits | Powerpact Q-Frame Circuit Breakers are Used for Overcurrent Protection and Switching on 240 VAC Applications- Returnable- RoHS/REACH Compliant- Mercury-Free- PVC-Free- Halogen-Free- Green Premium Product |
