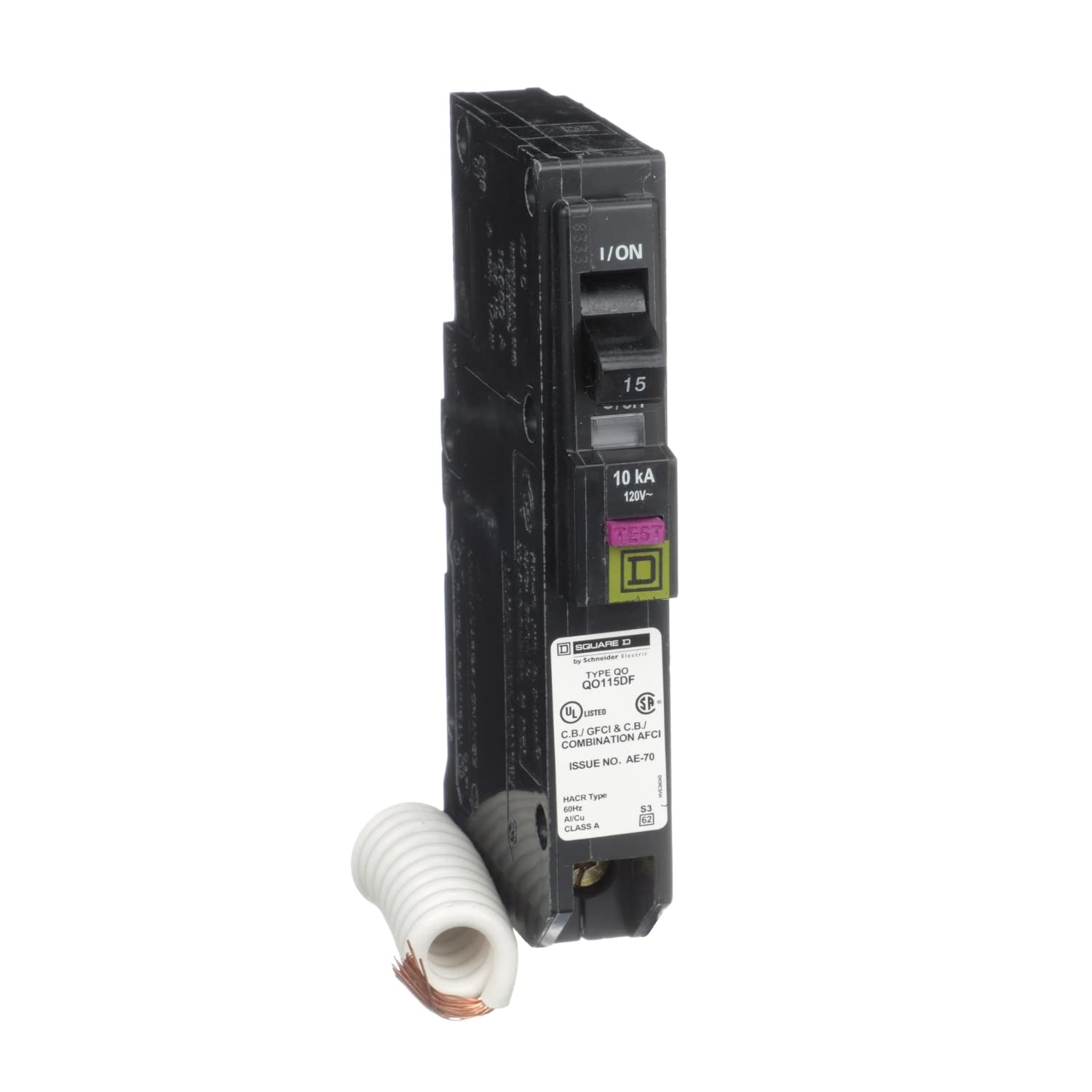

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a dual function feature with pigtail. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
$30.00 – $52.99
Main
Product
Miniature circuit-breaker
Range
QO
Current Rating
15 A
Voltage Rating
120 V AC
Mounting Type
Plug-in
Number of Poles
1P
Circuit Breaker Type
Combination ARC-fault and ground fault
Ratings
HACR rated
Electrical Connection
Pressure plate
Connections Terminals
Pigtail neutral
Complementary
Interrupt Rating
10 kA 120 V AC 50/60 Hz
Number of Panel Spaces
1
Wire Size
AWG 14…AWG 8 copper or aluminium
Tightening Torque
40.71 lbf.in (4.6 N.m)
Height
4.76 in (121 mm)
Width
0.75 in (19 mm)
Depth
2.91 in (74 mm)
Net Weight
0.60 lb(US) (0.272 kg)
Environment
Certifications
UL Listed
CSA
Ambient Rating
104 °F (40 °C)
Ordering and shipping details
Category
06303-QO SINGLE POLE ARC FAULT CIRCUIT BREAKER
Discount Schedule
DE2A
GTIN
785901401605
Returnability
Yes
Country of origin
MX
