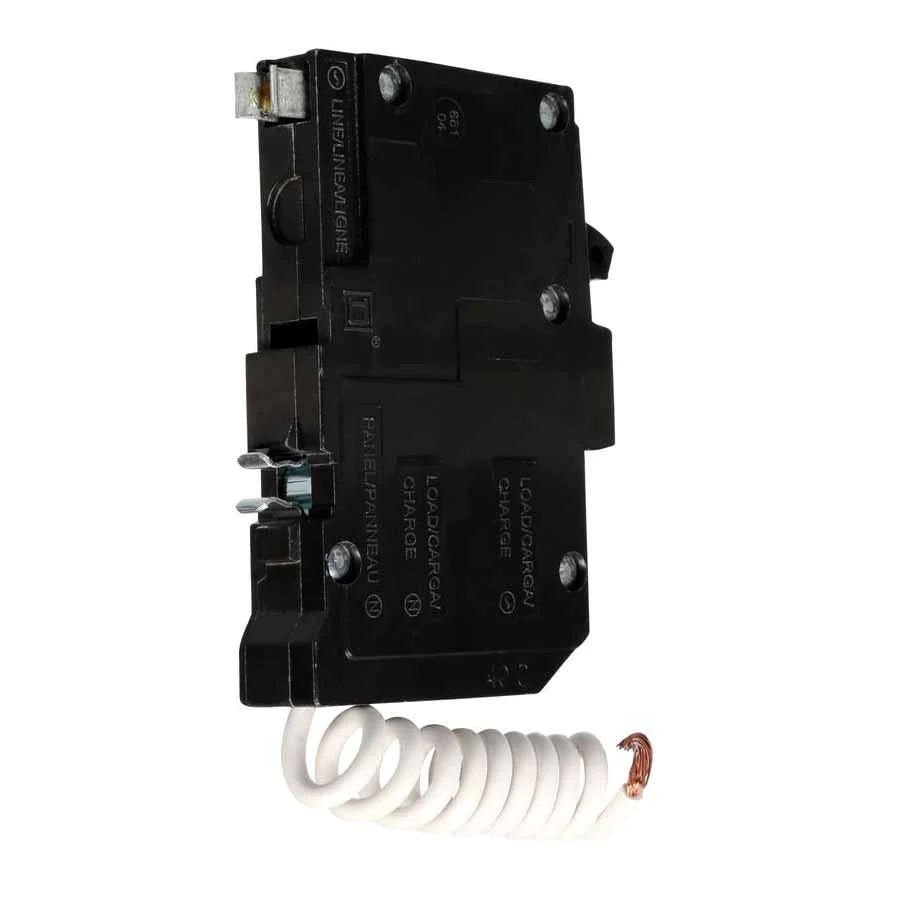

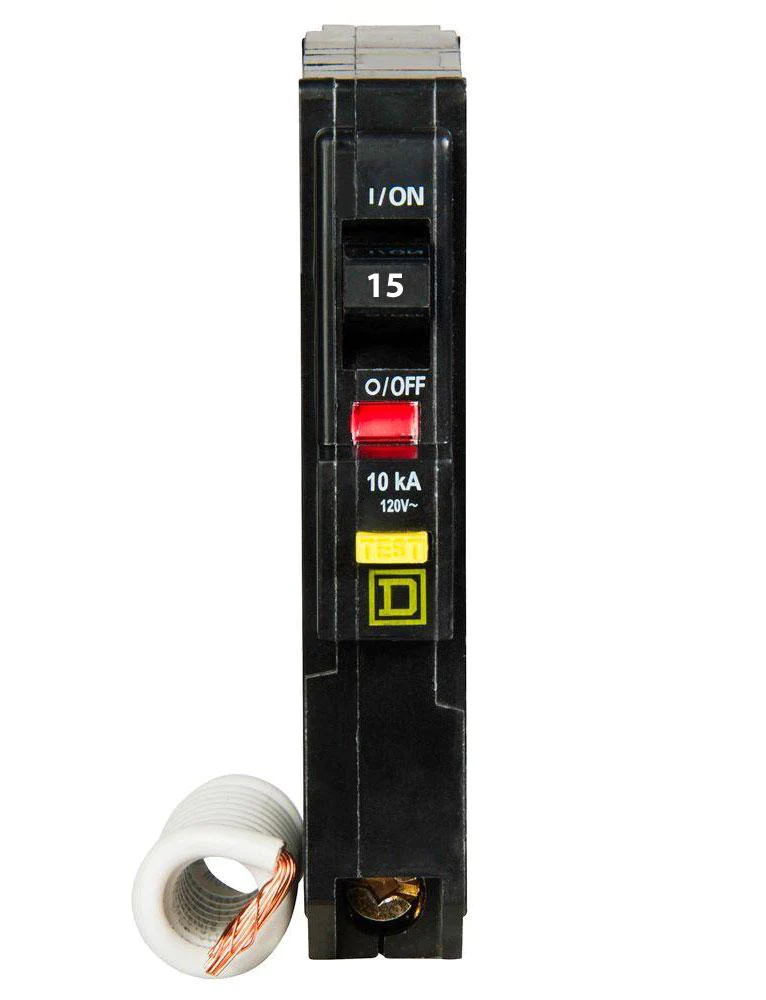

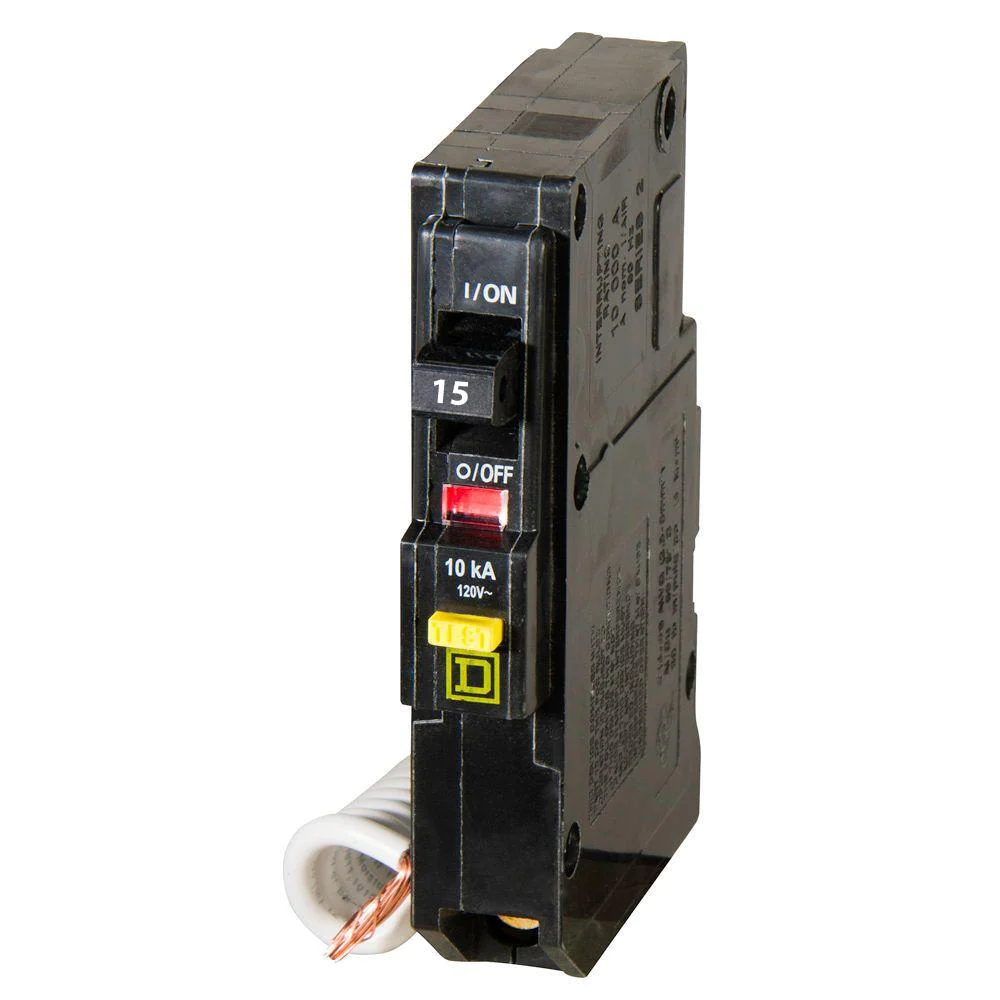

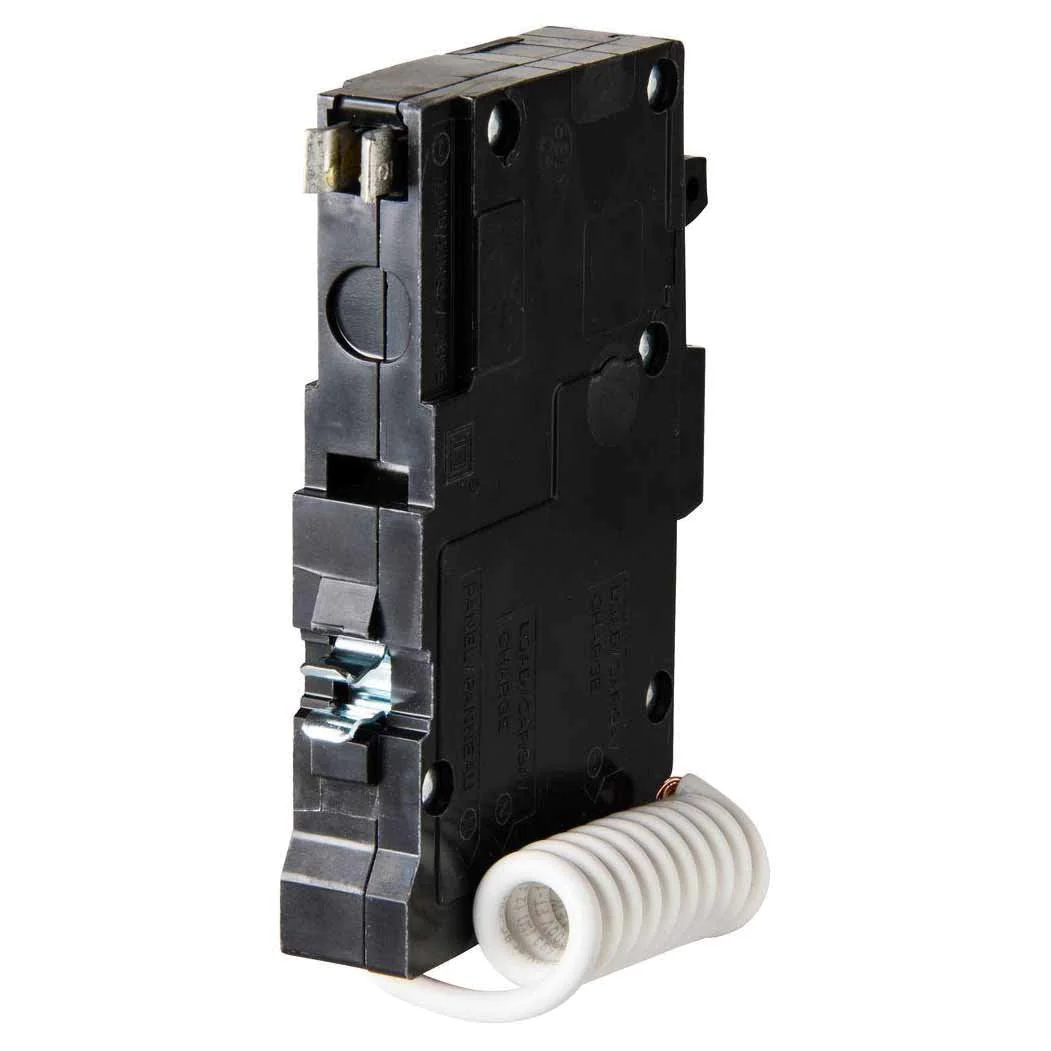

It is 1-Pole Ground fault miniature circuit breaker features thermal magnetic molded case for extra protection. Circuit breaker has current rating of 15 Amps voltage rating of 120 VAC and interrupt rating of 10 kilo-Amps. It offers effective class A ground fault overload and short circuit protection for added safety .
$50.99
| Number of Poles | 1 |
| Voltage Rating | 120 Volt AC |
| Current Rating | 15 Amp |
| Interrupting Rating | 10 Kiloamp |
| Trip Sensitivity | 6 Milliamp |
| Terminal Type | Pressure Plate |
| Wire Size | 12 to 8 AWG (Aluminum)- 14 to 8 AWG (Copper) |
| Mounting | Plug-In |
| Used On | Load Center |
| Size | 0.75 Inch Width x 2.91 Inch Depth x 4.12 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO® |
| Model | QO |
| Additional Information | RoHS Compliant- Ambient Temperature Rating 104 Deg F- Number of Panel Spaces 1 |
| Features/Benefits | Mercury-Free- Green Premium- RoHS Compliant |
