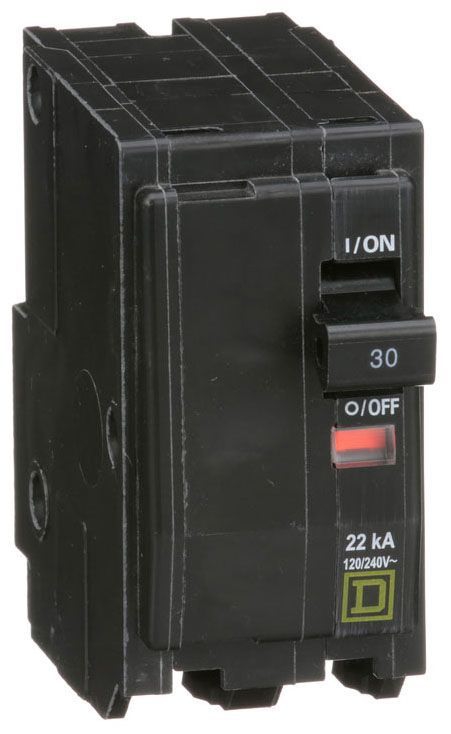

The Square D QO230VH is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240VAC, 48VDC. It has an interrupting rating of 22kA at 120/240VAC. The QO230VH has a plug-in mounting type and includes long time and instantaneous trip functions.
$84.99
| Type | Common Trip- Miniature- Standard |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz |
| Current Rating | 30 Amp |
| Interrupting Rating | 22 Kiloamp |
| Terminal Type | Pressure Plate |
| Wire Size | 14 to 8 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | QO Load Center- NQ/NQOD Panelboard/OEM Interior/Speed-D Switchboard Distribution Panel |
| Size | 1.5 Inch Width x 2.91 Inch Depth x 2.99 Inch Height |
| Approval | UL- CSA |
| Brand Name | QOâ„¢- Homelineâ„¢ |
| Model | QO |
| Additional Information | RoHS/REACH Compliant- Ambient Rating 104 Deg F- Tightening Torque Rating 40.71 Inch-Pound |
| Features/Benefits | QO Miniature Circuit Breakers are Plug-On Products for Use in QO Load Centers- NQOD/NQ Panelboards/OEM Interiors or Speed-D Switchboard Distribution Panels- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- Toxic Heavy Metal Free- HACR Rated- Green Premium Product |
