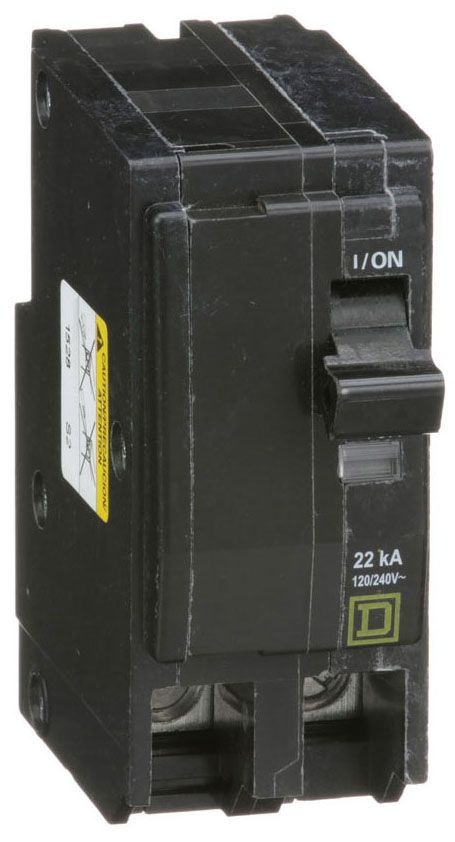

COMMON TRIP MINIATURE STANDARD TYPE 1.5 INCH WIDTH X 2.91 INCH DEPTH X 3.11 INCH HEIGHT SIZE QO LOAD CENTER NQ/NQOD PANELBOARD/OEM INTERIOR/SPEED-D SWITCHBOARD DISTRIBUTION PANEL USED ON 8 TO 2 AWG (COPPER/ALUMINUM) WIRE SIZE UL CSA APPROVAL 120/240 VOLT AC 50/60 HERTZ VOLTAGE RATING PLUG-IN MOUNTING 22 KILOAMP INTERRUPTING RATING 70 AMP CURRENT RATING 2 POLE(S) BOX LUG TERMINAL TYPE QO[TM] HOMELINE[TM] BRAND ROHS/REACH COMPLIANT AMBIENT RATING 104 DEG F TIGHTENING TORQUE RATING 44.25 INCH-POUND QO MODEL
$109.99
| Type | Common Trip- Miniature- Standard |
| Number of Poles | 2 |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz |
| Current Rating | 70 Amp |
| Interrupting Rating | 22 Kiloamp |
| Terminal Type | Box Lug |
| Wire Size | 8 to 2 AWG (Copper/Aluminum) |
| Mounting | Plug-In |
| Used On | QO Load Center- NQ/NQOD Panelboard/OEM Interior/Speed-D Switchboard Distribution Panel |
| Size | 1.5 Inch Width x 2.91 Inch Depth x 3.11 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO™- Homeline™ |
| Model | QO |
| Additional Information | RoHS/REACH Compliant- Ambient Rating 104 Deg F- Tightening Torque Rating 44.25 Inch-Pound |
| Features/Benefits | QO Miniature Circuit Breakers are Plug-On Products for Use in QO Load Centers- NQOD/NQ Panelboards/OEM Interiors or Speed-D Switchboard Distribution Panels- RoHS/REACH Compliant- Mercury-Free- Halogen-Free- HACR Rated- Green Premium Product |
