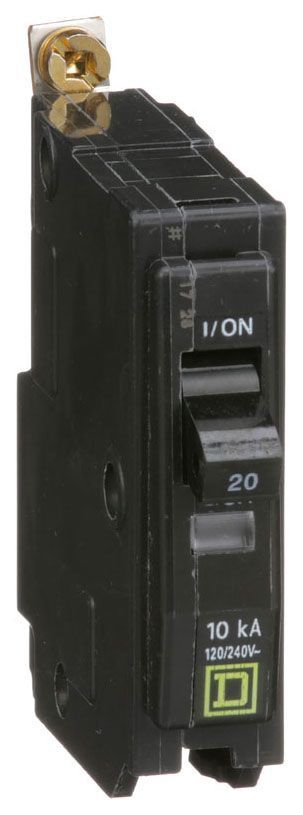

Square D molded case circuit breaker Its Compact and Easy to Install One Pole and One Phase with Long Time and Instantaneous Functions Circuit Breaker. Circuit Breaker Standard Interrupting Voltage Rating of 120/240 VAC AT 50/60 HZ (UL/CSA) 48 VDC and 20 ampere With Built in Bolt On Connection Thermal Magnetic Protection Molded Case Circuit Breakers.
$6.99 – $13.75
| Type | Miniature |
| Number of Poles | 1 |
| Voltage Rating | 120/240 Volt AC at 50/60 Hertz- 48 Volt DC |
| Current Rating | 20 Amp |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC- 5 Kiloamp at 48 Volt DC |
| Terminal Type | Pressure Plate |
| Wire Size | 14 to 8 AWG (Copper/Aluminum) |
| Mounting | Bolt-ON |
| Used On | NQ Series Panelboard |
| Size | 0.75 Inch Width x 2.91 Inch Depth x 3 Inch Height |
| Approval | UL- CSA |
| Brand Name | QO® |
| Additional Information | RoHS Compliant- Temperature Rating 104 Deg F |
| Features/Benefits | HACR and Switching Duty Rated- Mercury-Free- Toxic Heavy Metal-Free- Green Premium- RoHS/Reach Compliant- Made in USA |
