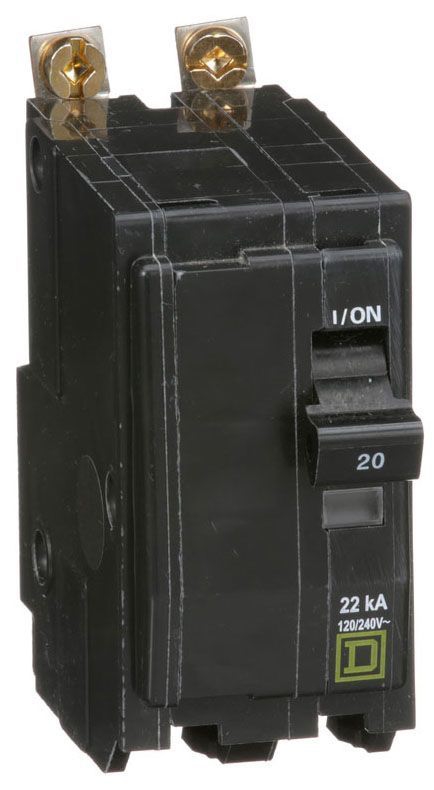

Square D QOB series molded case circuit breaker double pole single phase ampere rating 20-amps voltage rating 240v with standard interrupting rating of 22 kiloampere bolt-on mounting used on nq panelboards.
Price range: $35.99 through $69.99
| Type | Miniature- Standard |
| Voltage Rating | 240 Volt AC 50/60 Hertz |
| Current Rating | 20 Amp |
| Number of Poles | 2 |
| Interrupting Rating | 22 Kiloamp at 240 Volt AC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QOâ„¢ |
| Model | QOB-VH |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 1.5 Inch Width x 2.91 Inch Depth x 2.99 Inch Height- Frame Type Q- Terminal Type Pressure Plate- Terminal Wire Size 14 to 8 AWG (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Toxic Heavy Metal Free- Green Premium Product |
No reviews found.
