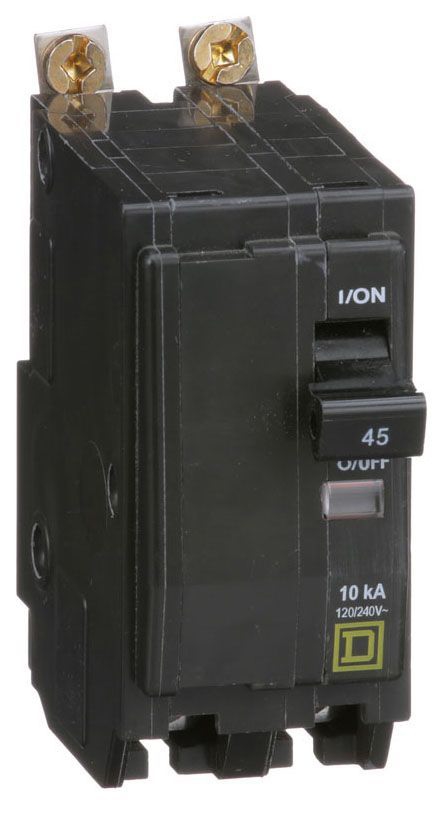

Schneider Electrric QOB series double pole single phase 45 ampere bolt-on molded case circuit breaker with maximum voltage rating of 120V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 120V (LI) long-time and instantaneous trip functions suitable for QOB Series load centers.
$39.99
| Type | Miniature- Standard |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 45 Amp |
| Number of Poles | 2 |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC- 5 Kiloamp at 48 Volt DC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOB |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 1.5 Inch Width x 2.91 Inch Depth x 2.99 Inch Height- Frame Type Q- Terminal Type Box Lug- Terminal Wire Size 8 to 2 AWG (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Toxic Heavy Metal Free- Green Premium Product |
No reviews found.
