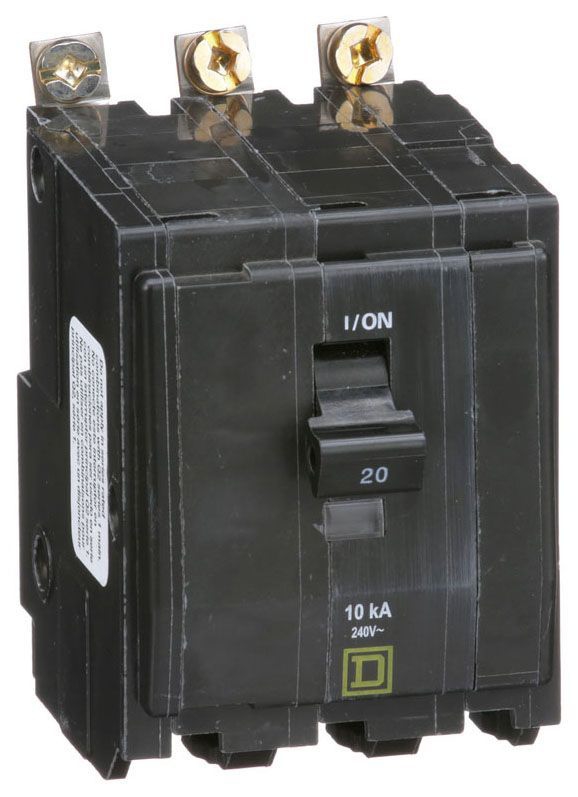

Square D Bolt-On Circuit Breaker 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 20 Amps and short-circuit current rating of 10 kilo-Amps. Circuit breaker has interrupting current rating of 5 kilo-Amps at 48 VDC. The 3-Phase circuit breaker has three-spaces and mounting bolts to hold the breaker in place.
$87.99
| Type | Miniature- Standard |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 20 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC- 5 Kiloamp at 48 Volt DC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOB |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 2.24 Inch Width x 2.91 Inch Depth x 2.99 Inch Height- Frame Type Q- Terminal Type Pressure Plate- Terminal Wire Size 14 to 8 AWG (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Toxic Heavy Metal Free- Green Premium Product |
