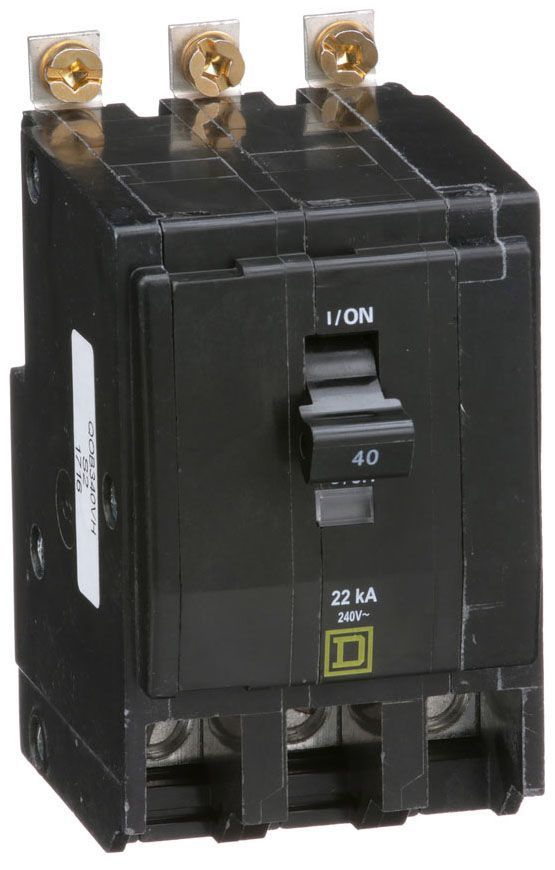

Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 40 Amps and interrupting rating of 22 kilo-Amps. The 3-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 8 - 2 AWG.
$158.99
| Type | Miniature- Standard |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 40 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 22 Kiloamp at 120/240 Volt AC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOB-VH |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 1.5 Inch Width x 2.91 Inch Depth x 3.11 Inch Height- Frame Type Q- Terminal Type Box Lug- Terminal Wire Size 8 to 2 AWG (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Green Premium Product |
No reviews found.
