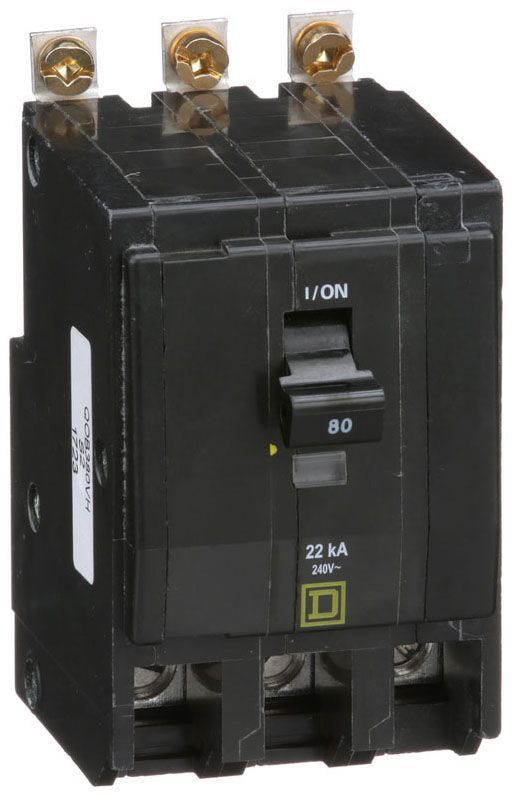

The Square D QOB380VH is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 240V. It has an interrupting rating of 22kA at 120/240VAC. The QOB380VH has a bolt-on connection type and includes LI - long time and instantaneous functions.
$254.99
| Type | Miniature- Standard |
| Voltage Rating | 120/240 Volt AC 50/60 Hertz- 48 Volt DC |
| Current Rating | 80 Amp |
| Number of Poles | 3 |
| Interrupting Rating | 22 Kiloamp at 120/240 Volt AC |
| Installation | Bolt-ON |
| Used On | NQ Panelboard |
| Approval | UL- CSA |
| Brand Name | QO™ |
| Model | QOB-VH |
| Additional Information | RoHS/REACH Compliant- Overall Dimension 2.24 Inch Width x 2.91 Inch Depth x 3.5 Inch Height- Frame Type Q- Terminal Type Box Lug- Terminal Wire Size 4 to 2/0 AWG (Copper/Aluminum)- Ambient Temperature Rating 104 Deg F |
| Features/Benefits | HACR Rated- RoHS/REACH Compliant- Halogen-Free- Mercury-Free- Green Premium Product |
